Police and Base

Fuse 6 - is supplied power by 60 Amp Ignition Switch Blower Motor Maxi-Fuse:

Fuse 6 - protects the following circuits:
- Instrument Panel Illumination
- Lamp Out Warning Module
- LCD Dimming Relay
- Left Cargo Lamp Assembly
- Left Door Lock Switch
- Left Rear Window Control Switch
- Liftgate Defrost/Wiper/Washer Control
- Liftgate Wiper Motor
- Liftgate Wiper/Washer Control
- Main Light Switch
- Master Window Control Switch
- Police Accessory Relay
- Right Door Lock Switch
- Right Front Window Control Switch
- Right Rear Window Control Switch
- Right Cargo Lamp Assembly
- Speed Control Amplifier
- Warning Chime Module

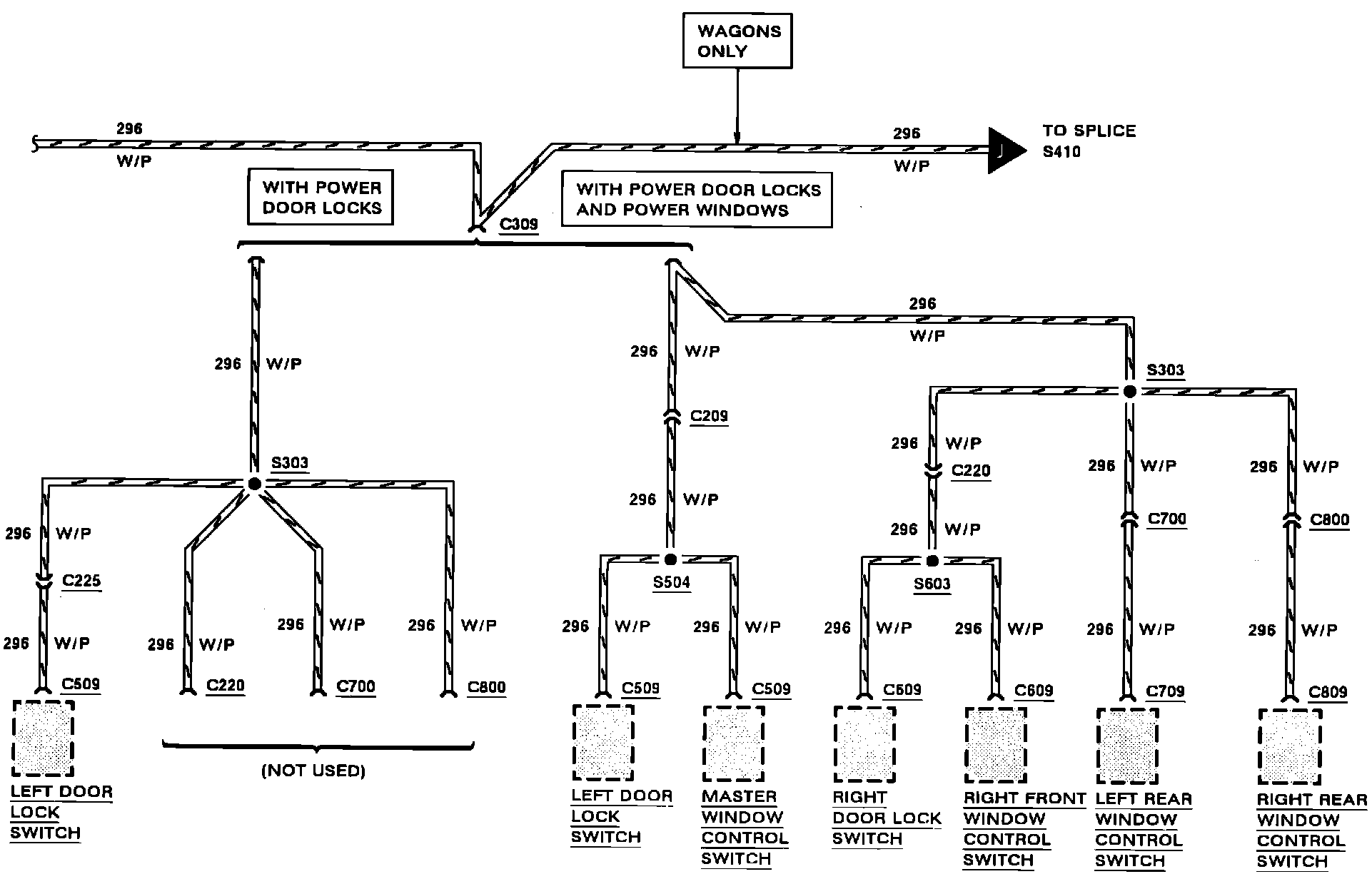

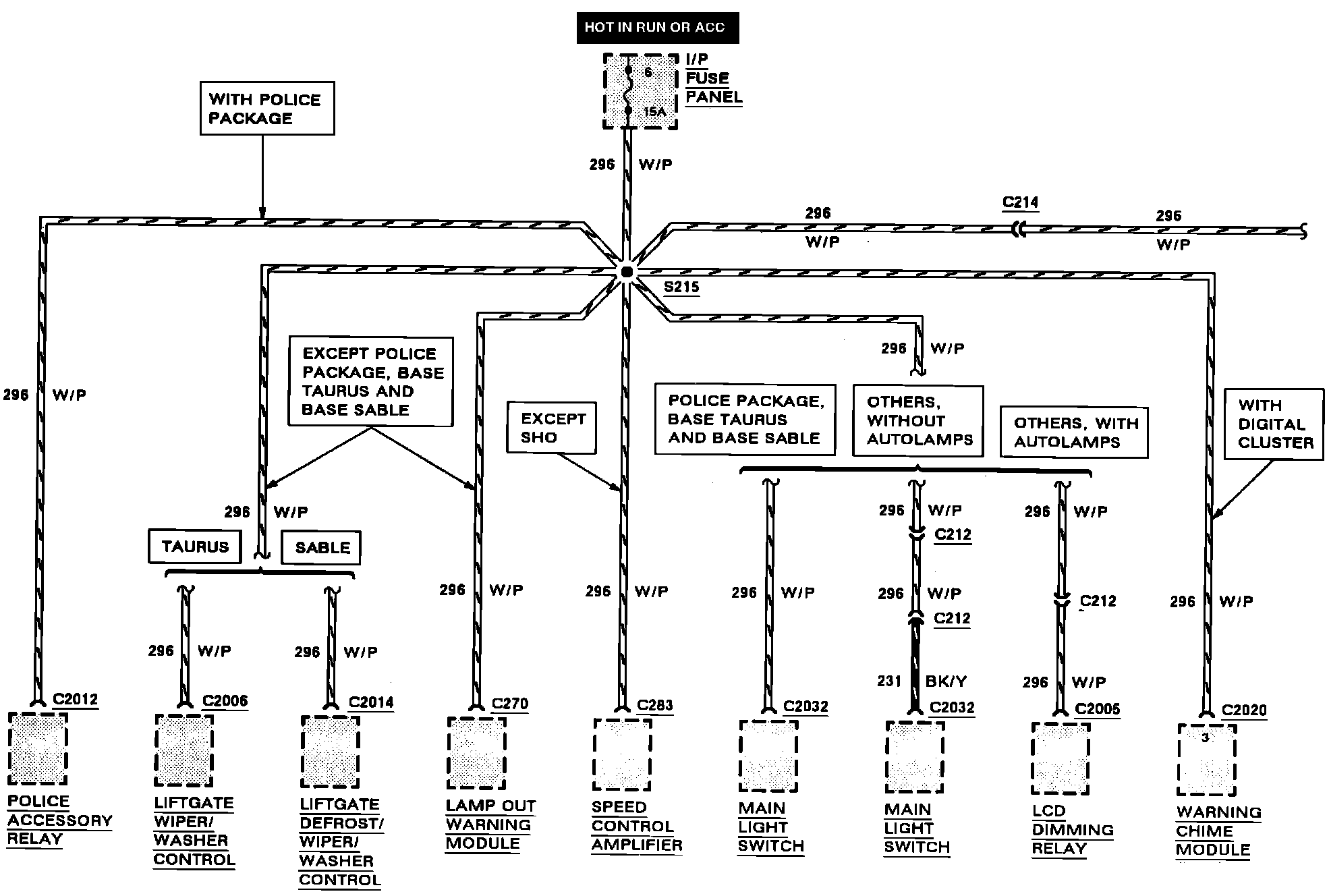

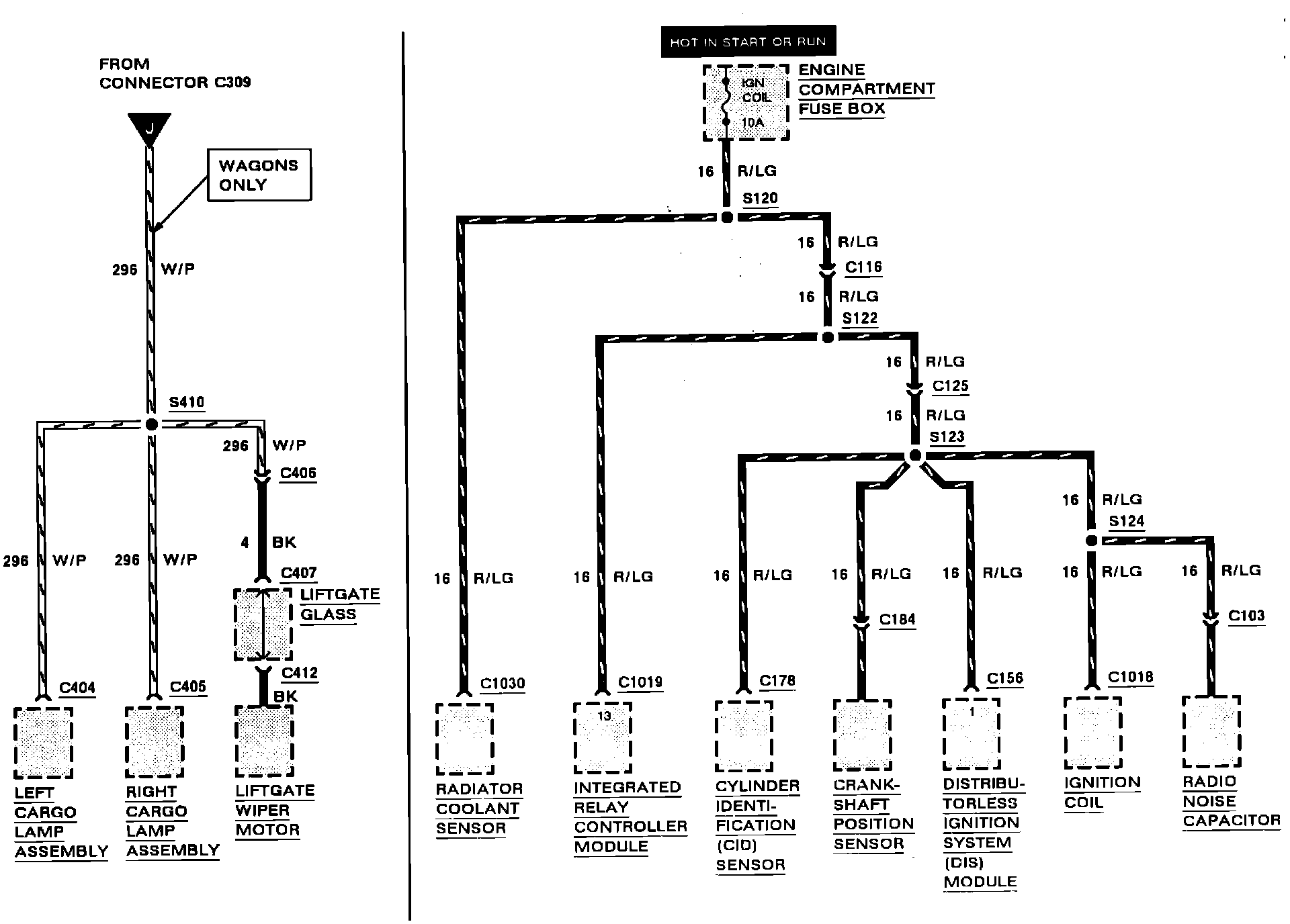

Power Distribution:
