Power Steering Pressure Control Valve: Service and Repair



Steering Gear Actuator

Removal

1. Remove air inlet duct for access to actuator.

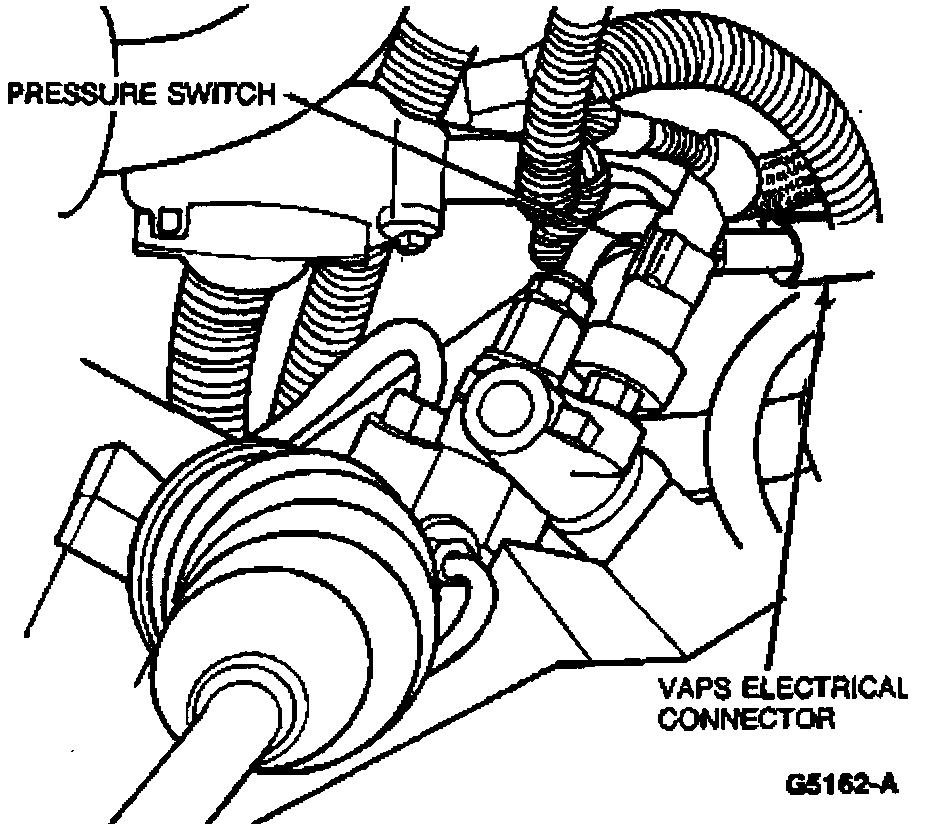

2. Disconnect VAPS electrical connector from actuator.
3. Disconnect pressure switch.
4. Remove two actuator-to-steering gear retaining bolts.
5. Lift actuator from gear assembly.

Installation






1. Align actuator on steering gear.

Note: Ensure that the two seals (between the actuator and gear assembly) are in place when setting the actuator on the gear assembly.

2. Install two actuator-to-steering gear retaining bolts.
Tighten to 27-34 Nm (20-25 ft lbs.)
3. Reconnect pressure switch and VAPS electrical connector.
4. Install the air inlet duct.
