EEC-IV Processor - Connector Pin Chart Revised

Article No.
92-18B-10

09/04/92

POWERTRAIN CONTROL/EMISSIONS DIAGNOSIS MANUAL - 1992 - PAGE 3A-33 - EEC-IV PROCESSOR CONNECTOR PIN USAGE CHART - PIN 39 IDENTIFICATION REVISED

FORD:
1992 TEMPO

LINCOLN-MERCURY:
1992 TOPAZ








ISSUE:
The identification for Pin 39, shown in the EEC-IV Processor Connector Pin Usage Chart in the 1992 Powertrain Control/Emissions Diagnosis Manual, is incorrect. Page 3A-33 is affected.

ACTION:

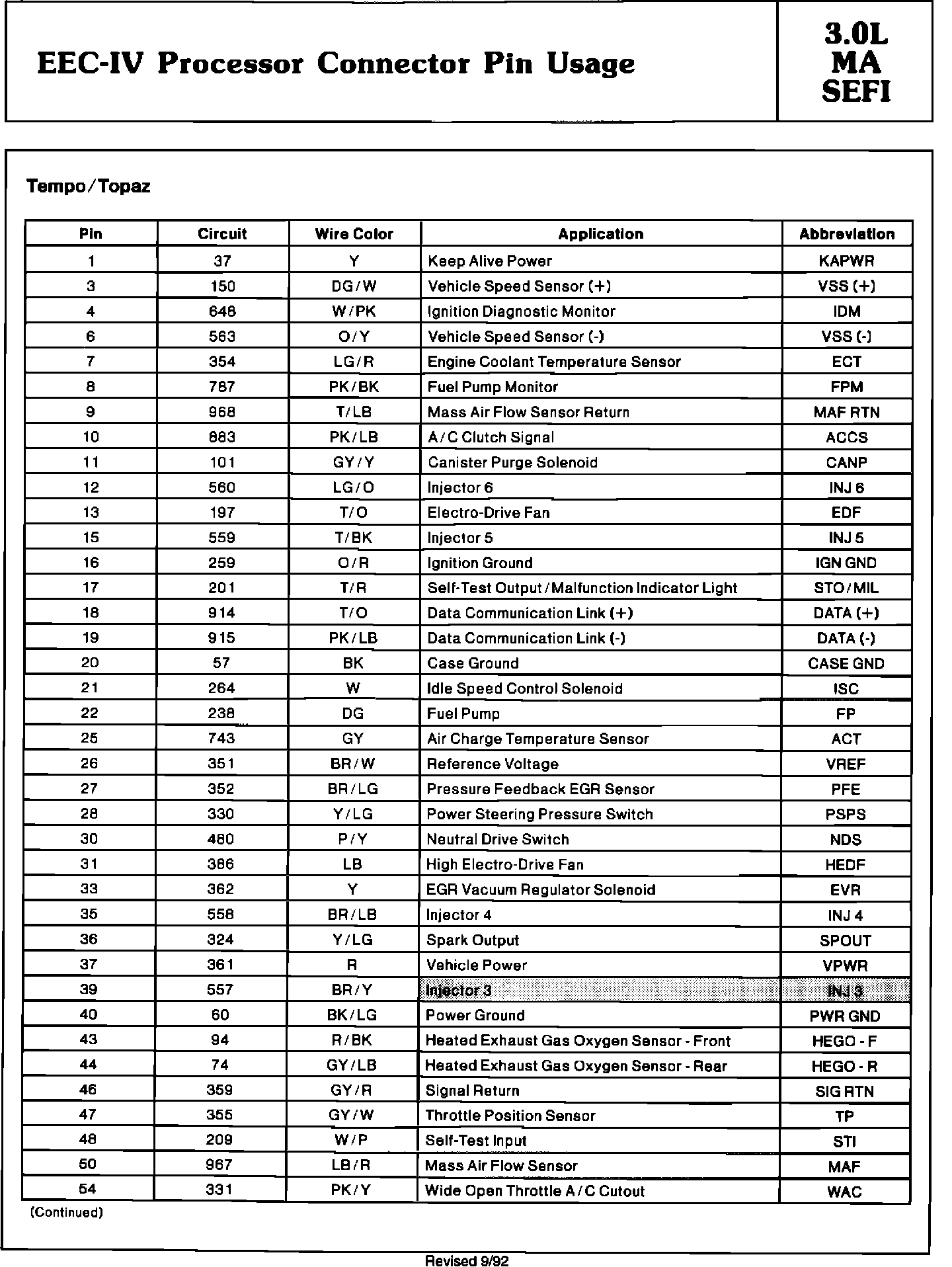

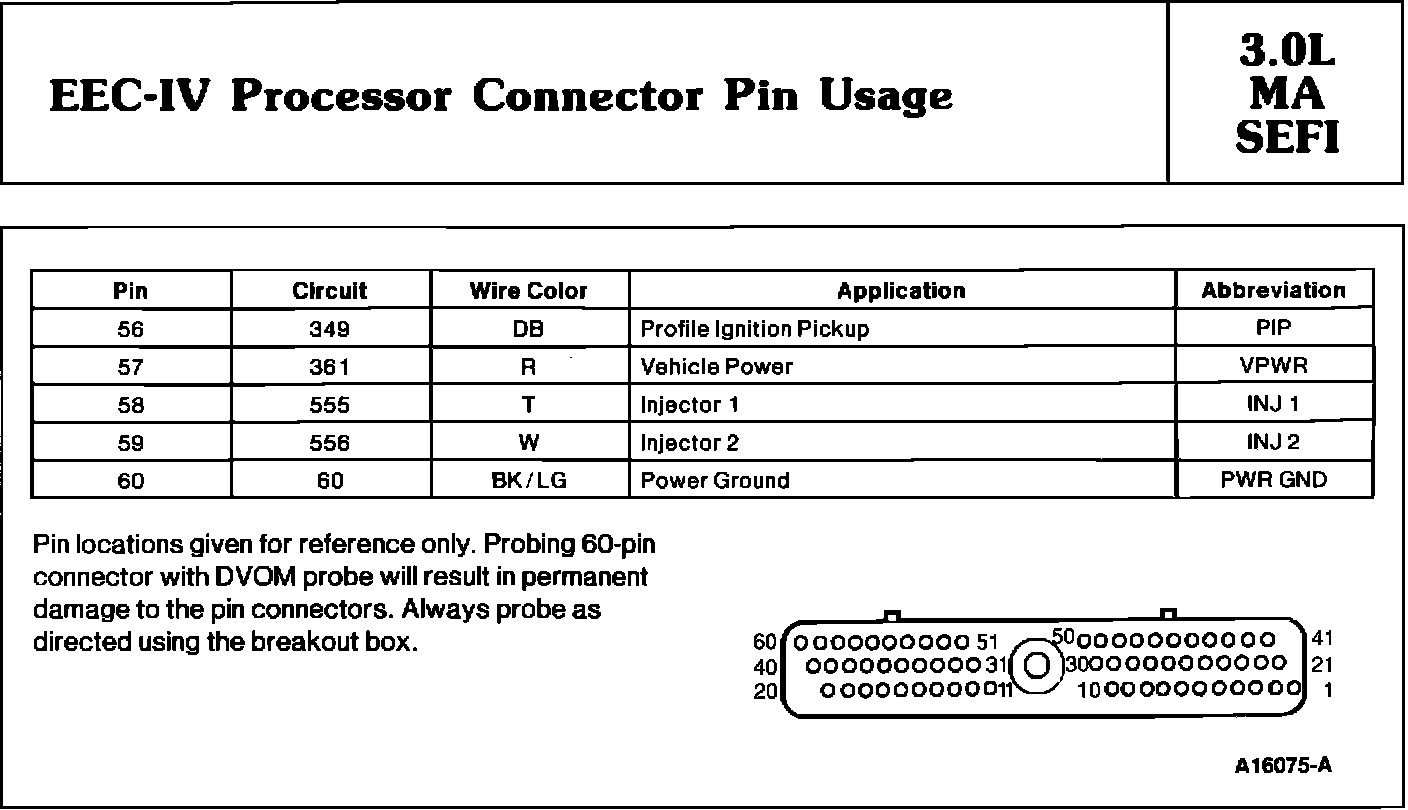

Refer to the pages in this TSB article for the revised information.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 690000
