Part 2 of 2

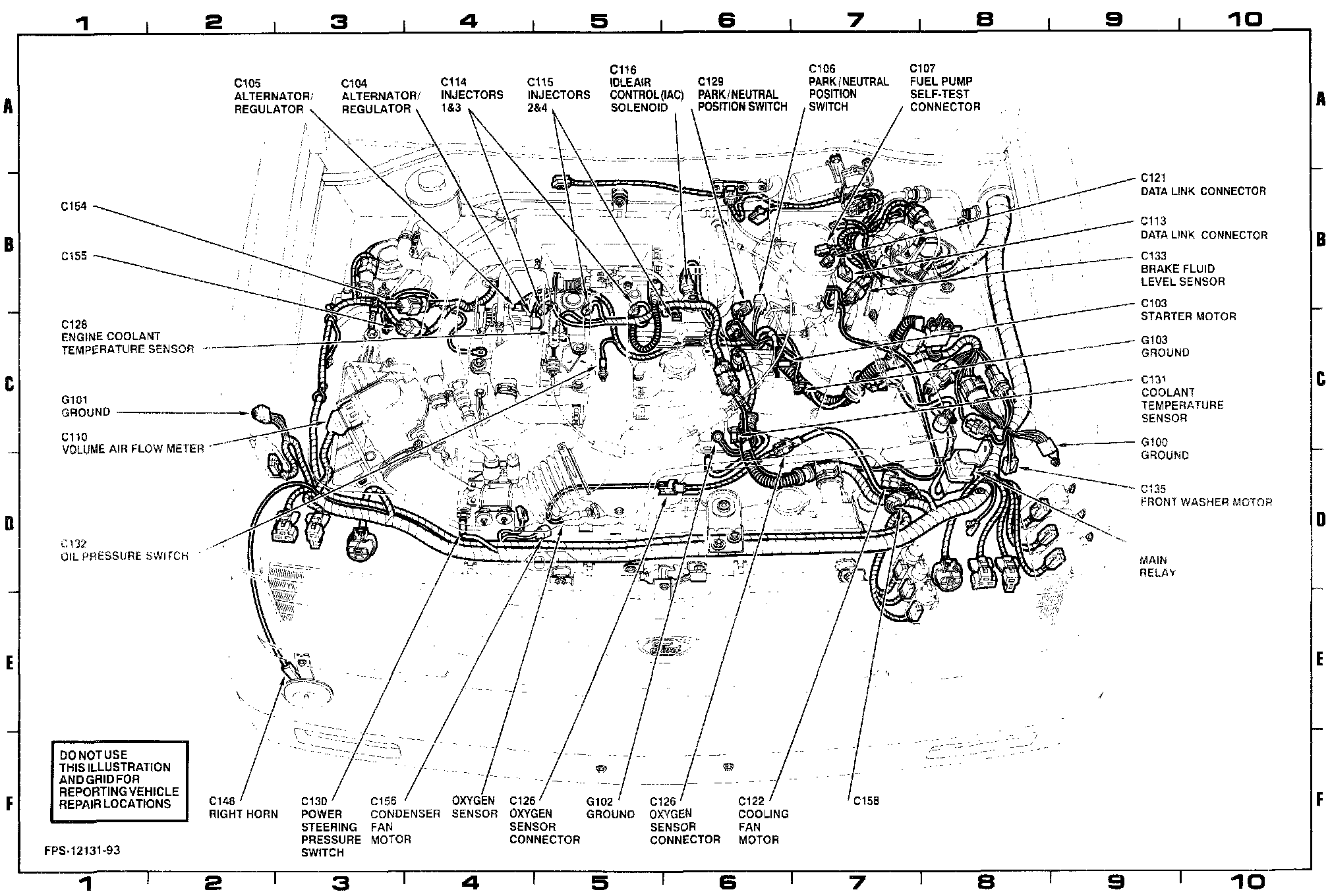

Engine Compartment Component Locations:







ALTERNATOR
BRAKE FLUID LEVEL SENSOR
CONDENSER FAN MOTOR
COOLANT TEMPERATURE SENSOR
COOLING FAN MOTOR
DATA LINK CONNECTOR
ENGINE COOLANT TEMPERATURE SENSOR
FRONT WASHER MOTOR
FUEL PUMP SELF-TEST CONNECTOR
GROUND
GROUND
IDLE AIR CONTROL (IAC) SOLENOID
INJECTORS 1 & 3
INJECTORS 2 & 4
MAIN RELAY
OIL PRESSURE SWITCH
OXYGEN SENSOR
OXYGEN SENSOR CONNECTOR
PARK/NEUTRAL POSITION SWITCH
POWER STEERING PRESSURE SWITCH
REGULATOR
RIGHT HORN
STARTER MOTOR
VOLUME AIR FLOW METER
