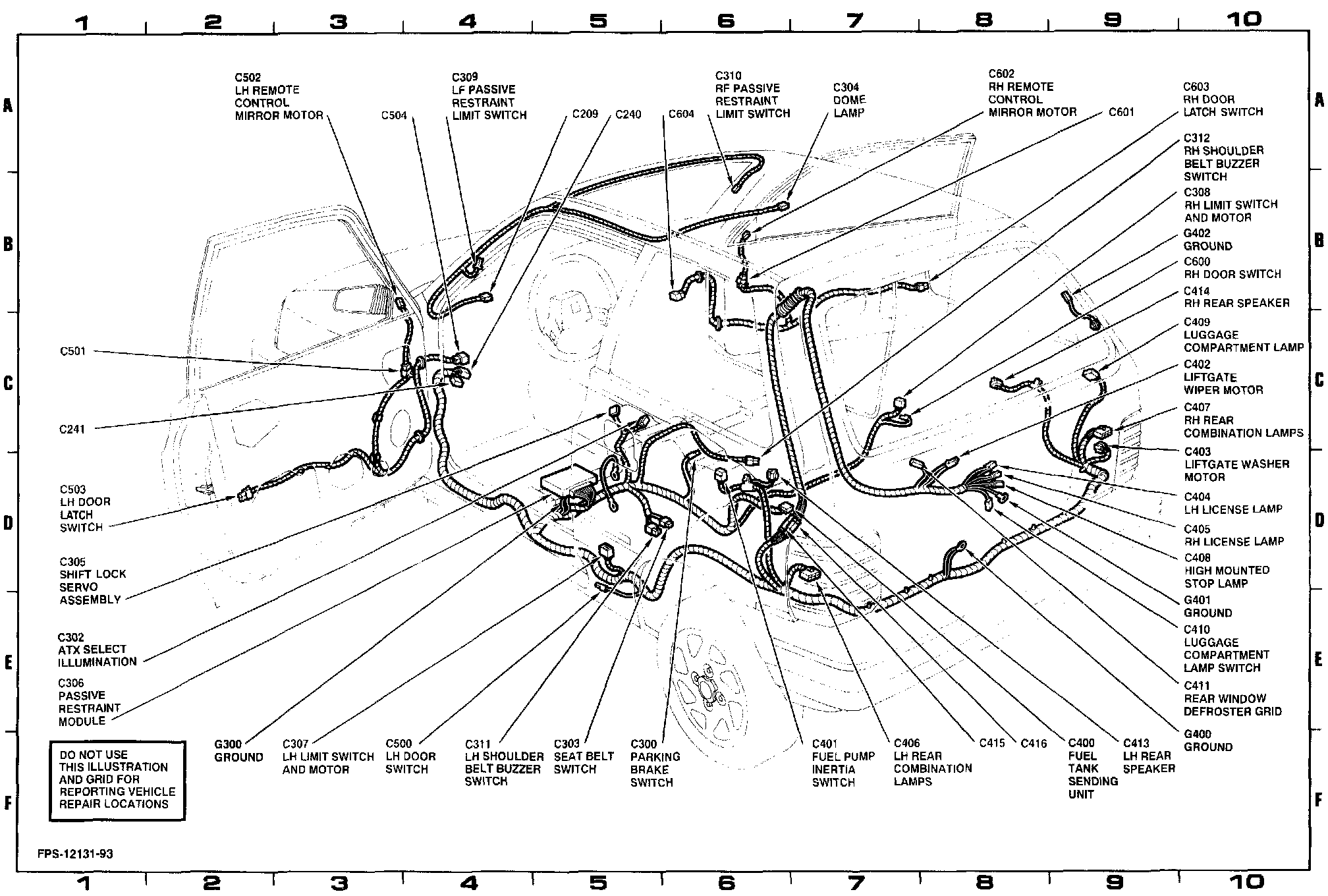

Full Body Views

Full Body Component Locations:

ATX SELECT ILLUMINATION
DOME LAMP
FUEL PUMP INERTIA SWITCH
FUEL TANK SENDING UNIT
GROUND
HIGH MOUNTED STOP LAMP
LF PASSIVE RESTRAINT LIMIT SWITCH
LH DOOR LATCH SWITCH
LH DOOR SWITCH
LH LICENSE LAMP
LH LIMIT SWITCH AND MOTOR
LH REAR COMBINATION LAMPS
LH REAR SPEAKER
LH REMOTE CONTROL MIRROR MOTOR
LH SHOULDER BELT BUZZER SWITCH
LIFTGATE WASHER MOTOR
LIFTGATE WIPER MOTOR
LUGGAGE COMPARTMENT LAMP
LUGGAGE COMPARTMENT LAMP SWITCH
PARKING BRAKE SWITCH
PASSIVE RESTRAINT MODULE
REAR WINDOW DEFROSTER GRID
RF PASSIVE RESTRAINT LIMIT SWITCH
RH DOOR LATCH SWITCH
RH DOOR SWITCH
RH LICENSE LAMP
RH LIMIT SWITCH AND MOTOR
RH REAR COMBINATION LAMPS
RH REAR SPEAKER
RH REMOTE CONTROL MIRROR MOTOR
RH SHOULDER BELT BUZZER SWITCH
SEAT BELT SWITCH
SHIFT LOCK SERVO ASSEMBLY
