Transmission Position Sensor/Switch: Service and Repair



Park/Neutral Position (PNP) Switch

Removal

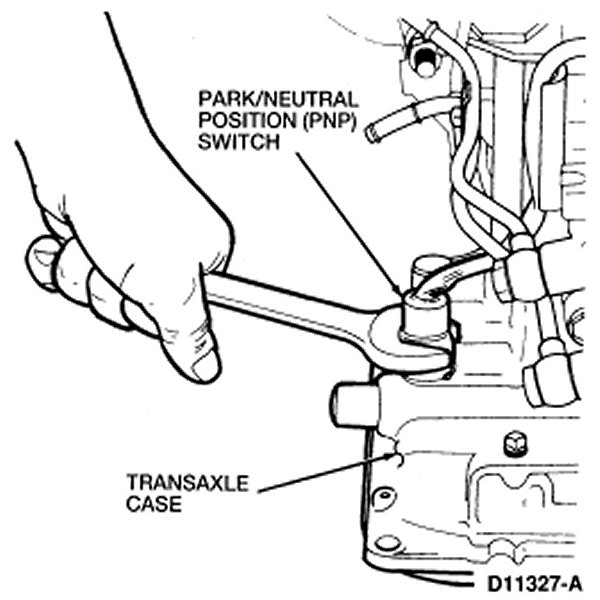

1. Use an open-end wrench to remove the PNP switch from the transaxle case.

Park/Neutral Position (PNP) Switch:







2. Disconnect the PNP switch electrical connector and remove the PNP switch.

Installation

1. Apply Sealant E1FZ-19562-A or equivalent to the threads of the PNP switch.

2. Install the PNP switch onto the transaxle case. Tight the PNP switch to 19-26 Nm (14-19 ft.lbs).

3. Connect the PNP switch electrical connector.
