Engine - Ignition Timing Revisions

Article No.
93-19B-9

09/29/93

POWERTRAIN CONTROL/EMISSIONS DIAGNOSIS MANUAL (NON-NAAO) - 1993 - PAGES 8B-20 AND 8B-21-1.3L BASE TIMING TEST INFORMATION/ILLUSTRATIONS REVISED

FORD:
1993 FESTIVA














ISSUE:

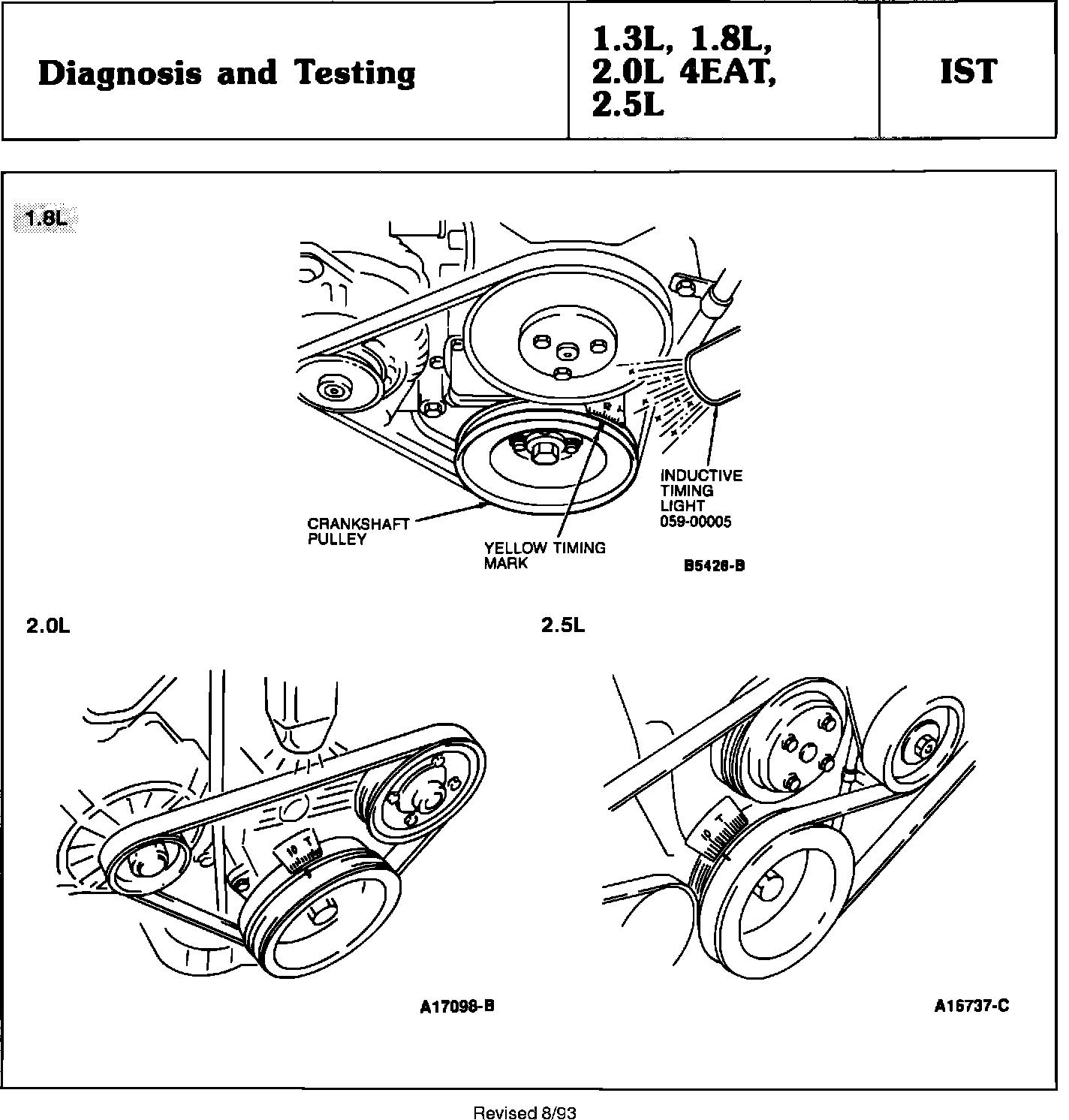

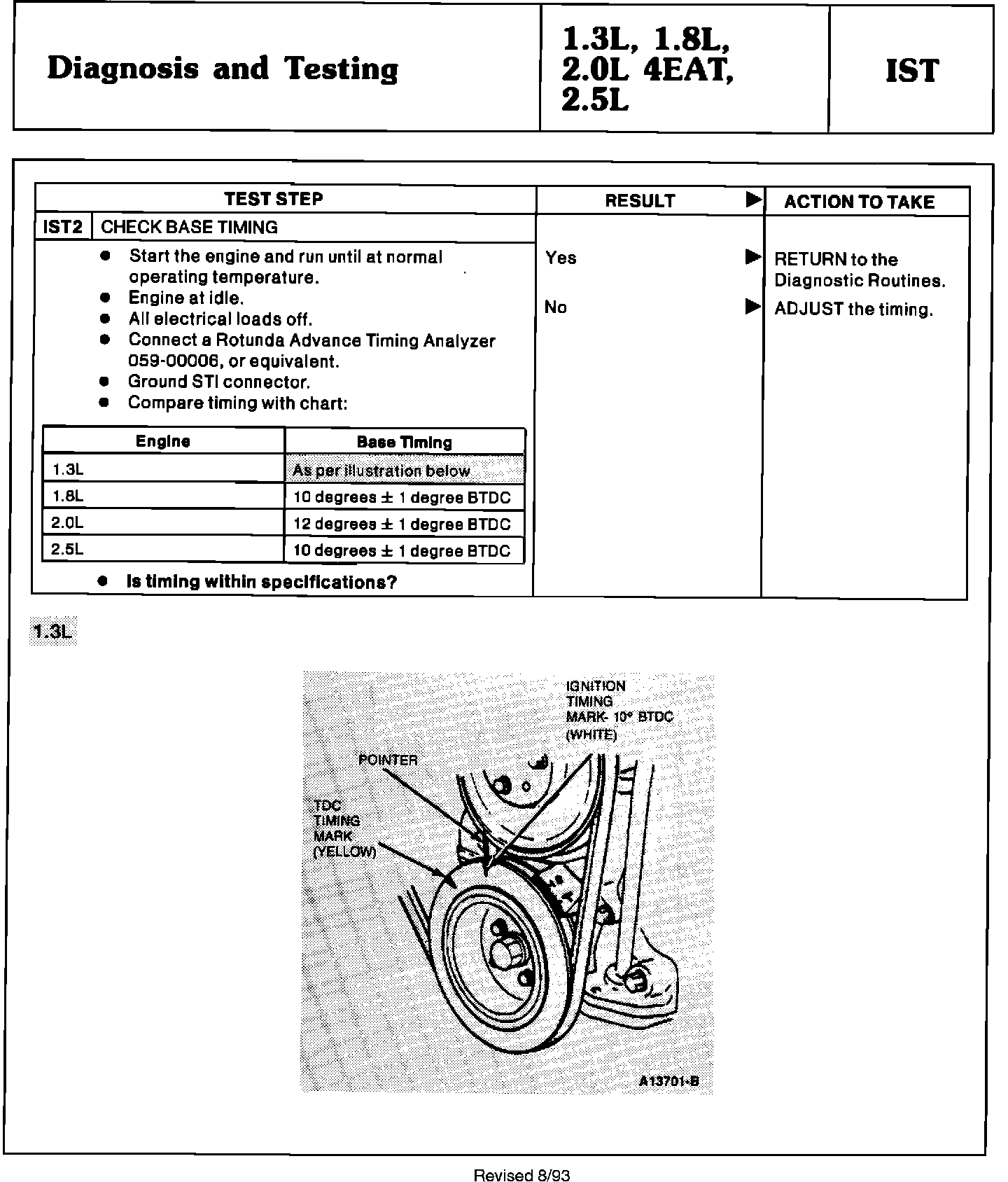

1.3L engine base timing information requires revision, and an illustration for 1.3L engine base timing must be added. Also, the illustration showing 1.3L and 1.8L engine base timing requires revision to apply to 1.8L only. Pages 8B-20 and 8B-21 of the 1993 Powertrain Control/Emissions Diagnosis Manual (non-NAAO) are affected.

ACTION:

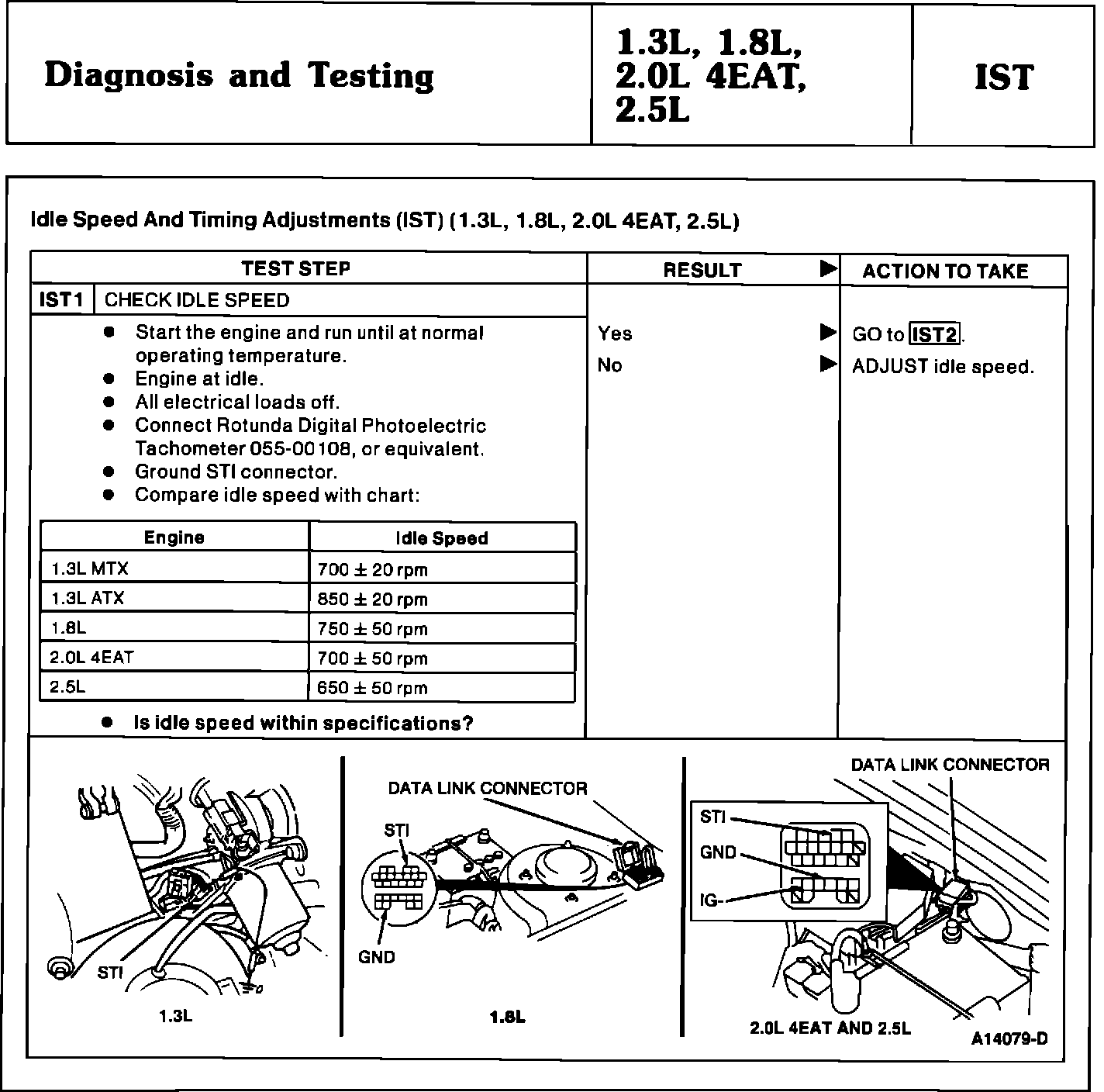

Refer to the pages in this TSB article for the revised information.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 690000
