Part 1 of 2

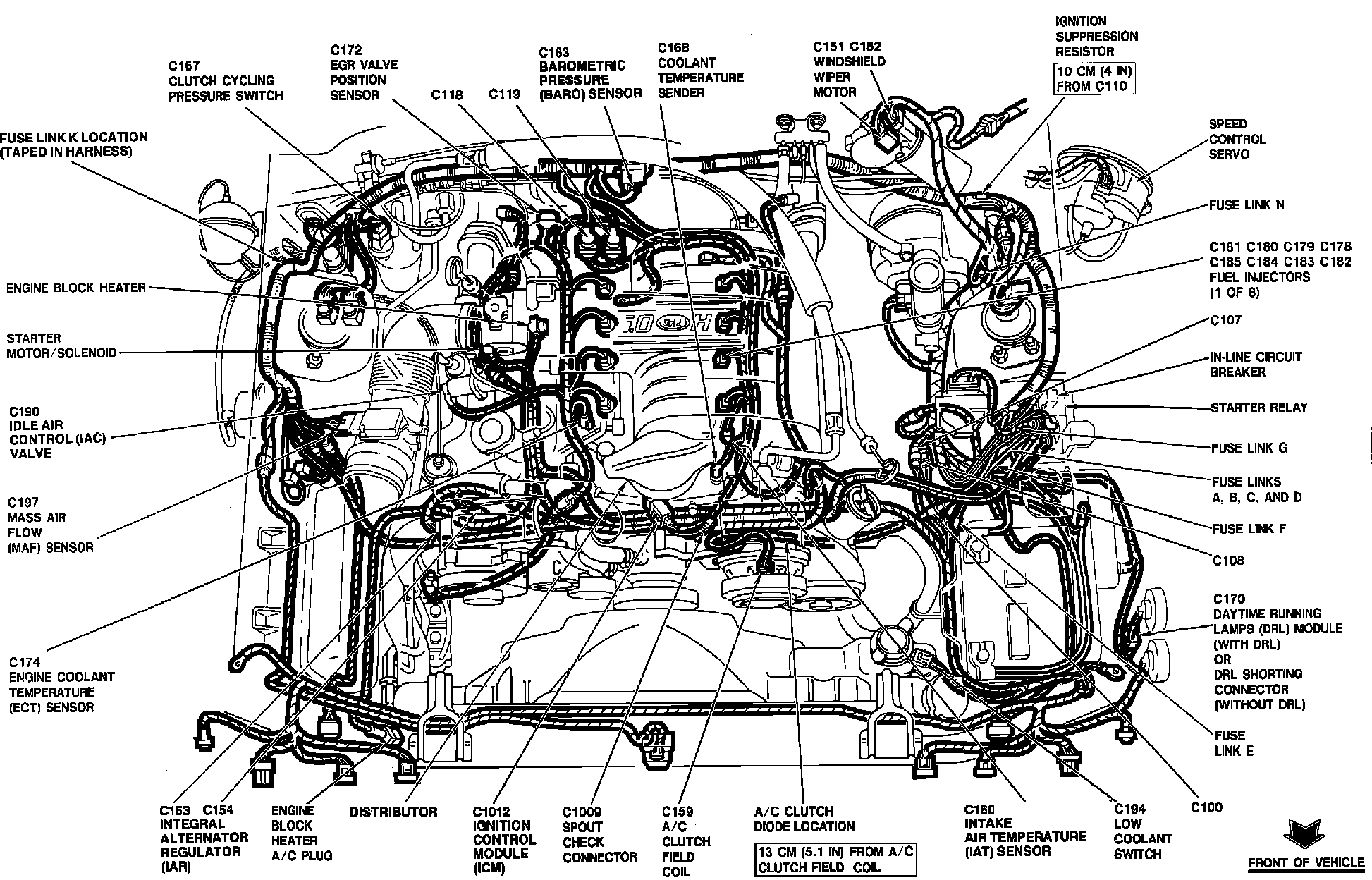

Component Locations:

A/C CLUTCH DIODE LOCATION
A/C CLUTCH FIELD COIL
BAROMETRIC PRESSURE (BARO) SENSOR
CLUTCH CYCLING PRESSURE SWITCH
COOLANT TEMPERATURE SENDER
DAYTIME RUNNING LAMPS (DRL) MODULE (WITH DRL)
DISTRIBUTOR
DRL SHORTING CONNECTOR (WITHOUT DRL)
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
ENGINE BLOCK HEATER
ENGINE BLOCK HEATER A/C PLUG
FUEL INJECTORS
FUSE LINK E
FUSE LINK F
FUSE LINK G
FUSE LINK K LOCATION (TAPED IN HARNESS)
FUSE LINK N
FUSE LINKS A, B, C, AND D
IDLE AIR CONTROL (IAC) VALVE
IGNITION CONTROL MODULE (ICM)
IGNITION SUPPRESSION RESISTOR
IN-LINE CIRCUIT BREAKER
INTAKE AIR TEMPERATURE (IAT) SENSOR
INTEGRAL ALTERNATOR REGULATOR (IAR)
LOW COOLANT SWITCH
MASS AIR FLOW (MAF) SENSOR
SPEED CONTROL SERVO
SPOUT CHECK CONNECTOR
STARTER MOTOR/SOLENOID
STARTER RELAY
WINDSHIELD WIPER MOTOR
