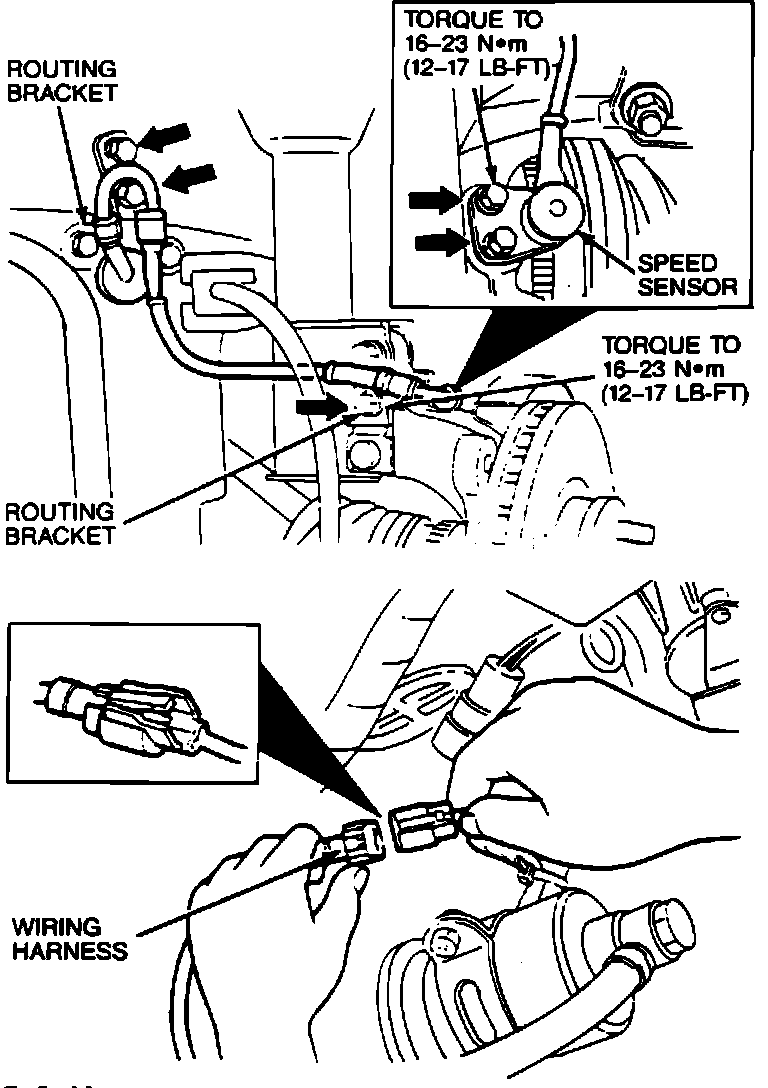

Front Wheel Speed Sensor Installation:

1. Remove wheel and tire assembly.
2. Remove retaining bolt and speed sensor from knuckle.
3. Remove routing bracket from strut assembly.
4. Remove routing bracket from inner fenderwell, then the interior panels as necessary to gain access to wiring harness
5. Disconnect wiring harness, then remove speed sensor.
6. Reverse procedure to install, noting the following:
a. Left and right speed sensors are not interchangeable.
b. Torque routing bracket nut and speed sensor bolt to to 12-17 ft. lbs.
