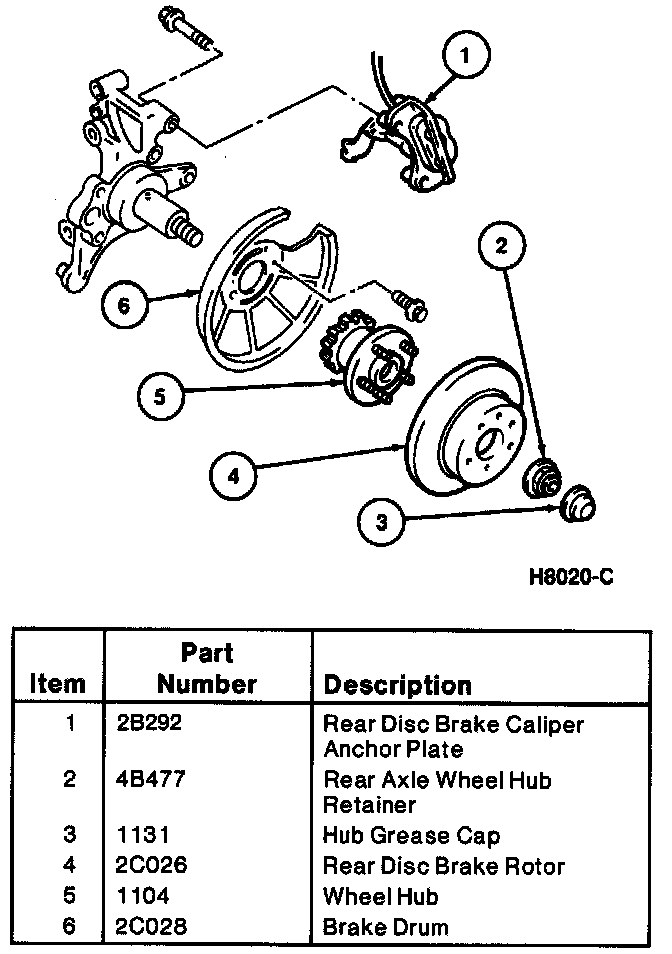

Removal

1. Remove the wheel.

Rear Axle Hub Retainer:





NOTE: When loosening the rear axle wheel hub retainer, lock the wheel hub by applying the brakes.

2. Using a cape chisel, unstake, remove and discard the rear axle wheel hub retainer.

Rear Caliper Anchor Plate Assembly:





3. Remove the two rear disc brake caliper anchor plate attaching bolts. Remove the rear disc brake caliper and rear disc brake caliper anchor plate assembly. Support the rear disc brake caliper by a wire strung from the rear shock absorber. Do not disconnect the rear wheel brake hose from the rear disc brake caliper.
4. Remove the rear disc brake rotor.
