Clutch Switch: Service and Repair

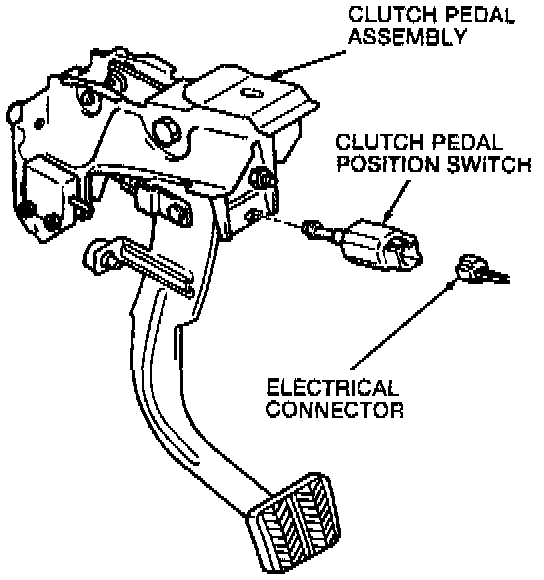

Fig. 109 Clutch Pedal Position Switch Replacement:
1.
Disconnect battery ground cable.
2.
Disconnect electrical connector from back of switch,
Fig. 109. 3.
Rotate switch 90 degrees in either direction and remove it from mounting bracket.
4.
Reverse procedure to install.
