Part 1 of 4

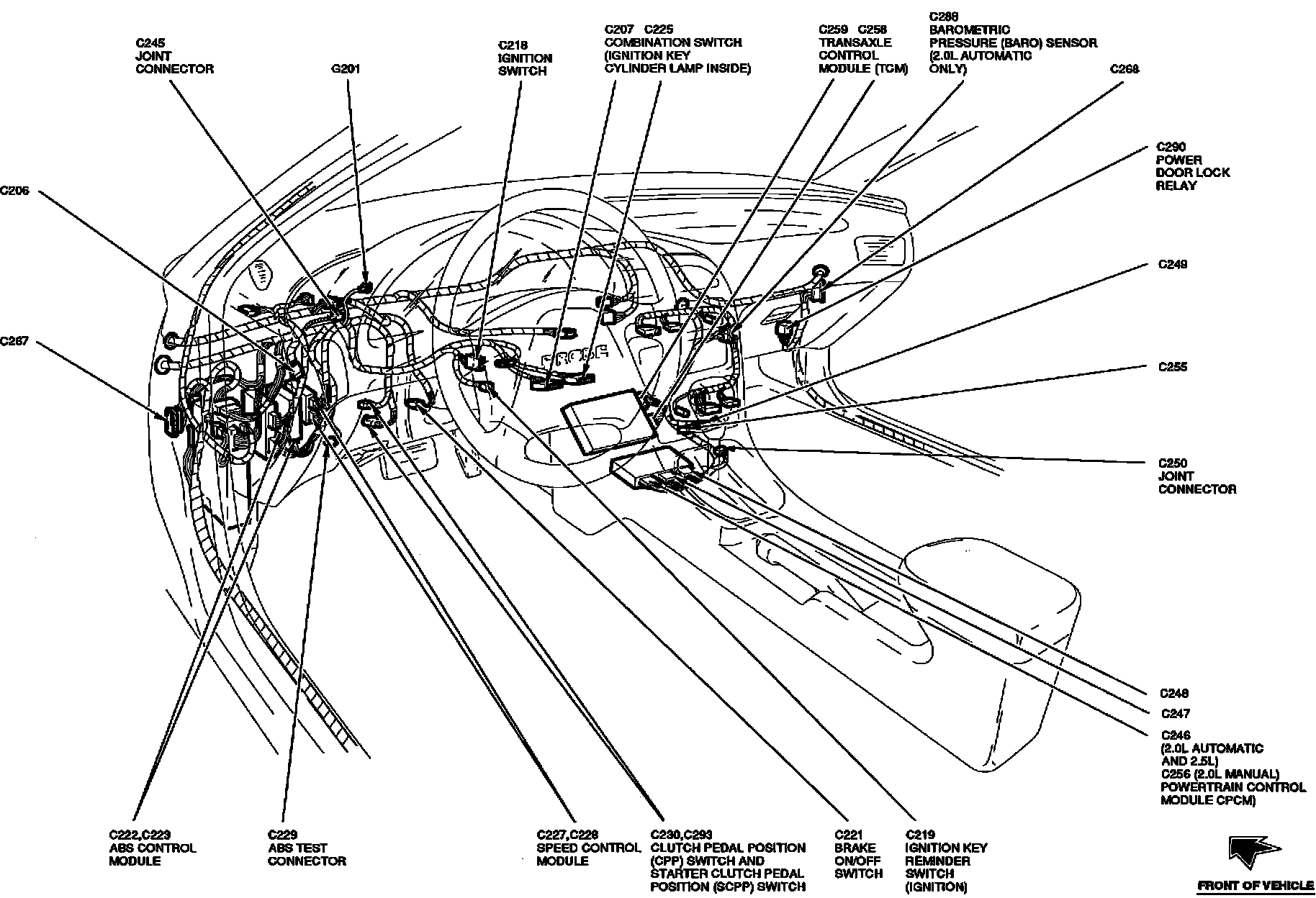

Component Locations:
ABS CONTROL MODULE
ABS TEST CONNECTOR
BRAKE 0N/0FF SWITCH
CLUTCH PEDAL POSITION (CPP) SWITCH AND STARTER CLUTCH PEDAL POSITION (SCPP) SWITCH
COMBINATION SWITCH (IGNITION KEY CYLINDER LAMP INSIDE)
IGNITION KEY REMINDER SWITCH (IGNITION)
IGNITION SWITCH
JOINT CONNECTOR
POWER DOOR LOCK RELAY
POWERTRAIN CONTROL MODULE (PCM)
SPEED CONTROL MODULE
TRANSAXLE CONTROL MODULE (TCM)
