Part 1 of 2

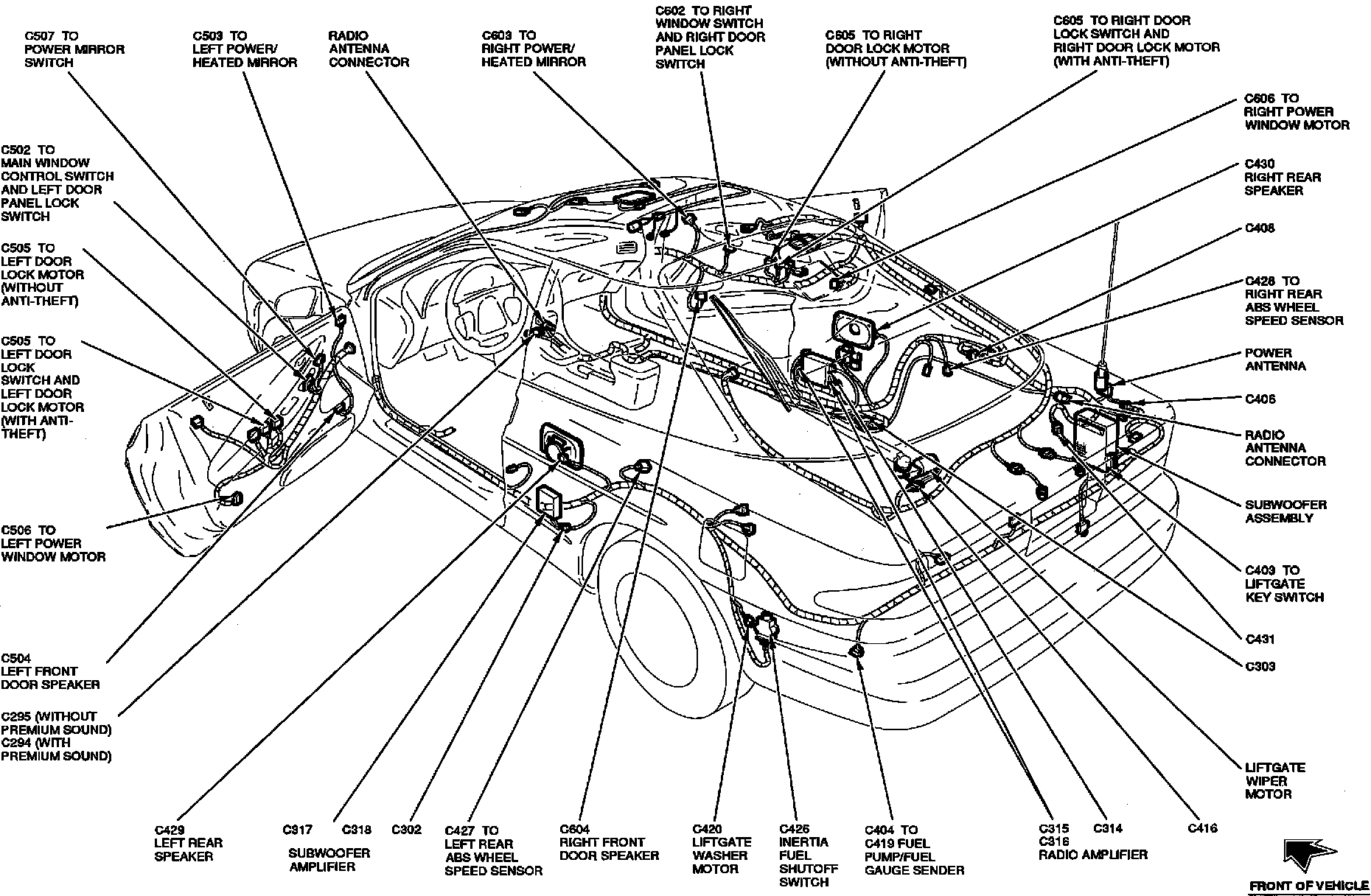

Component Locations:

FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUTOFF SWITCH
LEFT DOOR LOCK MOTOR (WITHOUT ANTI-THEFT)
LEFT FRONT DOOR SPEAKER
LEFT POWER HEATED MIRROR
LEFT POWER WINDOW MOTOR
LEFT REAR ABS WHEEL SPEED SENSOR
LEFT REAR SPEAKER
LIFTGATE KEY SWITCH
LIFTGATE WASHER MOTOR
LIFTGATE WIPER MOTOR
MAIN WINDOW CONTROL SWITCH AND LEFT DOOR PANEL LOCK SWITCH
POWER ANTENNA
POWER MIRROR SWITCH
RADIO AMPLIFIER
RADIO ANTENNA CONNECTOR
RADIO ANTENNA CONNECTOR
RIGHT DOOR LOOK MOTOR (WITHOUT ANTI-THEFT)
RIGHT DOOR LOOK SWITCH AND RIGHT DOOR LOOK MOTOR (WITH ANTI-THEFT)
RIGHT FRONT DOOR SPEAKER
RIGHT POWER HEATED MIRROR
RIGHT POWER WINDOW MOTOR
RIGHT REAR ABS WHEEL SPEED SENSOR
RIGHT REAR SPEAKER
RIGHT WINDOW SWITCH AND RIGHT DOOR PANEL LOOK SWITCH
SUBWOOFER AMPLIFIER
SUBWOOFER ASSEMBLY
