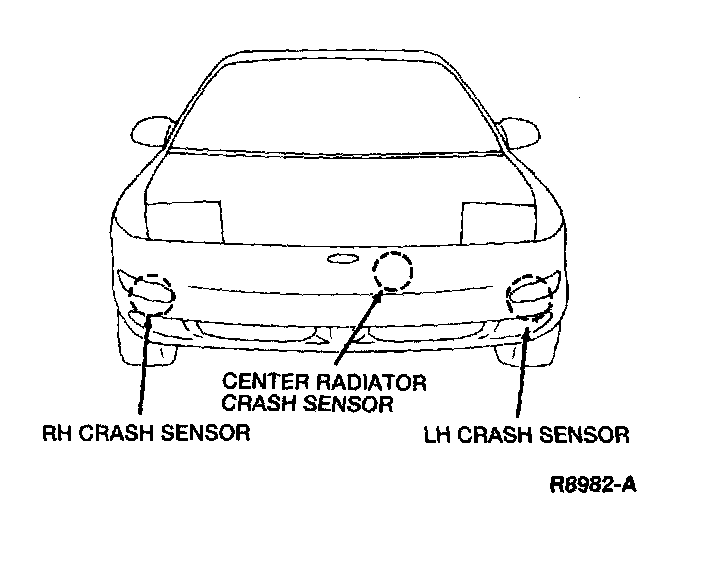

Impact Sensor: Locations
The three crash sensors are located at the front of the vehicle along the body chassis. Two crash sensors are located beneath the front fenders on the right and left unibody front bumper supports. The third crash sensor is located on the radiator support.
