Engine Camshaft - Service Procedure Revision

Article No.
93-19B-30

09/29/93

SERVICE MANUAL - 1993 - SECTION 03-01D - CAMSHAFT REMOVAL/INSTALLATION PROCEDURES REVISED

LIGHT TRUCK:
1993 EXPLORER, RANGER




















ISSUE:

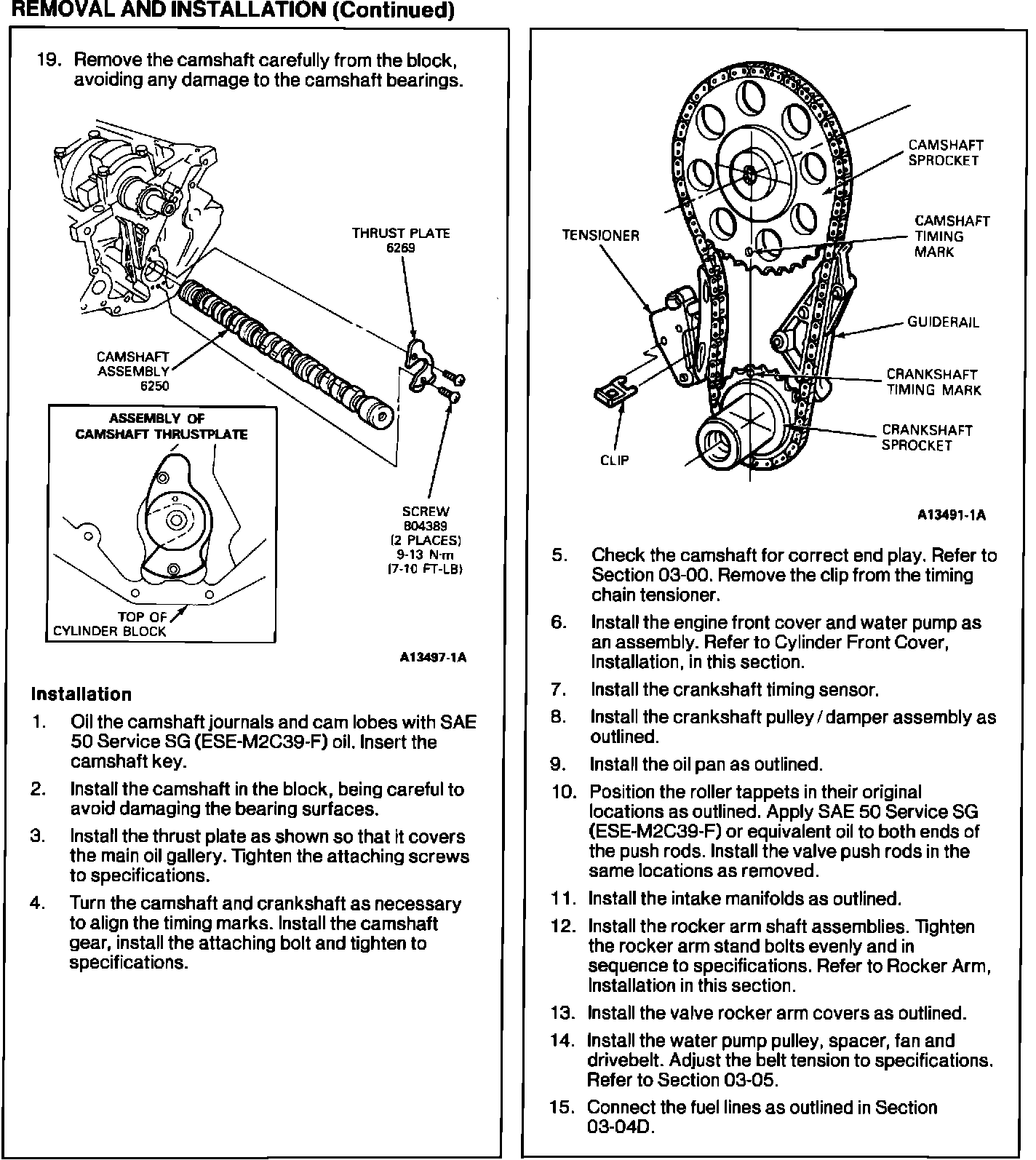

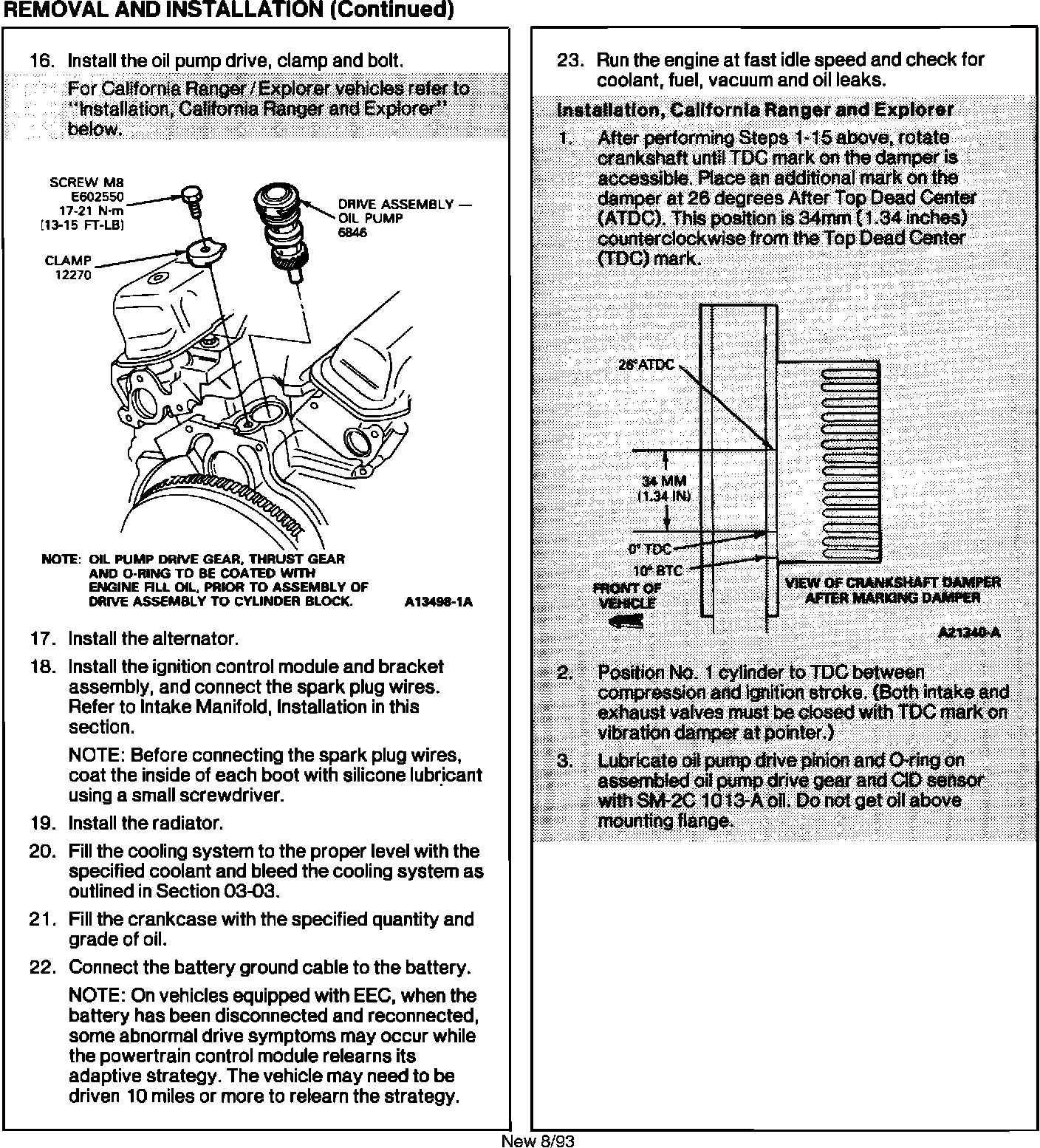

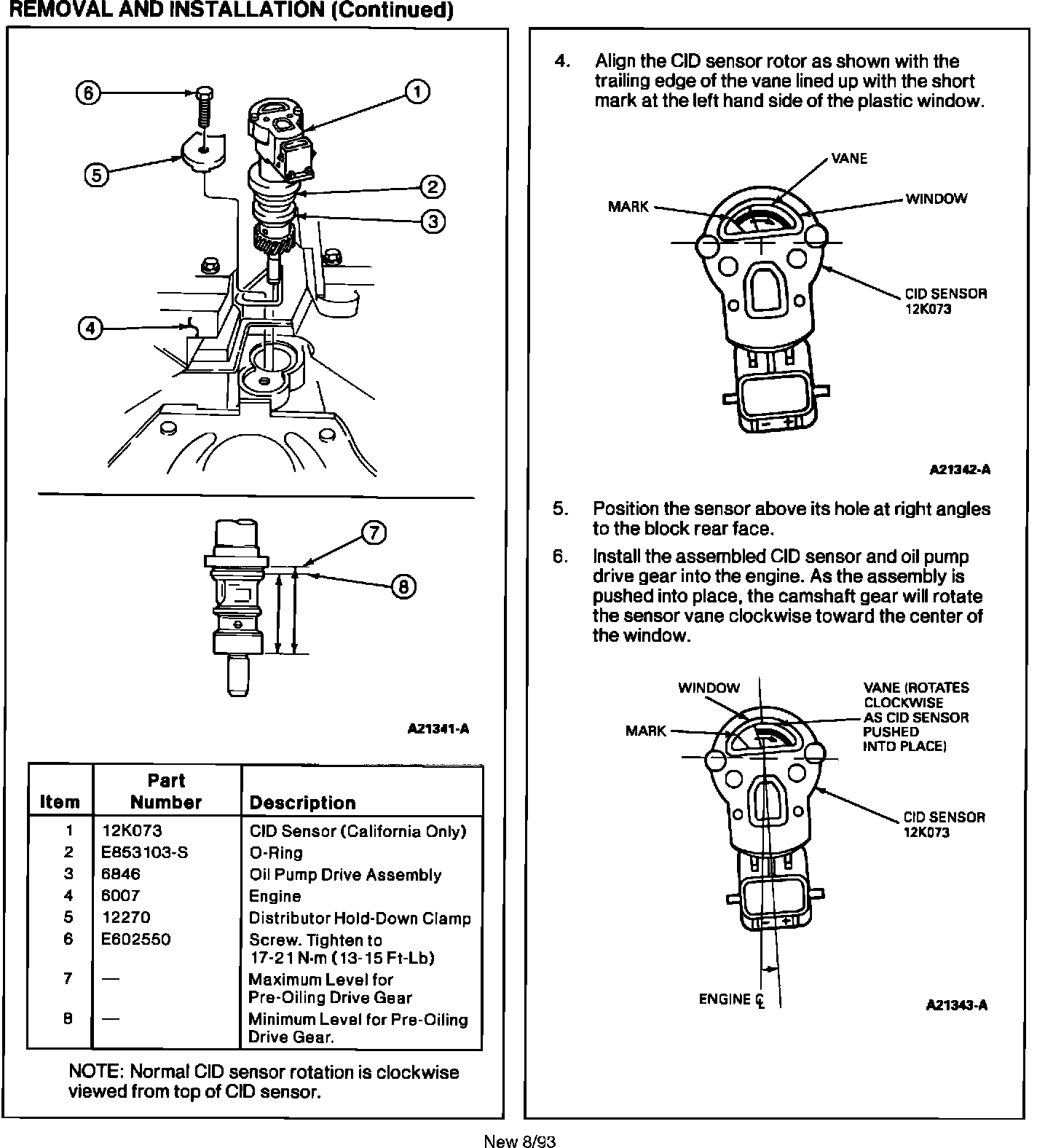

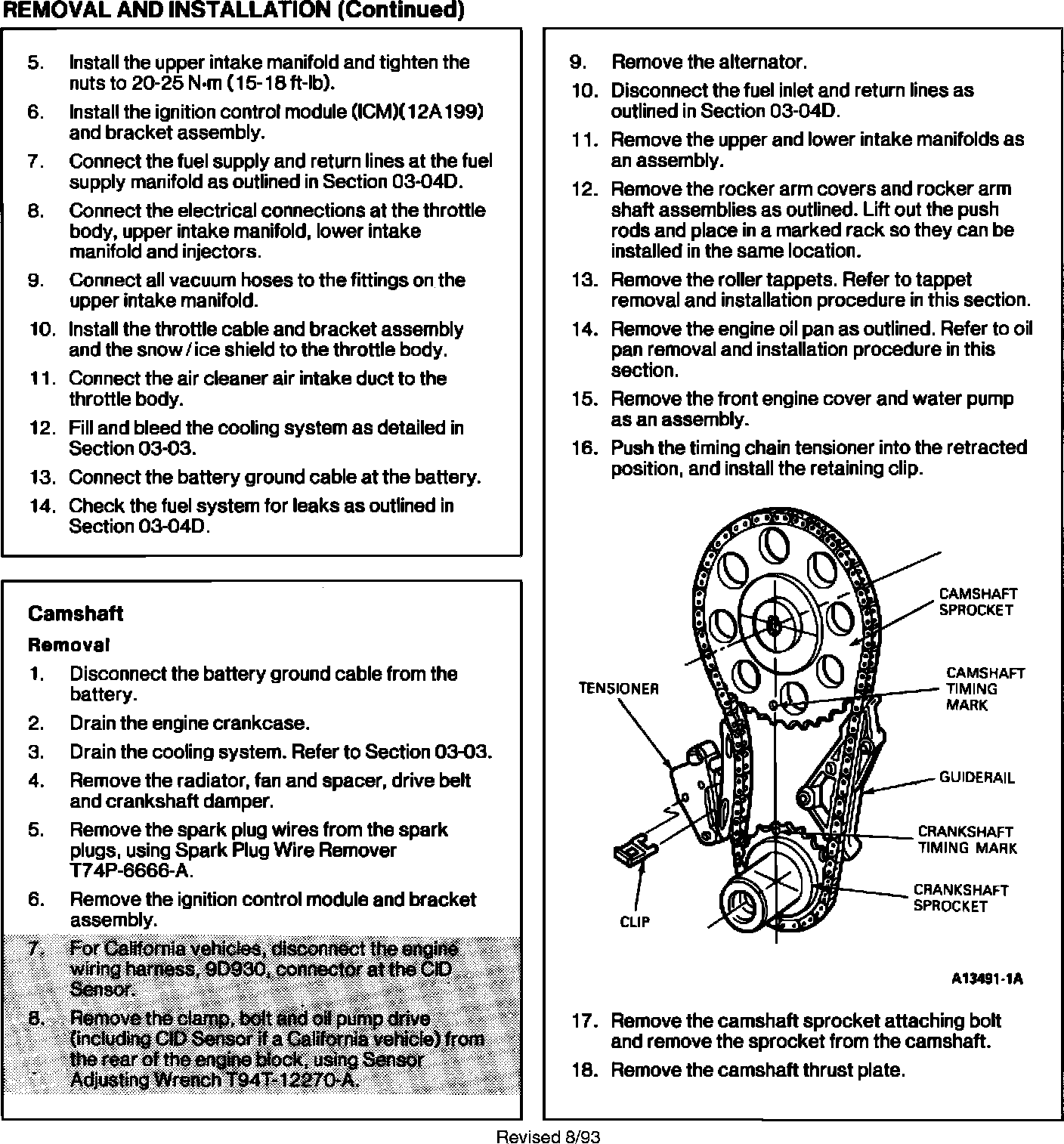

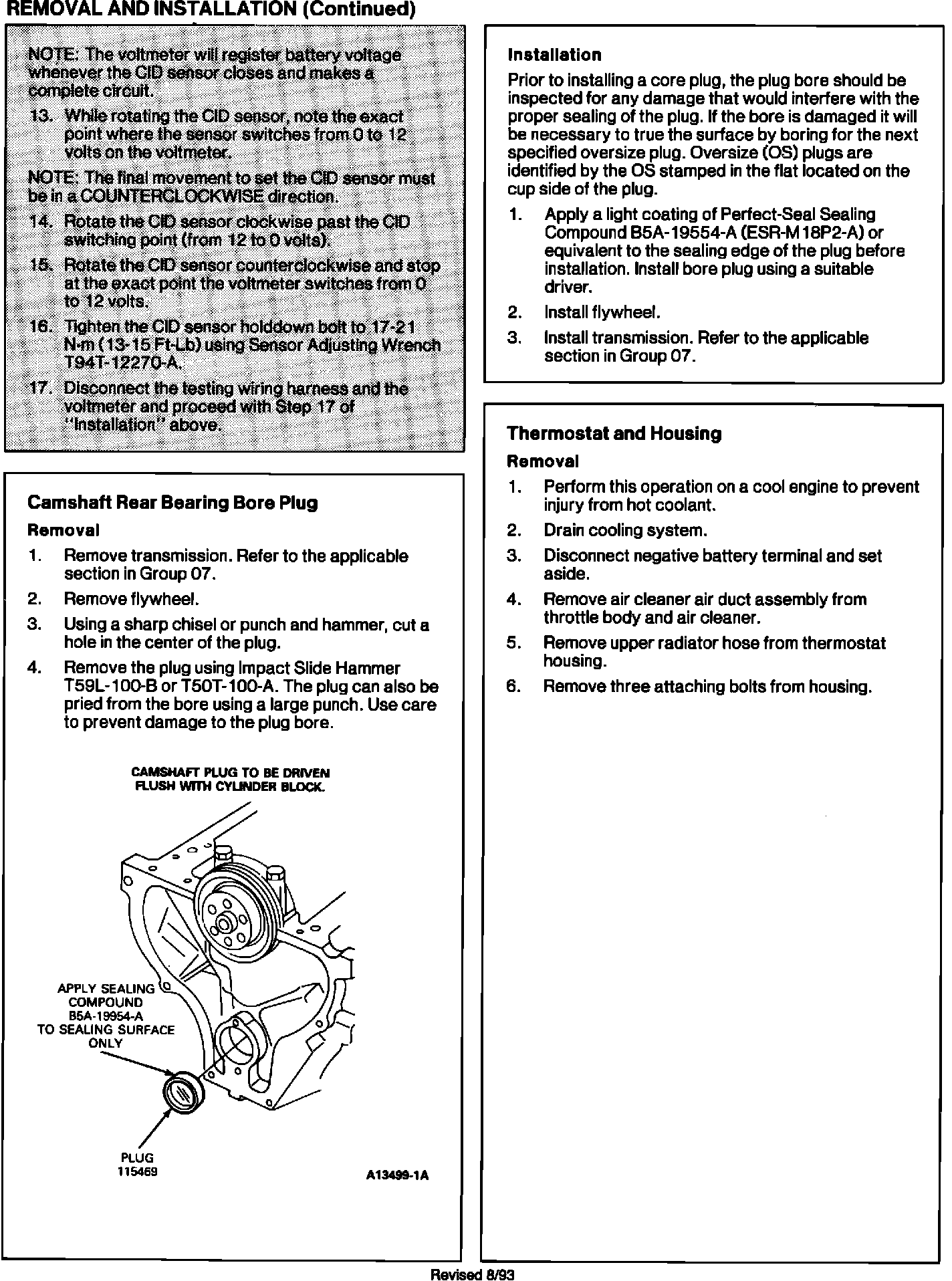

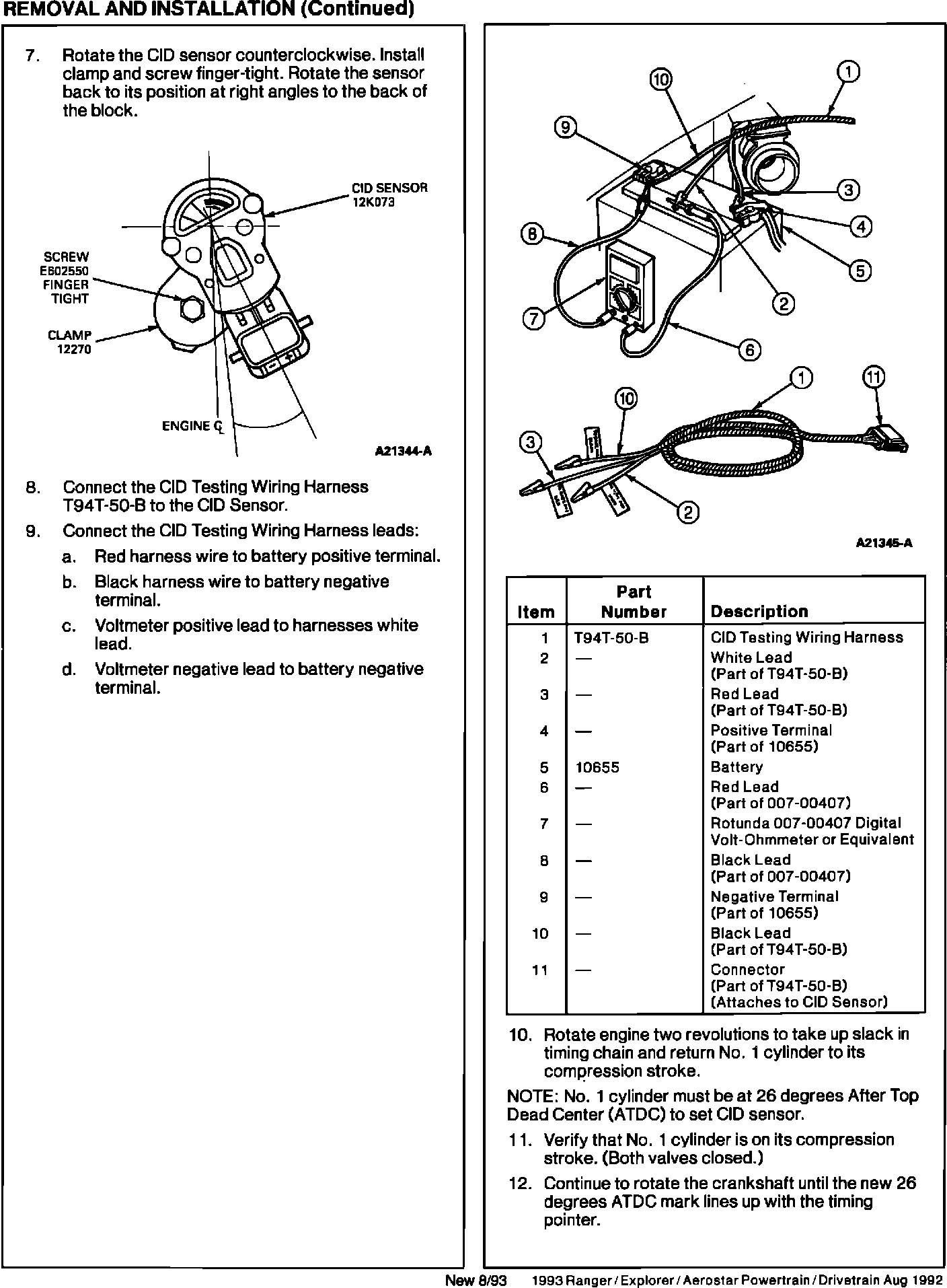

Camshaft removal and installation procedures require revision to accommodate the presence of the CID Sensor, and provide alignment procedures for the sensor. Also, Camshaft installation procedures, applicable to Ranger/Explorer, California only, must be added. Pages 03-01D-21 and 03-01D-22 of the 1993 Aerostar/Ranger/Explorer Service Manual (Powertrain/Drivetrain) are affected; Pages 03-01D-22A through 03-01D-22C are new.

ACTION:
Refer to the pages in this TSB article for the revised and new information.

NOTE:
THE FOLLOWING REVISED/NEW INFORMATION IS APPLICABLE TO 1993 4.0L RANGER/EXPLORER, CALIFORNIA ONLY.

OTHER APPLICABLE ARTICLES: 93-13B-27
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 490000
