Intermediate

Intermediate Shaft Bearing

Column Removed

Removal

1. Remove lock housing.

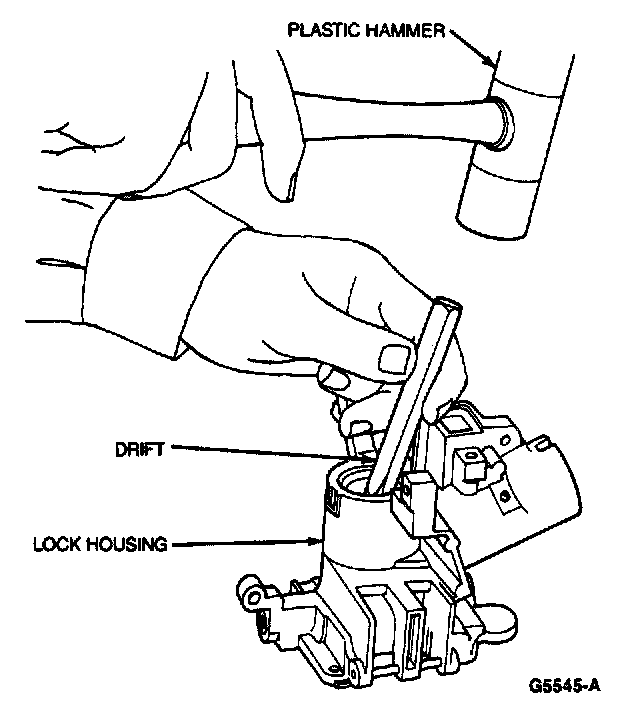

2. Set housing flat on workbench and tap large bearing loose with suitable drift and a plastic hammer.

Installation

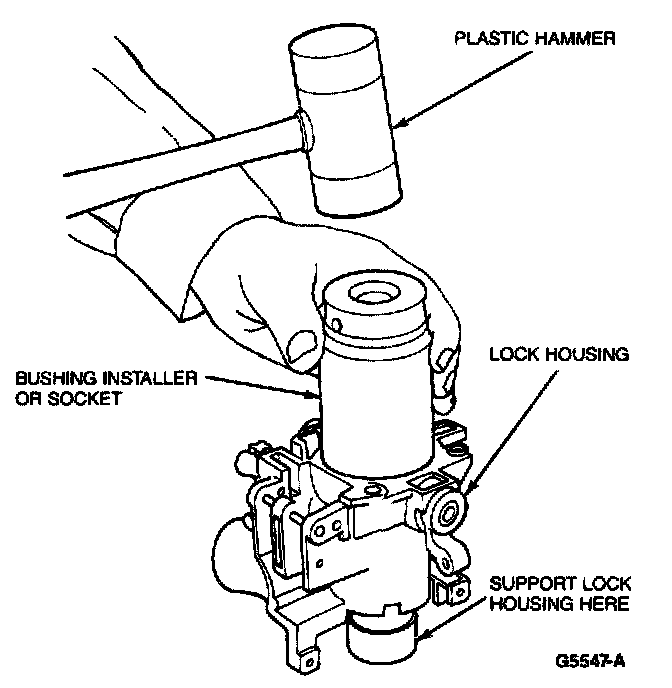

1. Support lock housing on workbench

2. Position bearing so that the opening between races will face up, or out from housing, when installed.






3. Using a socket or bushing driver the same size as outer race of bearing, tap bearing into housing with a plastic hammer until fully seated.
