Fluid Pump: Service and Repair

DISASSEMBLE

Exploded View Of Oil Pump:






NOTE: Refer to the Exploded View Of Oil Pump image when performing this procedure.

1. Remove No. 12 selective steel/bronze type thrust washer, if equipped.
2. Remove seal rings from clutch support and pump to case seal.
3. Remove five clutch support to body attaching bolts, then clutch support from pump body.
4. Remove insert from pump drive gear, pump driven gear, and drive gear.

ASSEMBLE
1. Install drive gear, driven gear, and pump drive insert.
2. Position clutch support on pump body and install five support to pump body attaching bolts. Tighten the bolts.
3. Install a new pump body to case seal.

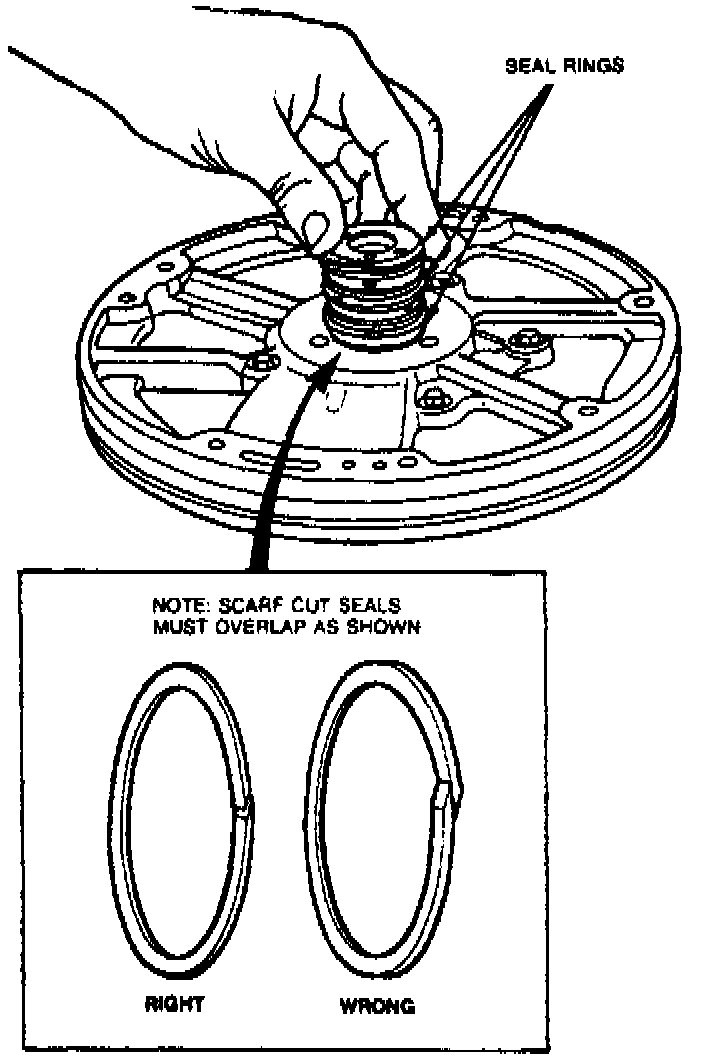

Seal Ring Installation:






4. Lubricate and install seal rings, and No. 12 selective steel/bronze type thrust washer, if equipped.
