Wiper Motor Linkage: Service and Repair
1.
Remove front
wiper motor.

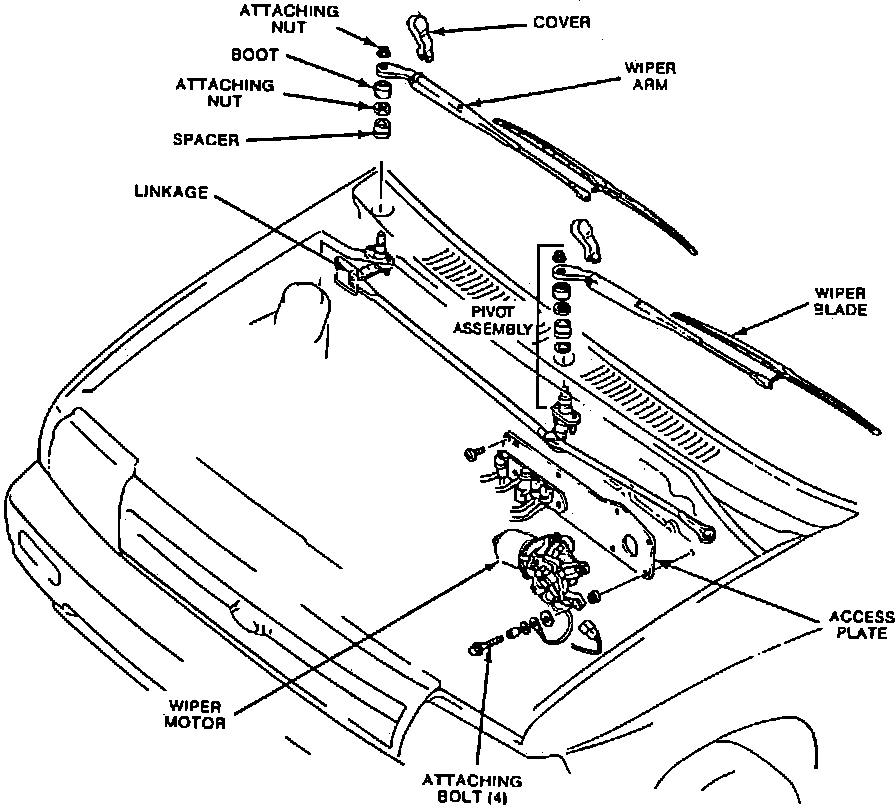

Fig. 7 Windshield Wiper Motor Replacement:
2.
Remove
wiper arms, then the pivot assembly protective boots.
3.
Remove pivot attaching nuts and spacers, then the linkage through opening in access panel.
4.
Reverse procedure to install.
