Engine Controls

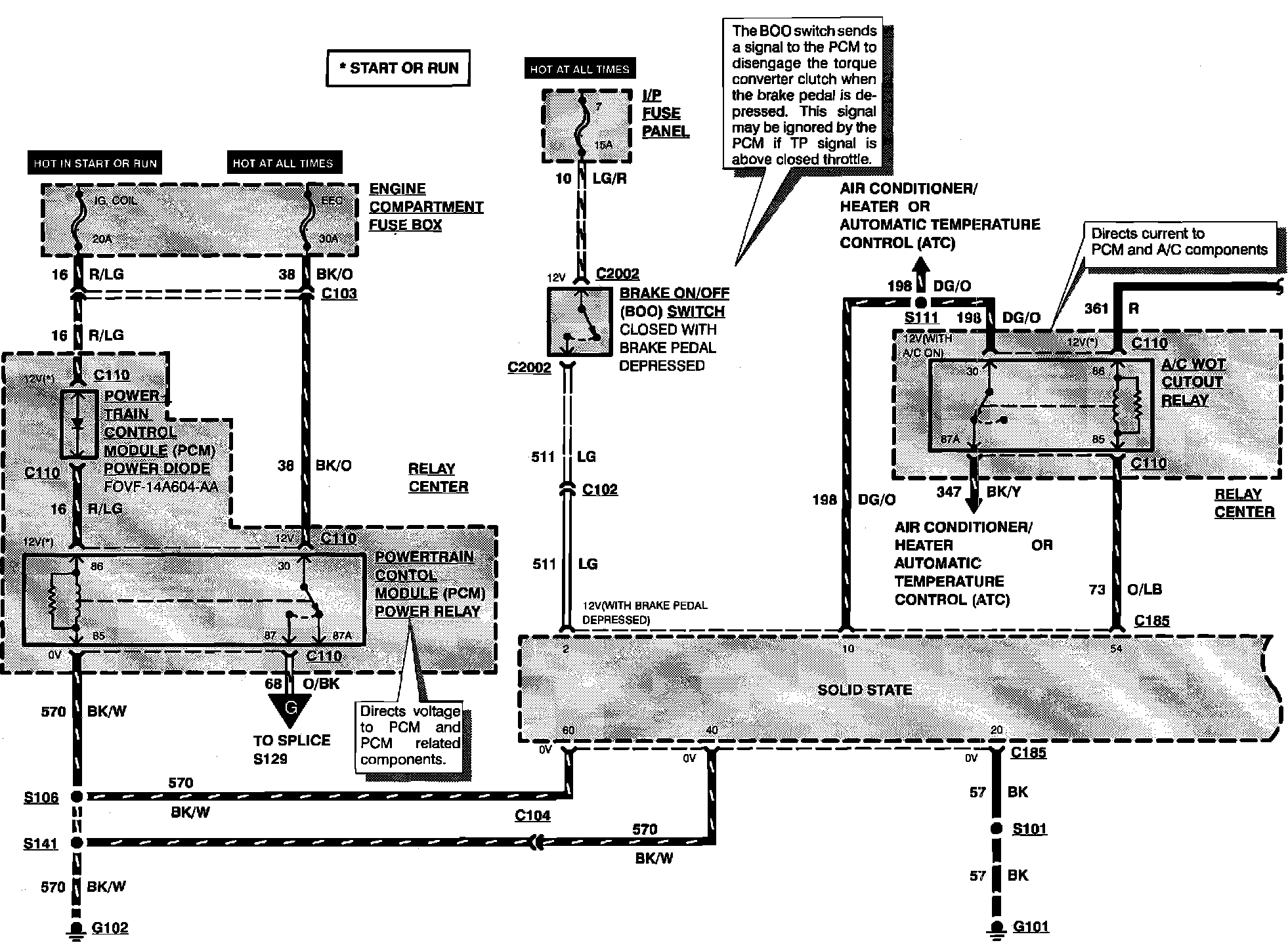

Engine Controls:

A/C WOT CUTOUT RELAY
BRAKE ON/OFF (BOO) SWITCH
POWERTRAIN CONTROL MODULE (PCM) POWER DIODE
POWERTRAIN CONTROL MODULE POWER RELAY

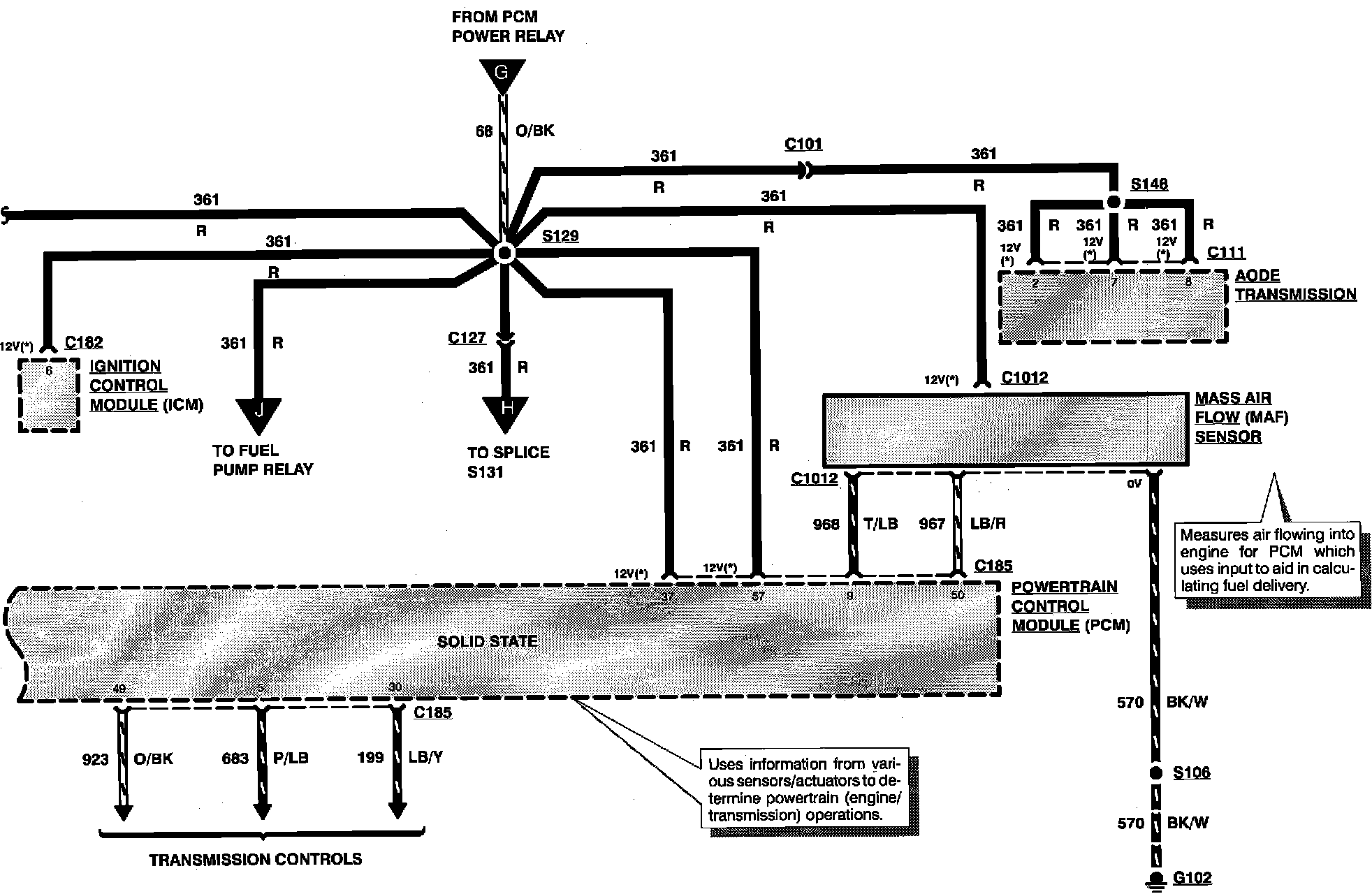

Engine Controls:

MASS AIR FLOW (MAF) SENSOR

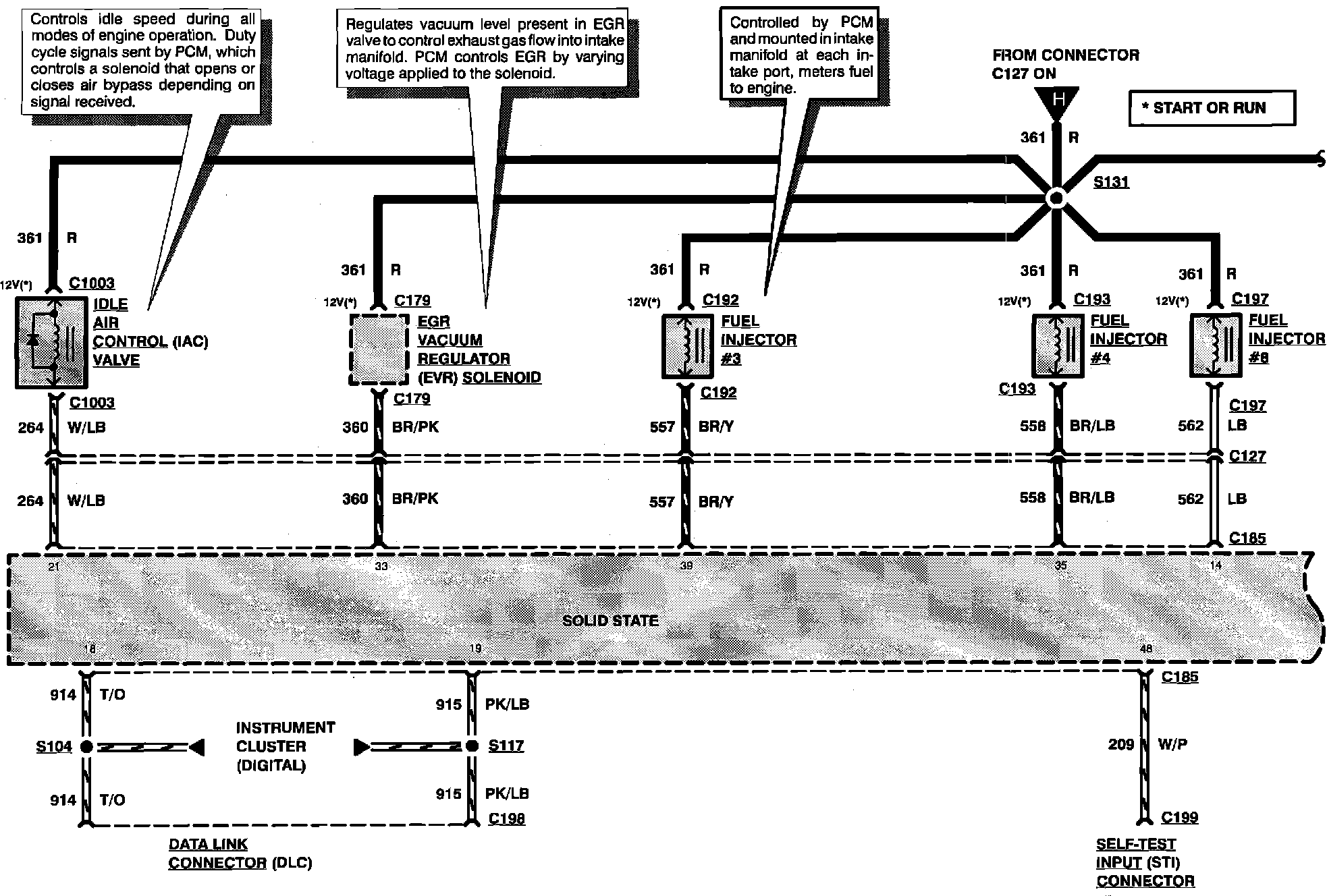

Engine Controls:

EGR VACUUM REGULATOR (EVR) SOLENOID
FUEL INJECTORS
IDLE AIR CONTROL (IAC) VALVE

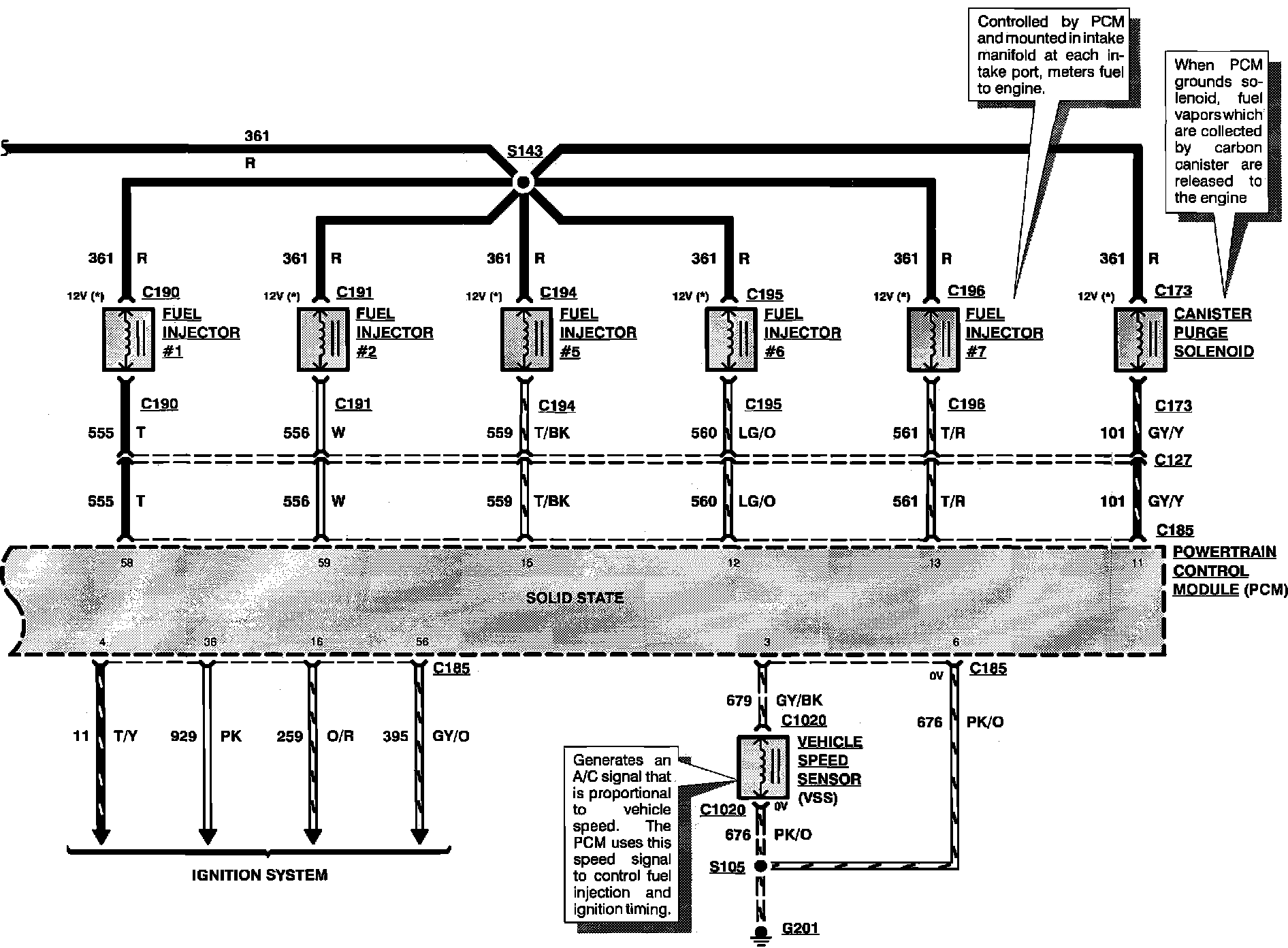

Engine Controls:

CANISTER PURGE SOLENOID
FUEL INJECTORS
VEHICLE SPEED SENSOR (VSS)

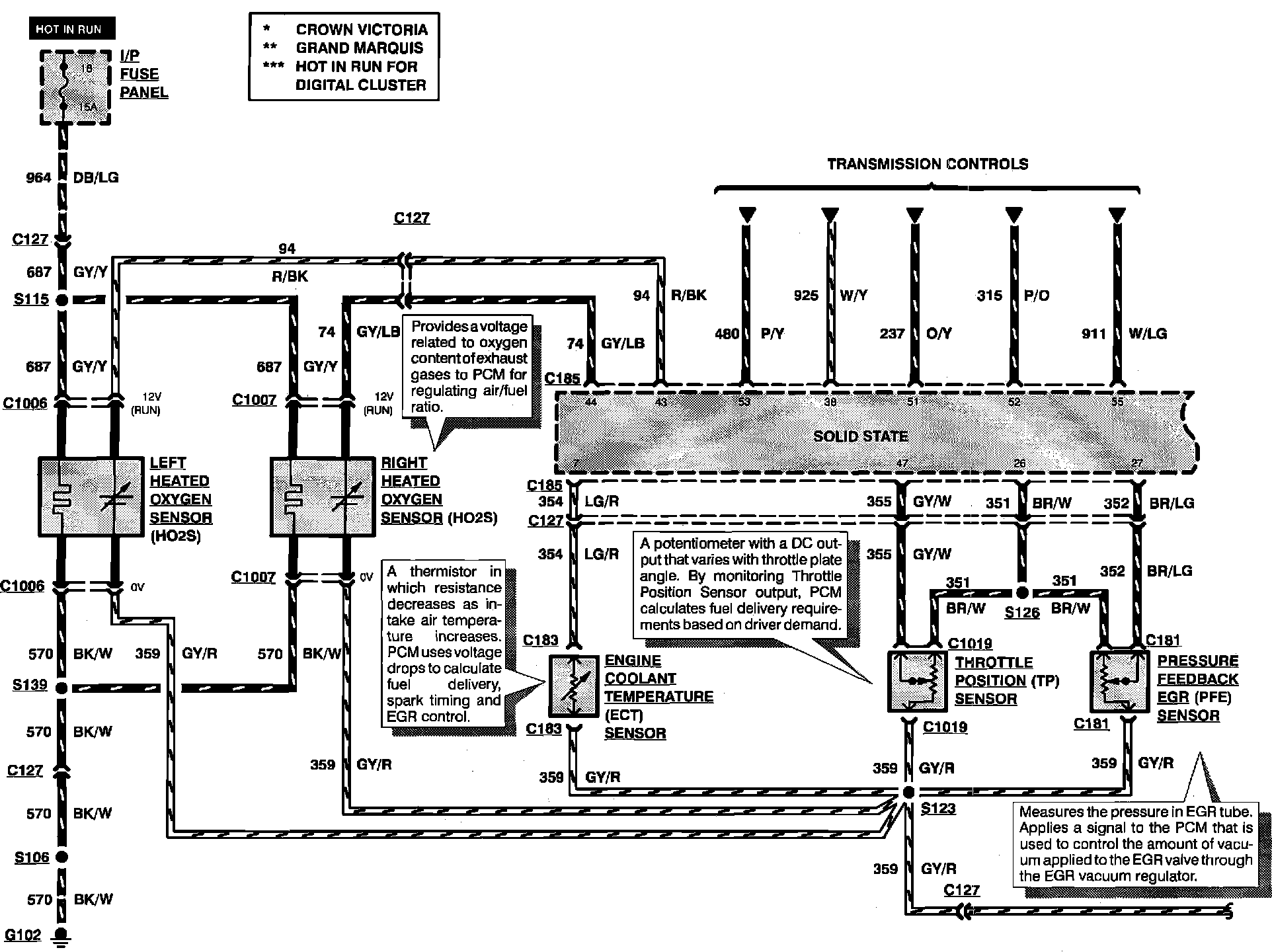

Engine Controls:

ENGINE COOLANT TEMPERATURE (ECT) SENSOR
LEFT HEATED OXYGEN SENSOR (HO2S)
PRESSURE FEEDBACK EGR (PFE) SENSOR
RIGHT HEATED OXYGEN SENSOR (HO2S)
THROTTLE POSITION (TP) SENSOR

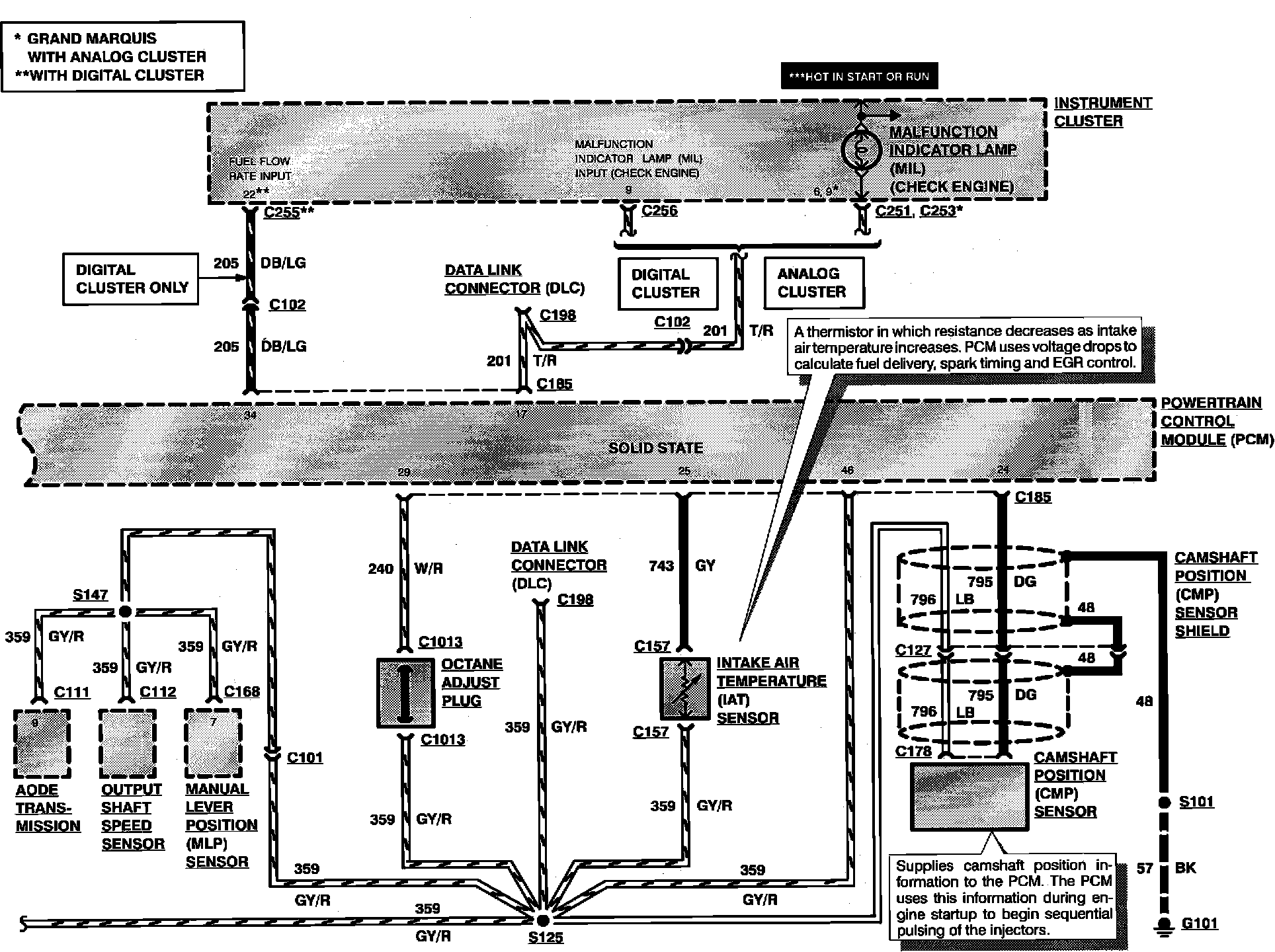

Engine Controls:

CAMSHAFT POSITION (CMP) SENSOR
CAMSHAFT POSITION (CMP) SENSOR SHIELD
INTAKE AIR TEMPERATURE (IAT) SENSOR
MALFUNCTION INDICATOR LAMP (MIL)
OCTANE ADJUST PLUG

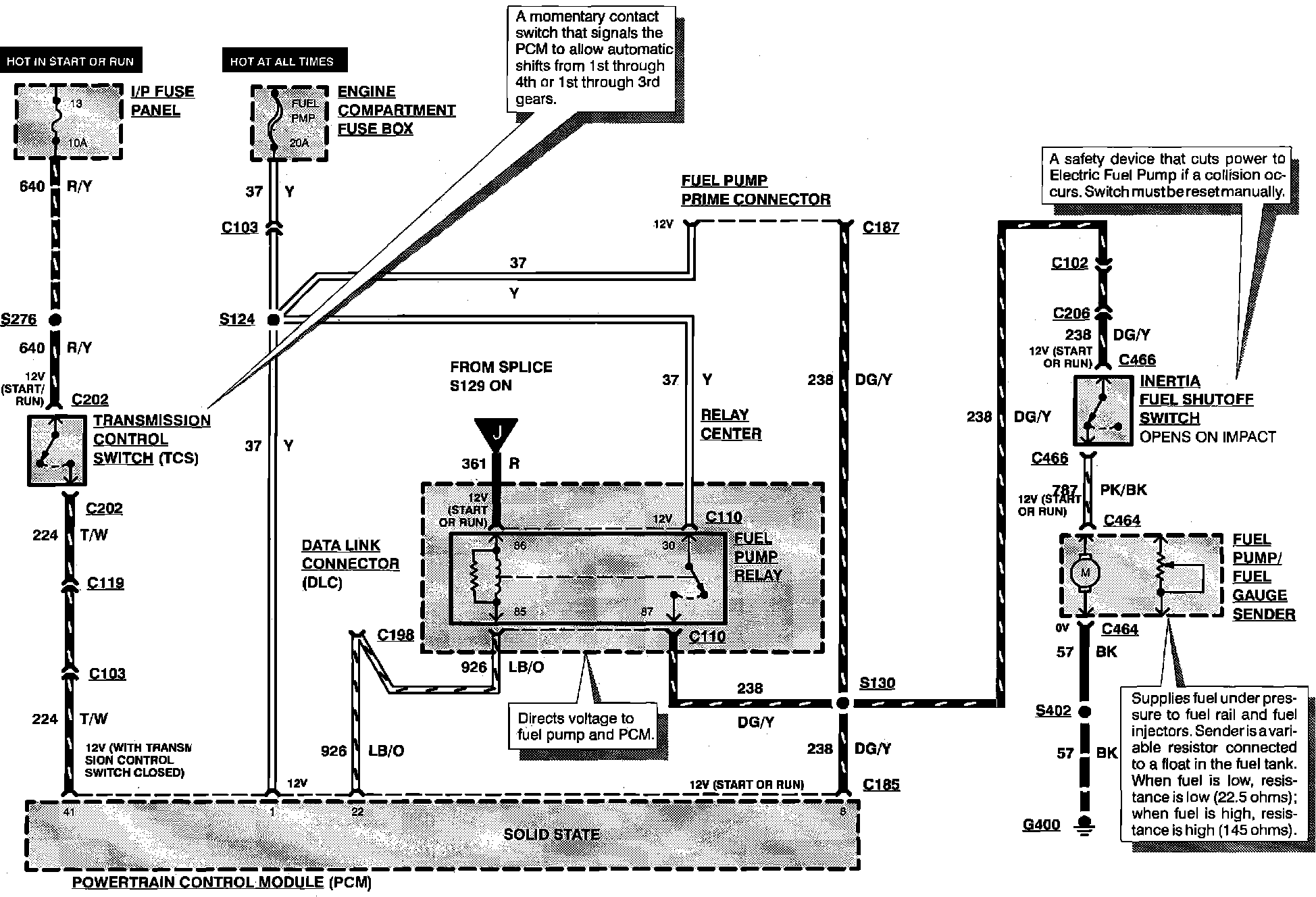

Engine Controls:

FUEL PUMP RELAY
FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUTOFF SWITCH
TRANSMISSION CONTROL SWITCH (TCS)
