Rear

Evaporator Core (Rear):

A/C Evaporator Expansion Valve And Core:

REMOVAL

1. Remove the auxiliary heater and air conditioning assembly.

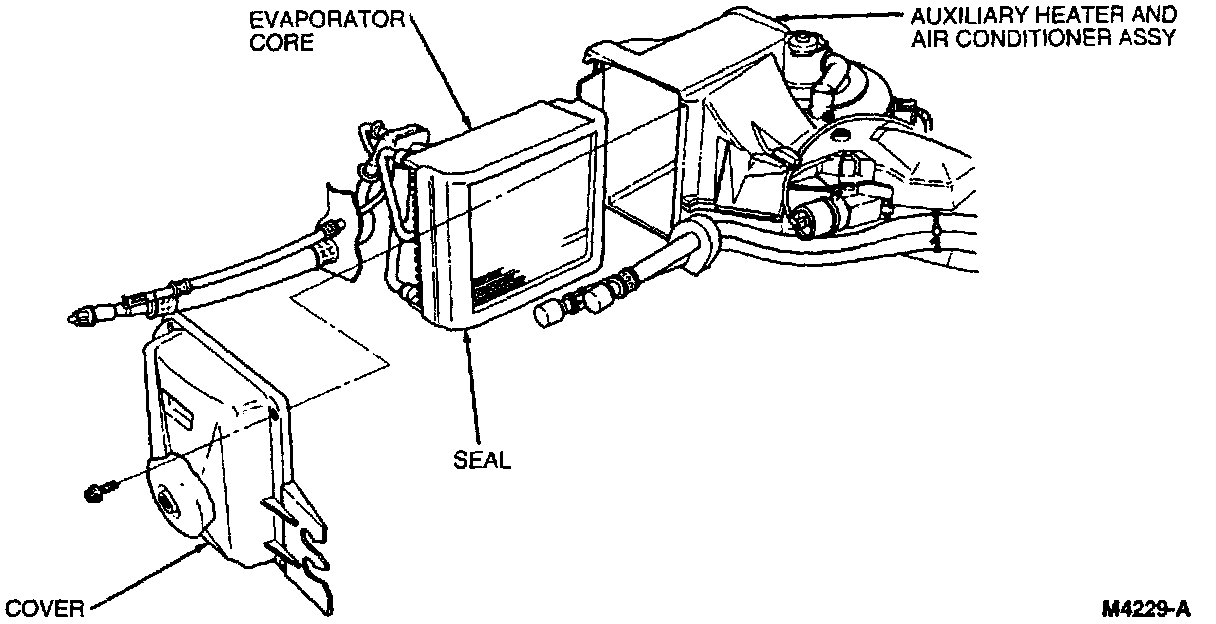

2. Remove the four screws from the A/C evaporator case cover (19B735) and remove the A/C evaporator case cover.
3. Remove the A/C evaporator core (19860) and A/C evaporator core seal (19A672).

INSTALLATION

1. Install the A/C evaporator core and A/C evaporator core seal into the auxiliary heater and air conditioner assembly, making sure to align the A/C evaporator core seal in the side of the A/C evaporator case (19897).
2. Place the A/C evaporator case cover into its mounting position and install the four mounting screws.
