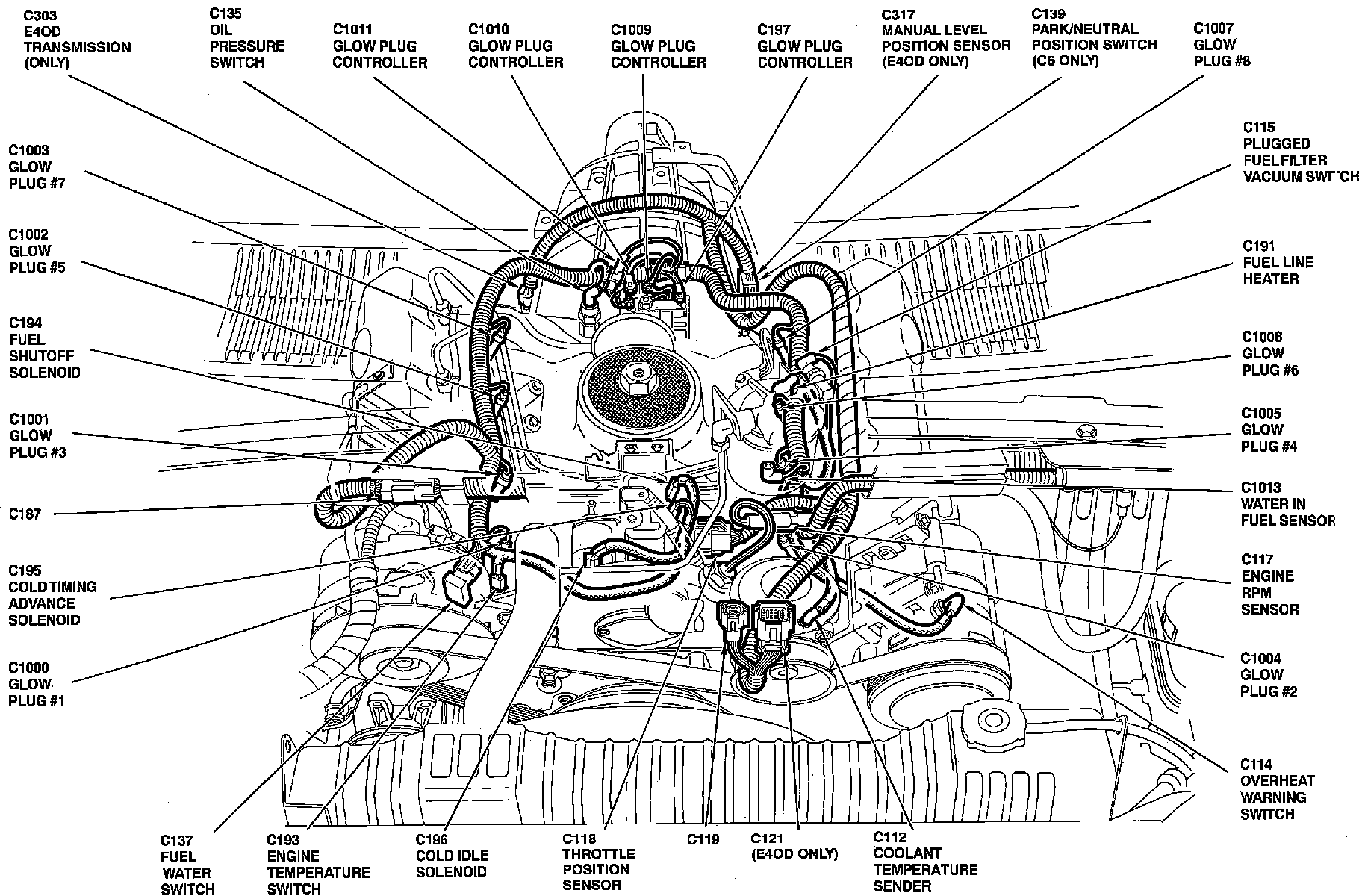

Engine Views

Component Locations:

COLD IDLE SOLENOID
COLD TIMING ADVANCE SOLENOID
COOLANT TEMPERATURE SENDER
E4OD TRANSMISSION
ENGINE RPM SENSOR
ENGINE TEMPERATURE SWITCH
FUEL LINE HEATER
FUEL SHUTOFF SOLENOID
FUEL WATER SWITCH
GLOW PLUGS
GLOW PLUG CONTROLLER
MANUAL LEVER POSITION SENSOR
OIL PRESSURE SWITCH
OVERHEAT WARNING SWITCH
PARK/NEUTRAL POSITION SWITCH
PLUGGED FUEL FILTER VACUUM SWITCH
THROTTLE POSITION SENSOR
WATER IN FUEL SENSOR
