Engine Controls

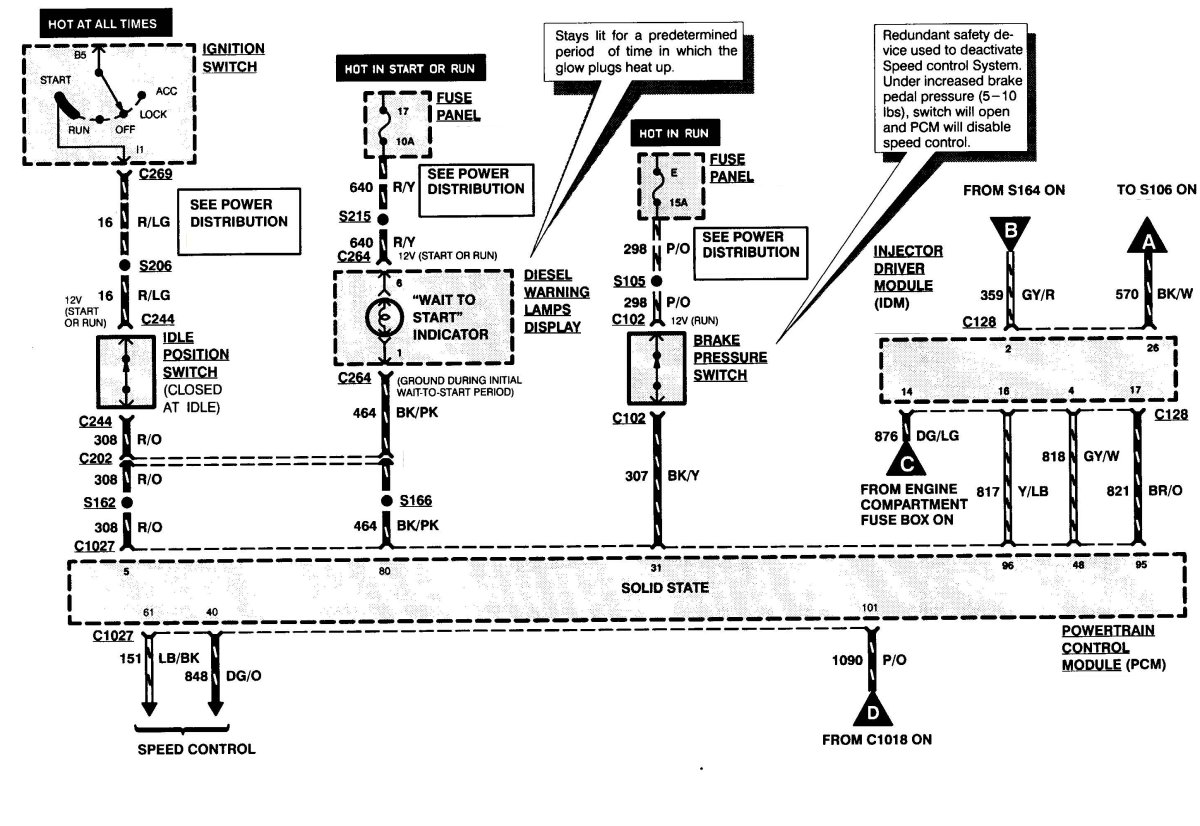

PCM (1 Of 4) IDI VIN K Non-Turbo:

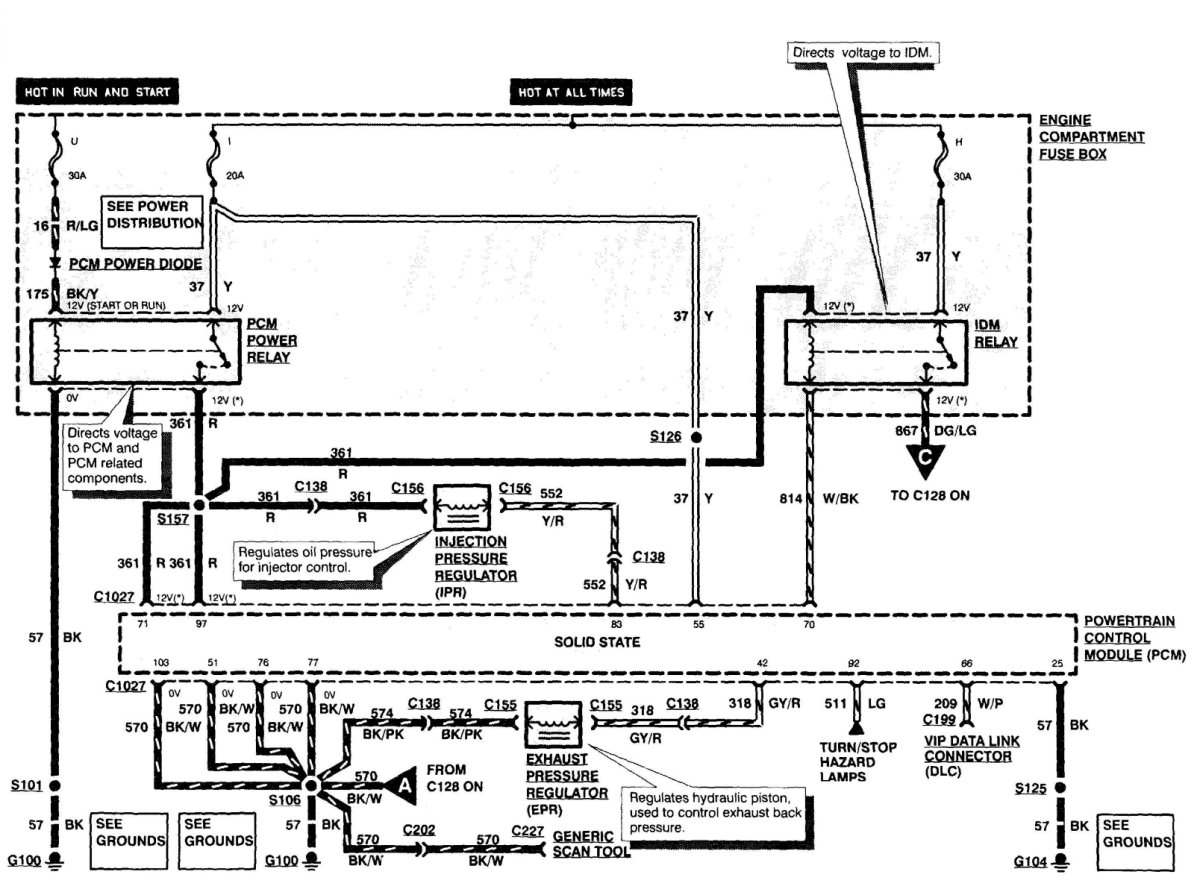

PCM (2 Of 4) IDI VIN K Non-Turbo:

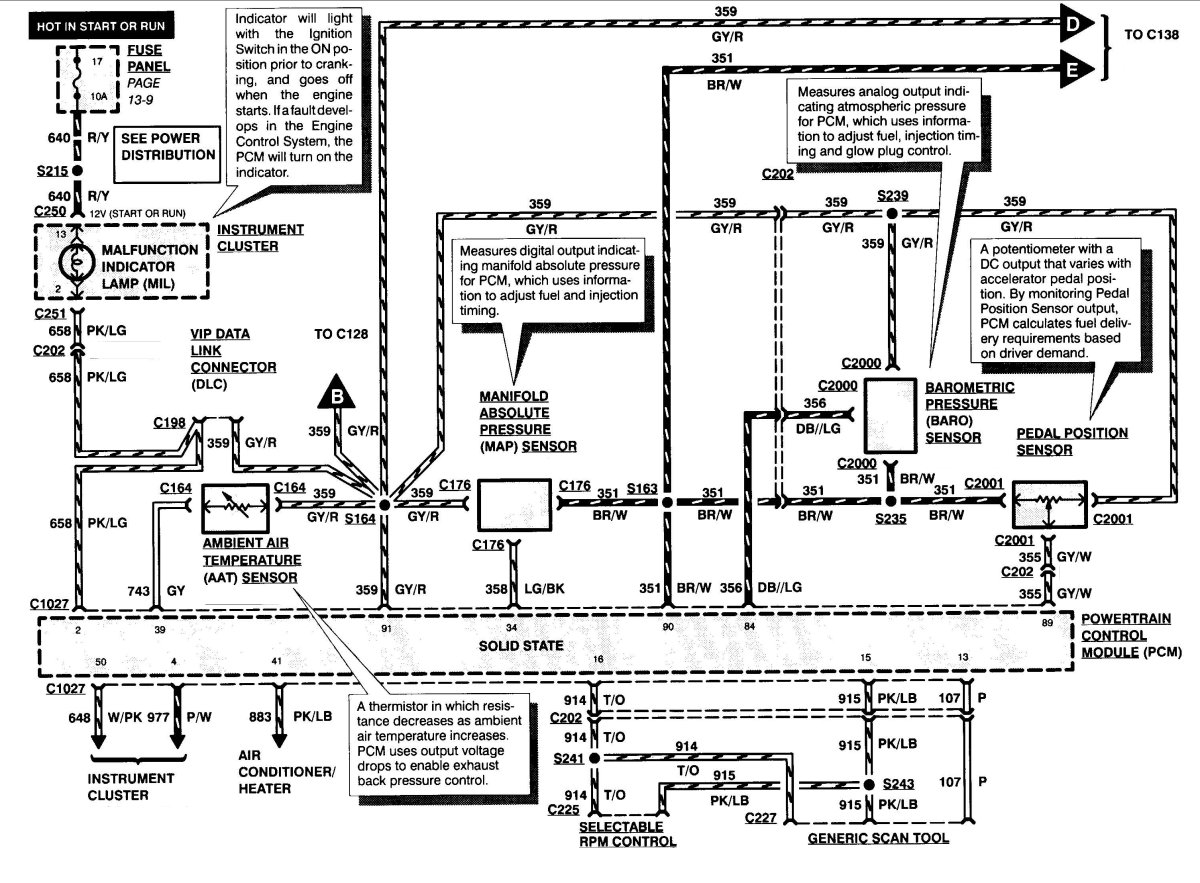

PCM (3 Of 4) IDI VIN K Non-Turbo:



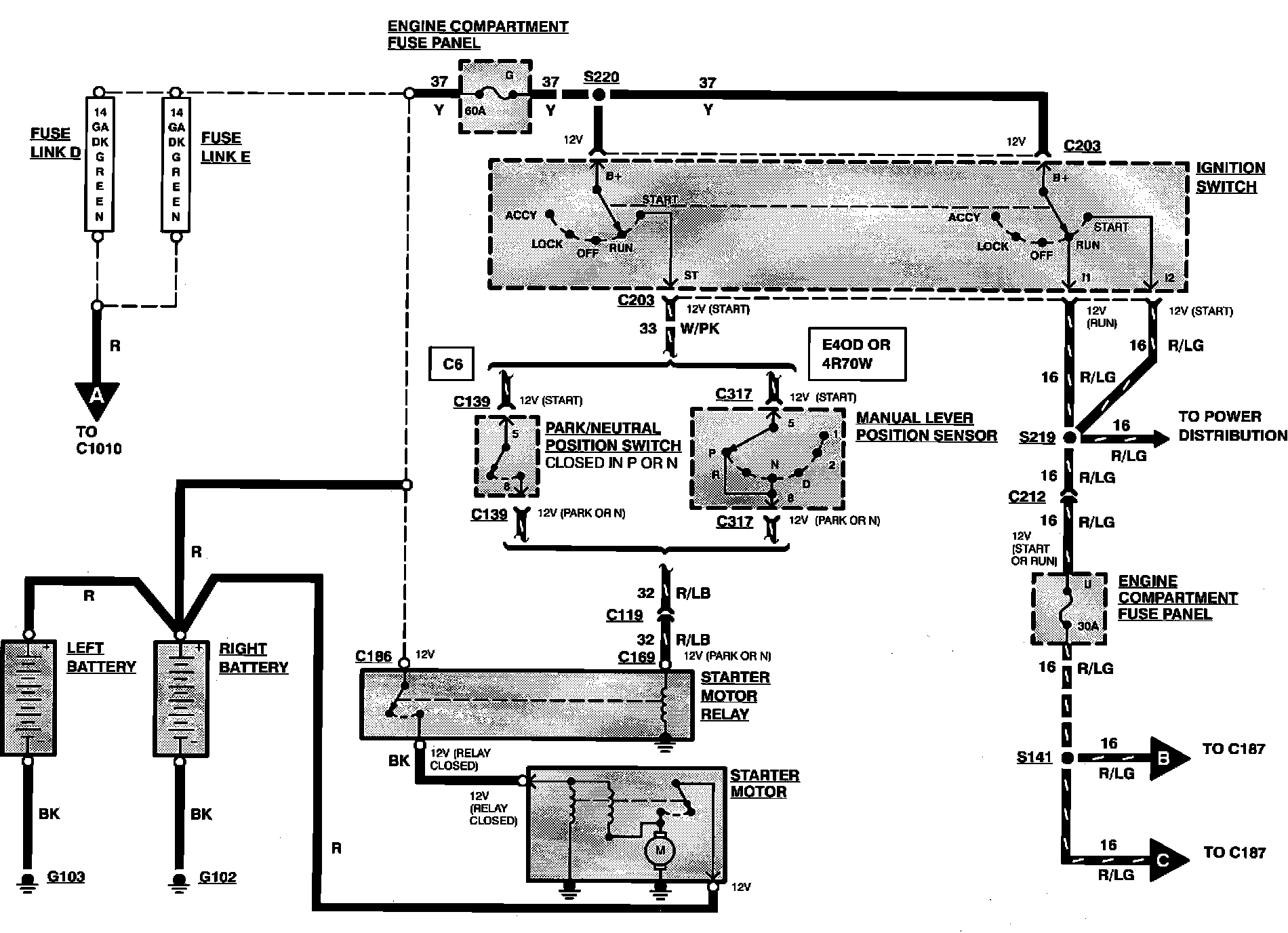

PCM (4 Of 4) IDI VIN K Non-Turbo:

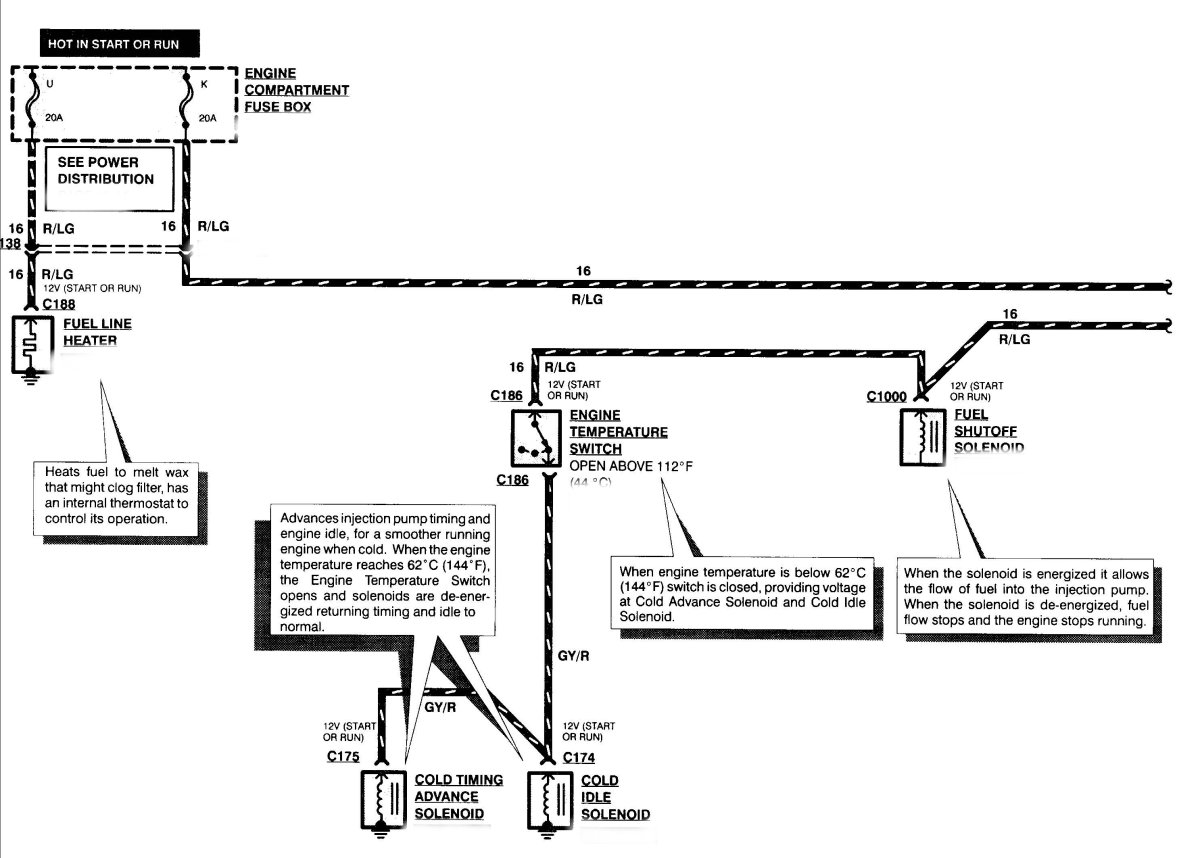

PCM (1 Of 4) DI VIN F Turbo:



PCM (2 Of 4) DI VIN F Turbo:



PCM (3 Of 4) DI VIN F Turbo:



PCM (4 Of 4) DI VIN F Turbo:

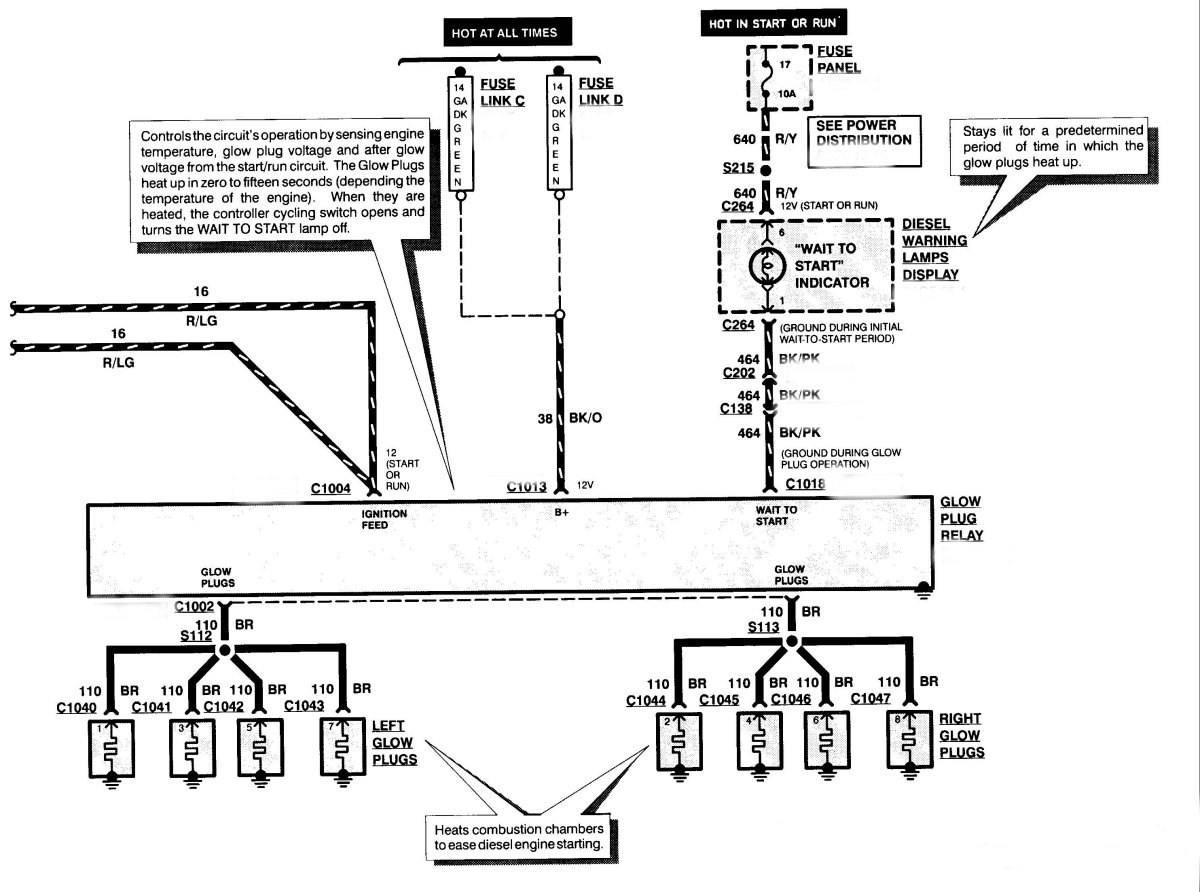

Engine Controls (Glow Plug Control):



Engine Controls (Glow Plug Control):
