ABS Main Relay: Service and Repair

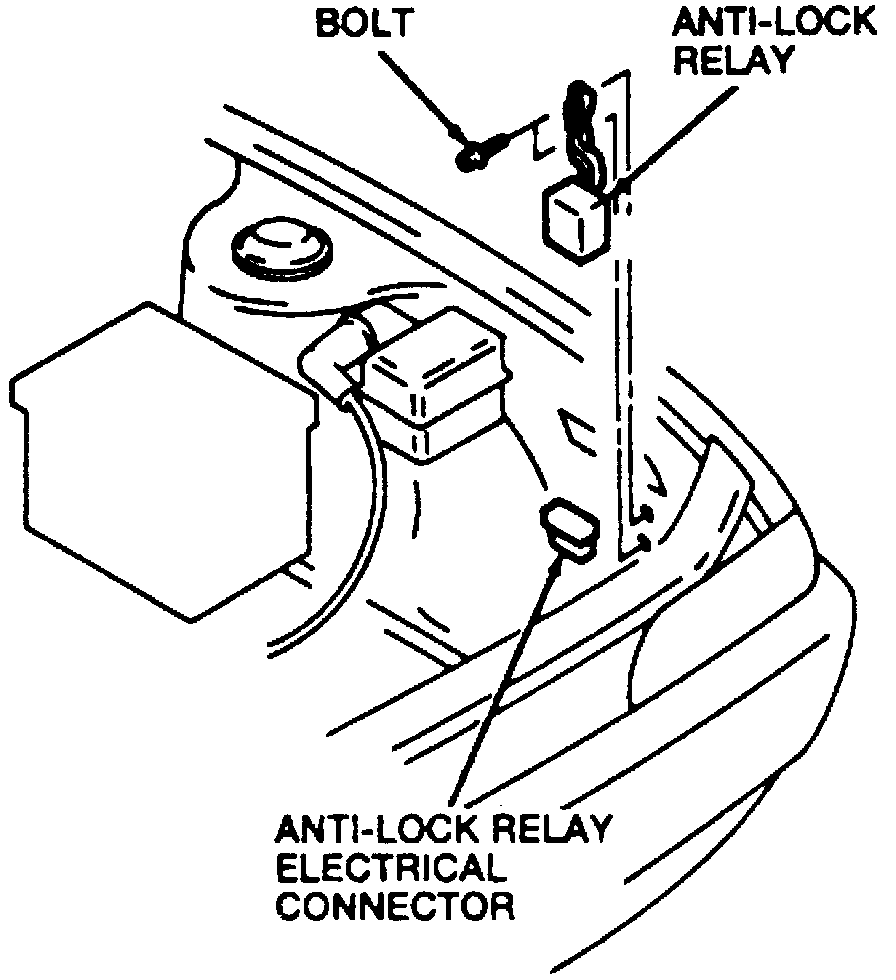

Fig. 66 Anti-Lock Relay Removal:
1.
Remove engine air cleaner, air cleaner intake tube bolt and air cleaner intake tube.
2.
Remove anti-lock relay bracket bolt.
3.
Disconnect relay electrical connector, then remove relay.
4.
Reverse procedure to install. Torque relay bracket bolts to
61-86 in lb.
