Blower Motor: Service and Repair

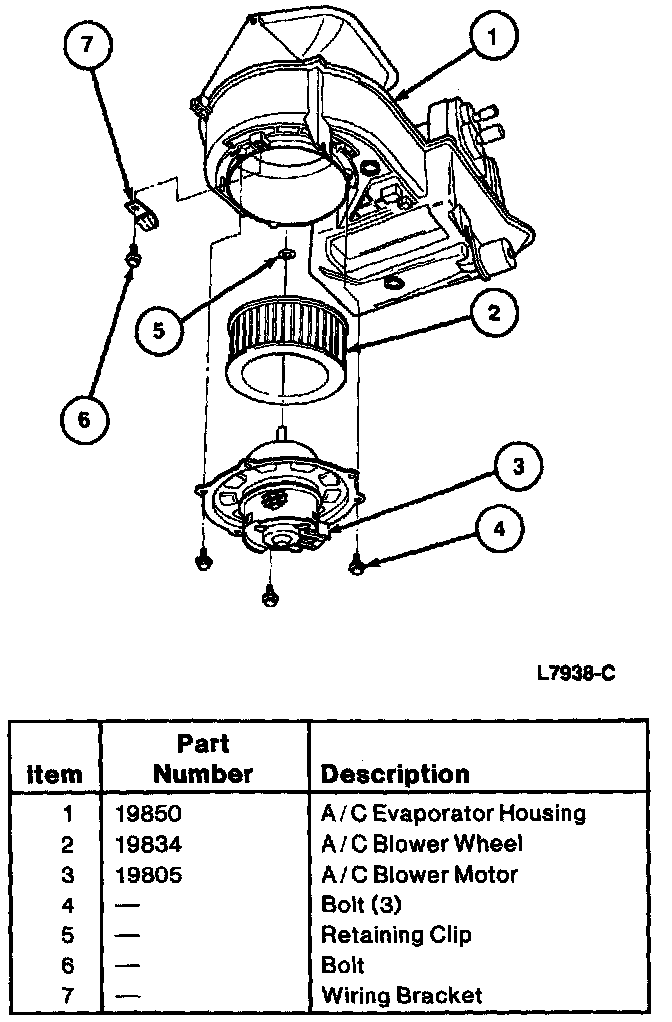

BLOWER MOTOR AND WHEEL

Removal

1. Remove the instrument panel cover below the glove compartment.
2. Remove the wiring bracket and bolt.

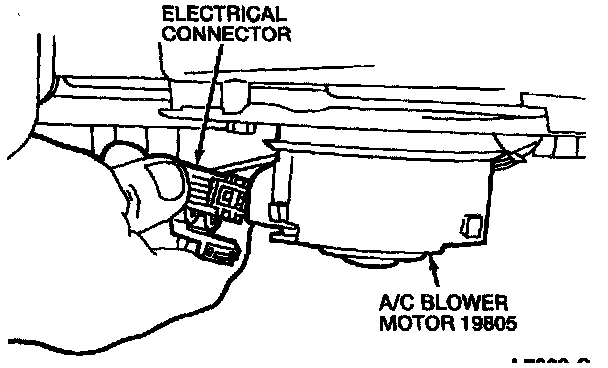

3. Disconnect the A/C blower motor electrical connector.

4. Remove the three A/C blower motor bolts.

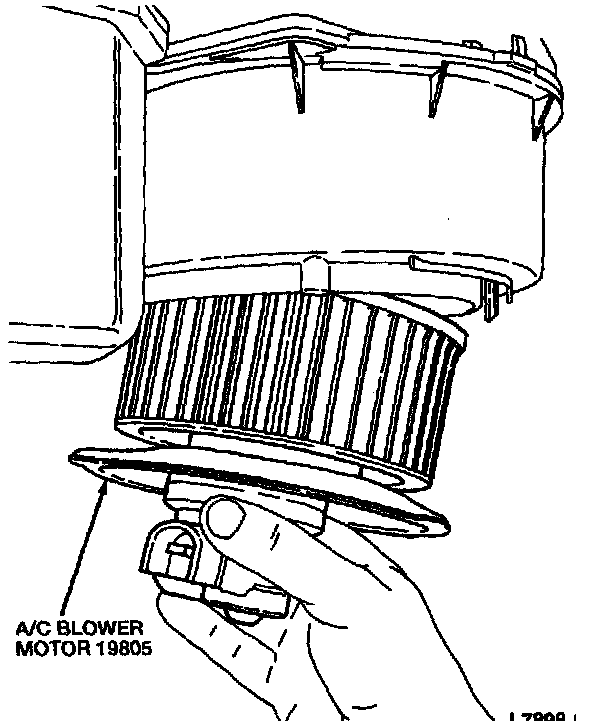

5. Remove the A/C blower motor.

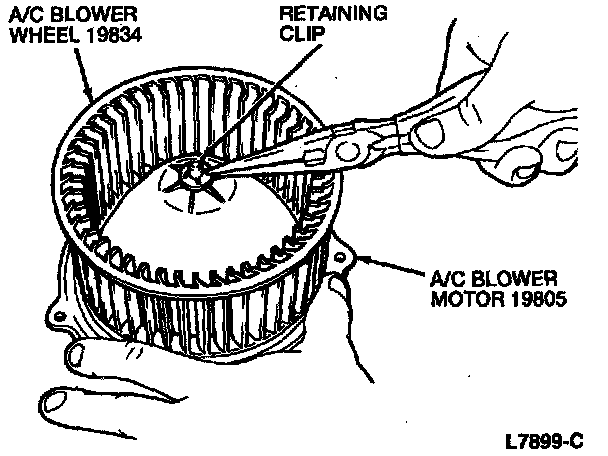

6. Remove the A/C blower wheel retaining clip.
7. Remove the A/C blower wheel from the A/C blower motor.

Installation
To install, reverse the above procedure.
