Key On Engine Off (KOEO) Wiggle Test

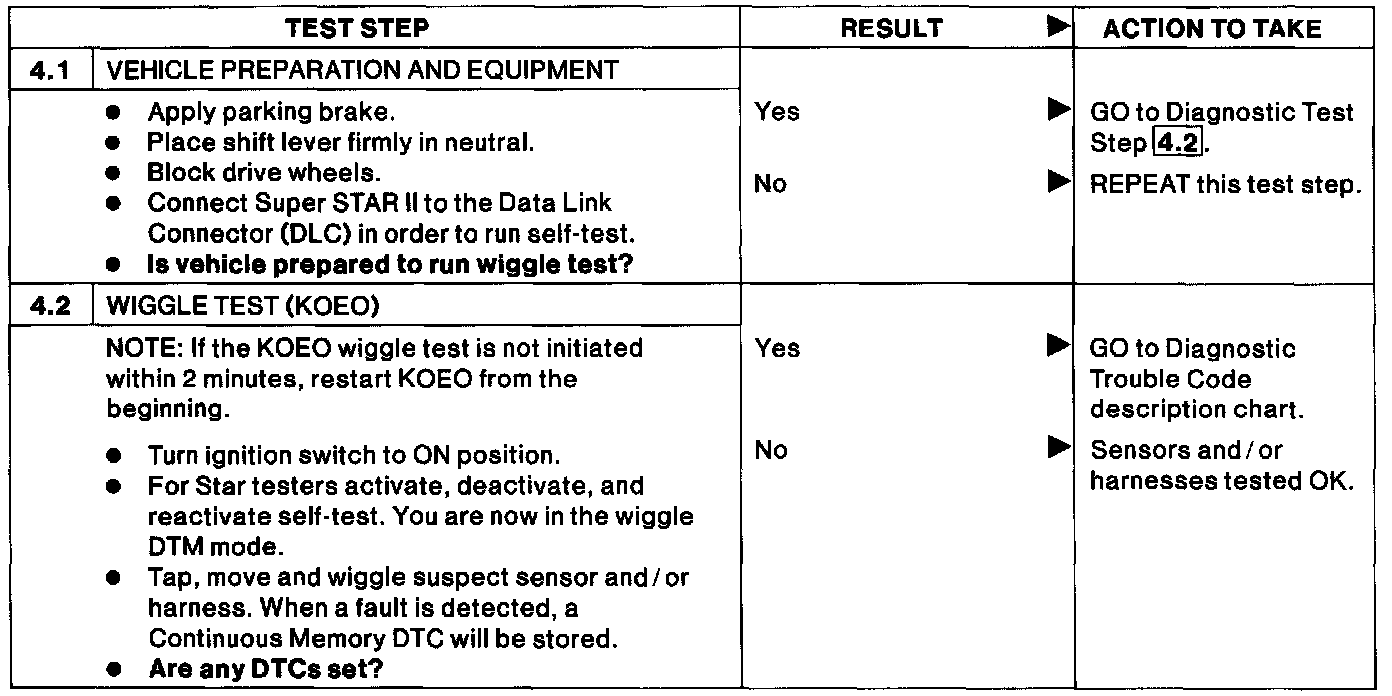

KOEO Wiggle Test:







WARNING: RED-STRIPED WIRES CARRY 115V DC. SEVERE ELECTRICAL SHOCK MAY BE RECEIVED. DO NOT PIERCE.


CAUTION: Do not pierce engine electrical wires or damage to the harness may occur.
