Disc Brake System: Diagrams

Front Brake System:

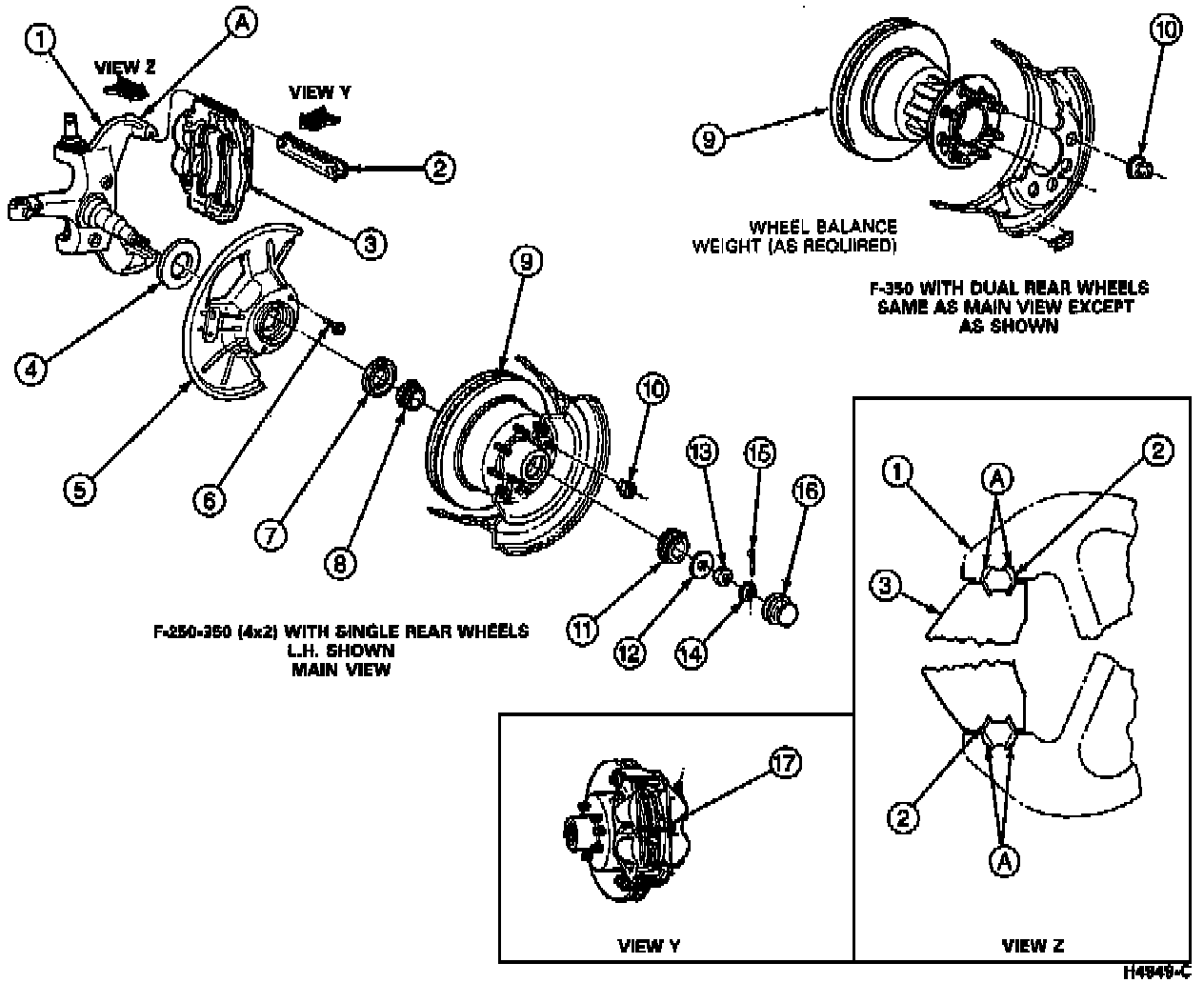

ITEM PART DESCRIPTION
NUMBER

1 3105 Front Wheel Spindle (RH)

2 2C150 Caliper Support Pin Assembly

3 2B120 Front Disc Brake Caliper

4 2B160 Front Brake Splash Shield Gasket

5 2K004 Front Disc Brake Rotor Shield (RH)

6 N611171-S2 Screw, 7-10 Nm
(62-89 in lb)

7 1190 Wheel Hub Grease Seal

8 4221 Inner Differential Bearing

9 1102 Front Disc Brake Hub and Rotor

10 1012 Wheel Hub Bolt Nut

11 1216 Front Wheel Bearing Outer Cone and
Roller

12 1195 Front Wheel Outer Bearing Retainer
Washer

13 374504 Nut, 3/4-16

14 390622-S Nut, Retainer 3/4

15 N642569-S36 Cotter Pin, must be installed as
shown

16 1131 Hub Grease Cap

17 2B164 Disc Brake Pad Anti-Rattle Clip

A 2C150 Pins must be installed so that the
retention tabs are touching spindle
surface, not the caliper surface (4
places). Pins may be installed from
either direction.
