Engine Controls

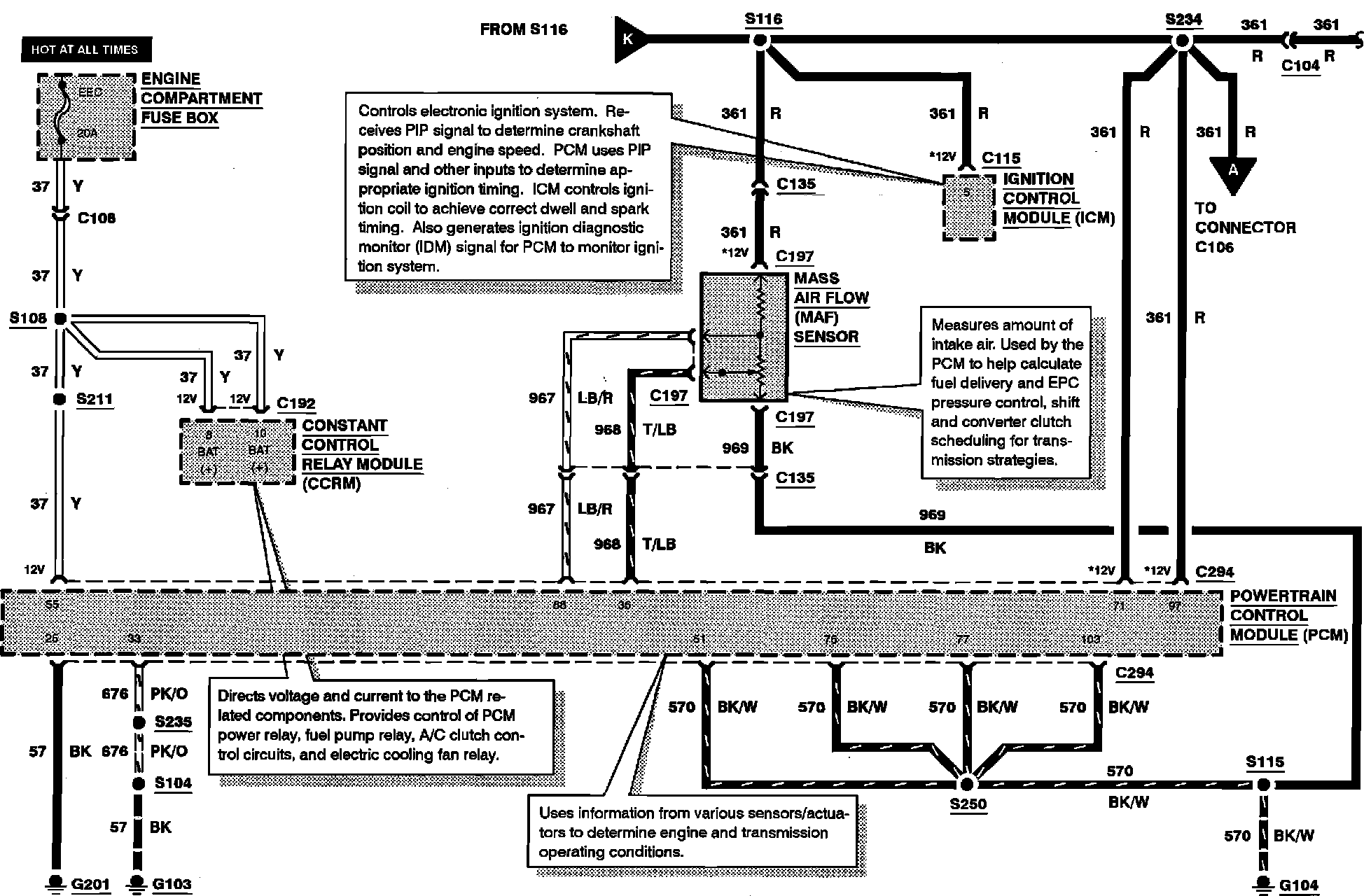

Electronic Engine Control:

CONSTANT CONTROL RELAY MODULE (CCRM)
EEC FUSE
IGNITION CONTROL MODULE (ICM)
MASS AIR FLOW (MAF) SENSOR
POWERTRAIN CONTROL MODULE (PCM)

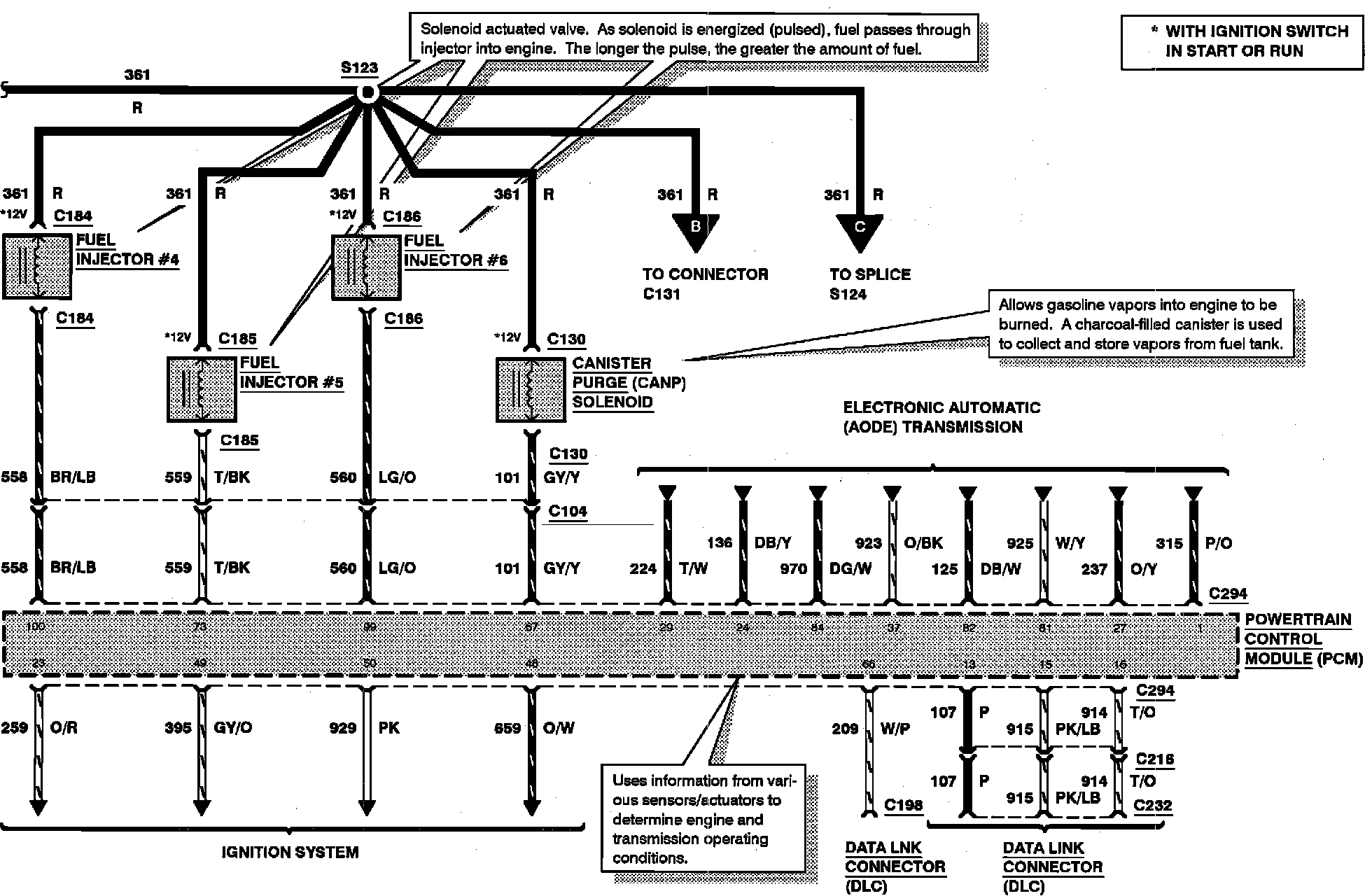

Electronic Engine Control:

CANISTER PURGE (CANP) SOLENOID
DATA LINK CONNECTOR (DLC)
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
POWERTRAIN CONTROL MODULE (PCM)

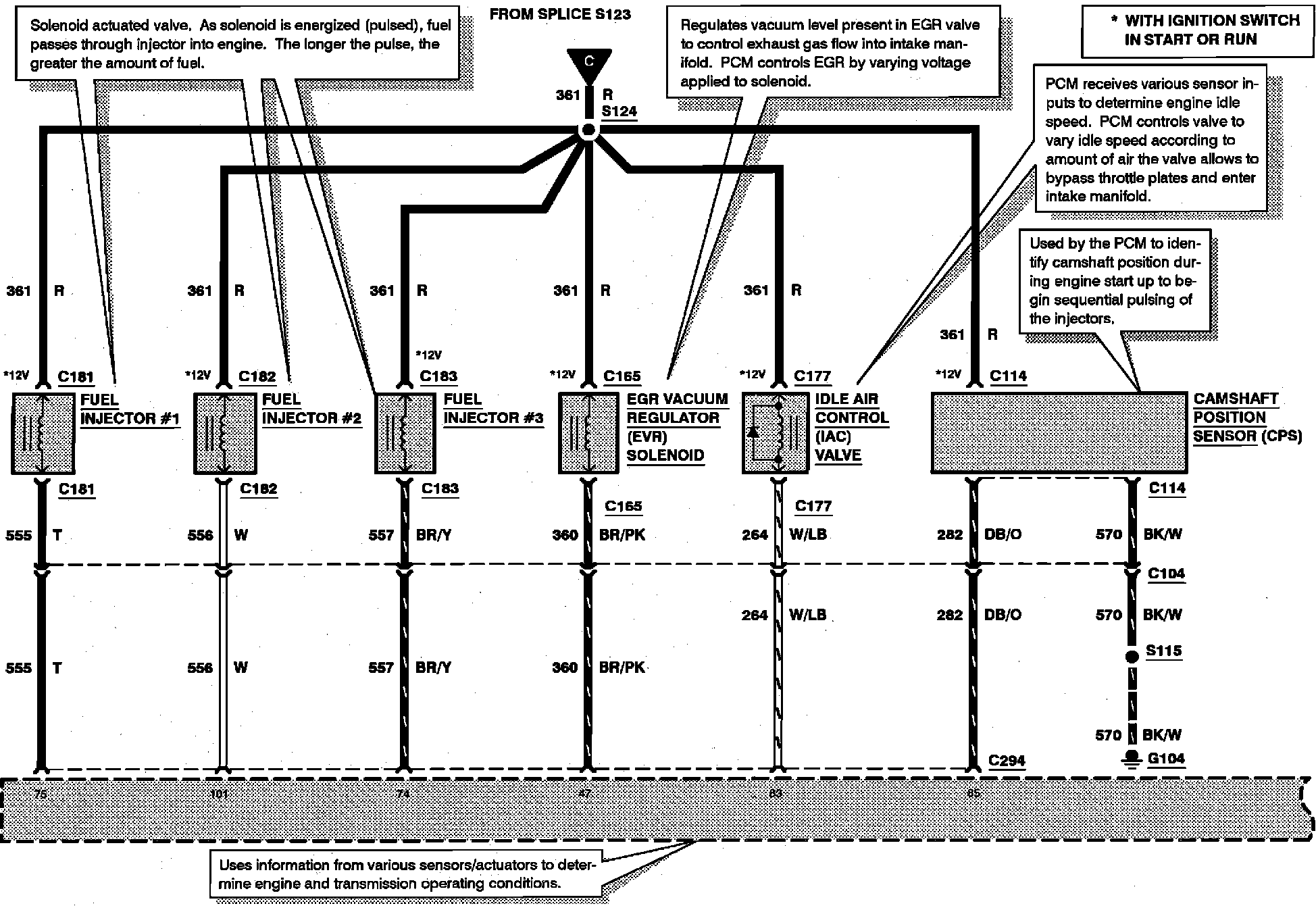

Electronic Engine Control:

CAMSHAFT POSITION SENSOR
EGR VACUUM (EVR) SOLENOID
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
IDLE AIR CONTROL (IAC) VALVE
POWERTRAIN CONTROL MODULE (PCM)

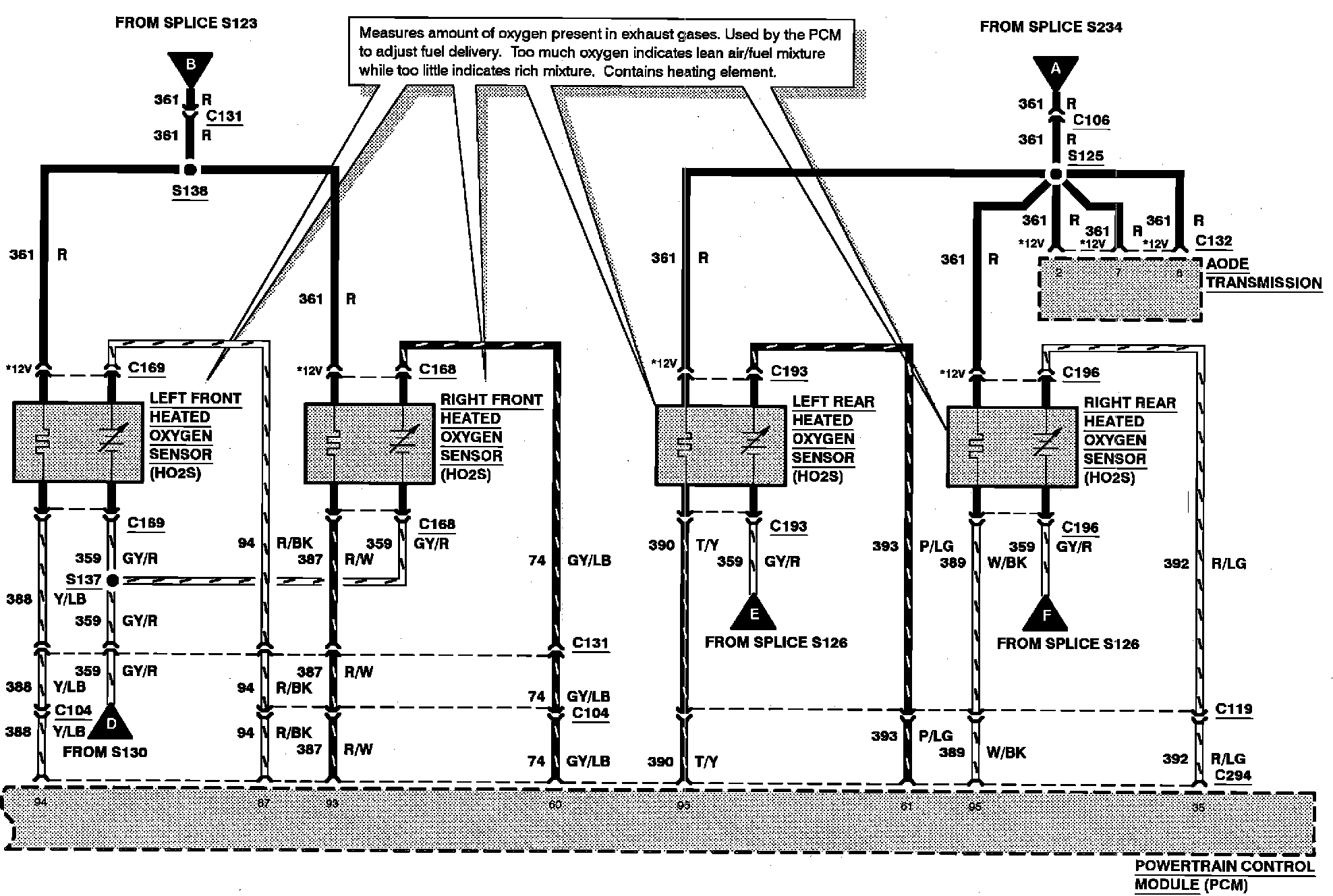

Electronic Engine Control:

AODE TRANSMISSION
LEFT FRONT HEATED OXYGEN SENSOR (HO2S)
LEFT REAR HEATED OXYGEN SENSOR (HO2S)
POWERTRAIN CONTROL MODULE (PCM)
RIGHT FRONT HEATED OXYGEN SENSOR (HO2S)
RIGHT REAR HEATED OXYGEN SENSOR (HO2S)

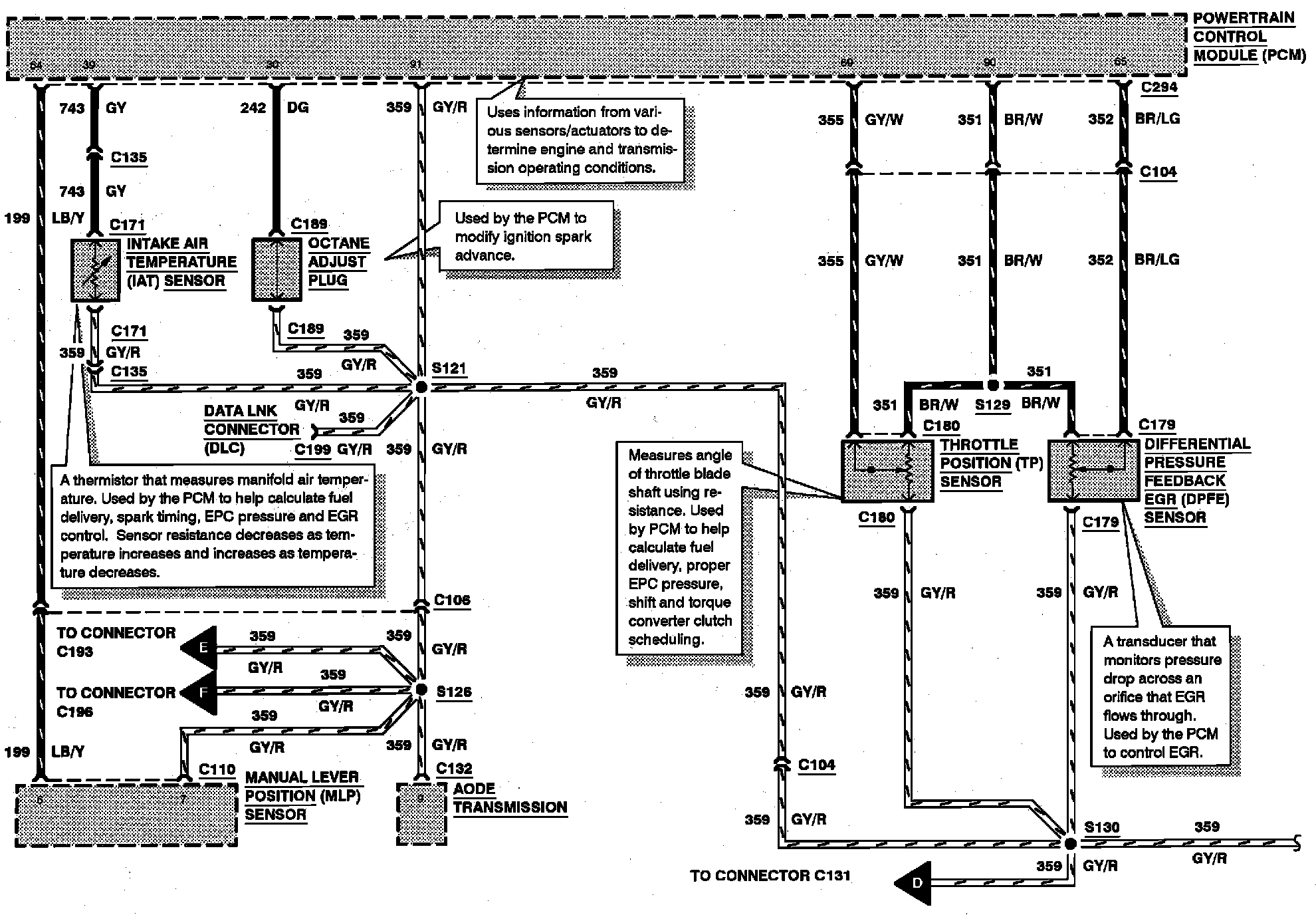

Electronic Engine Control:

AODE TRANSMISSION
DIFFERENTIAL PRESSURE FEEDBACK EGR (DPFE) SENSOR
INTAKE AIR TEMPERATURE (IAT) SENSOR
MANUAL LEVER POSITION (MLP) SENSOR
OCTANE ADJUST PLUG
POWERTRAIN CONTROL MODULE (PCM)
THROTTLE POSITION (TP) SENSOR

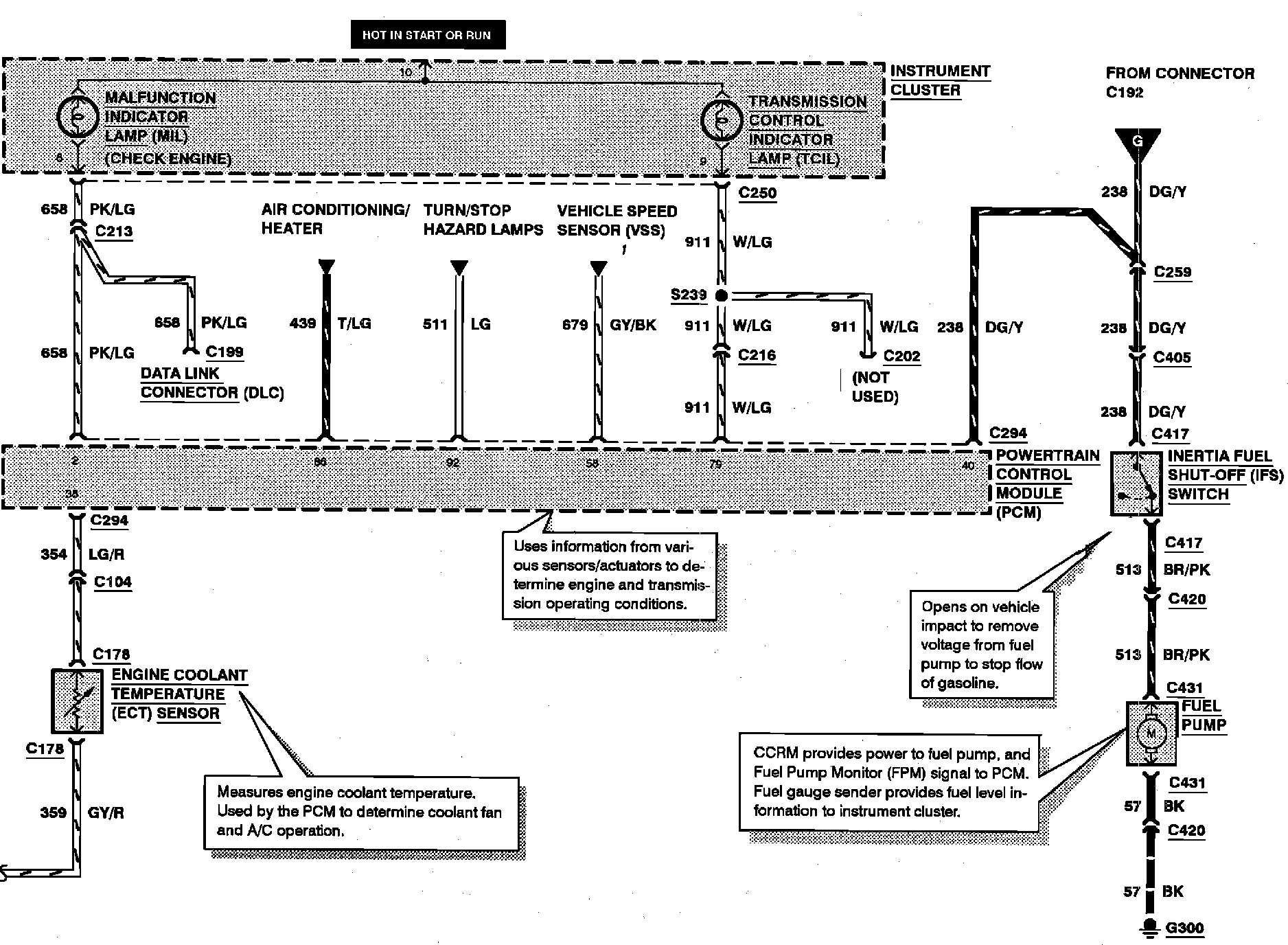

Electronic Engine Control:

ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL PUMP
INERTIA FUEL SHUT-OFF (IFS) SWITCH
MALFUNCTION INDICATOR LAMP (MIL) (CHECK ENGINE LAMP)
TRANSMISSION CONTROL INDICATOR LAMP (TCIL)
POWERTRAIN CONTROL MODULE (PCM)

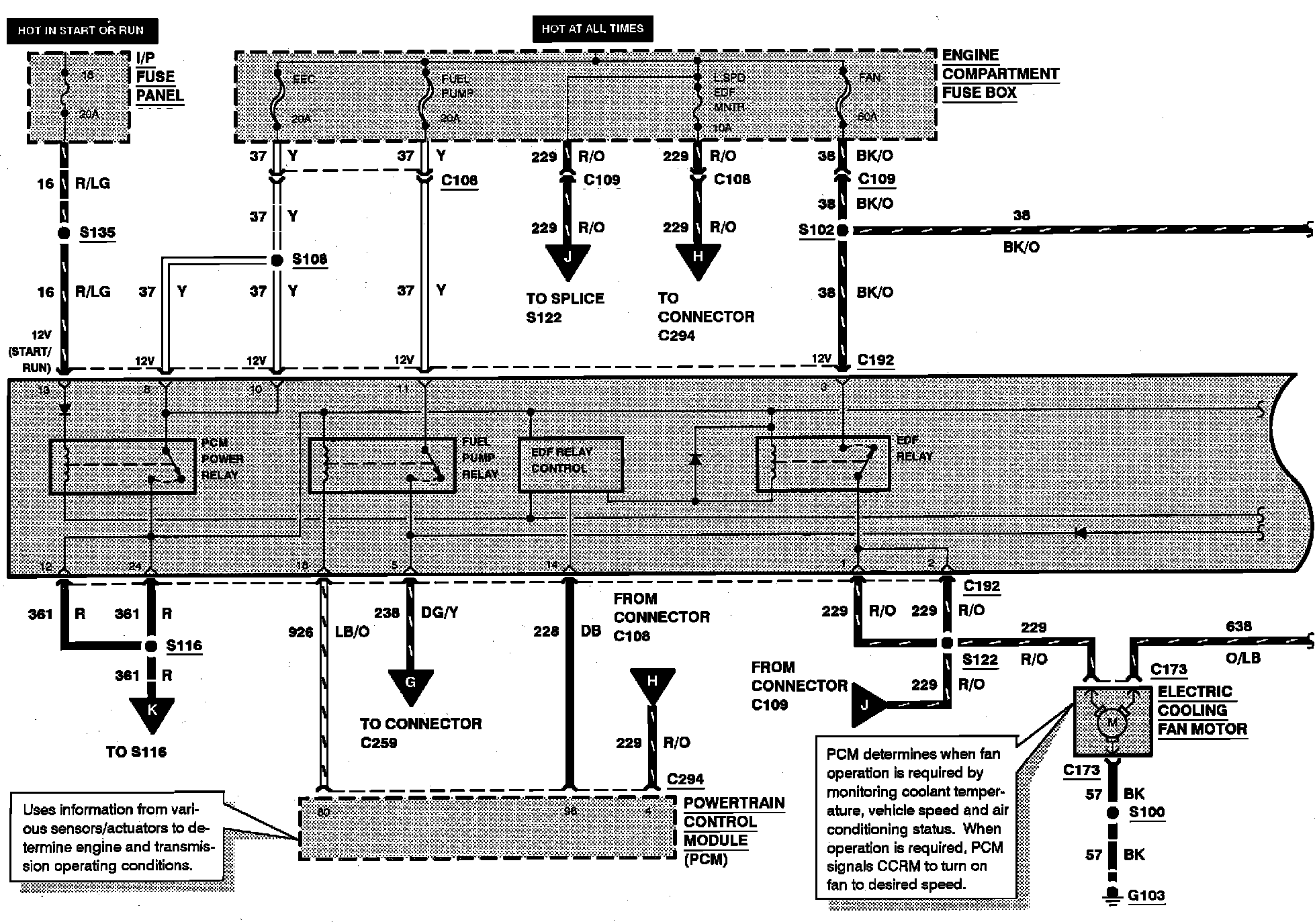

Electronic Engine Control:

CONSTANT CONTROL RELAY MODULE (CCRM)
ELECTRIC COOLING FAN MOTOR
EEC FUSE
FAN FUSE
FUEL PUMP FUSE
FUSE 18
L.SPD EDF MNTR FUSE
POWERTRAIN CONTROL MODULE (PCM)

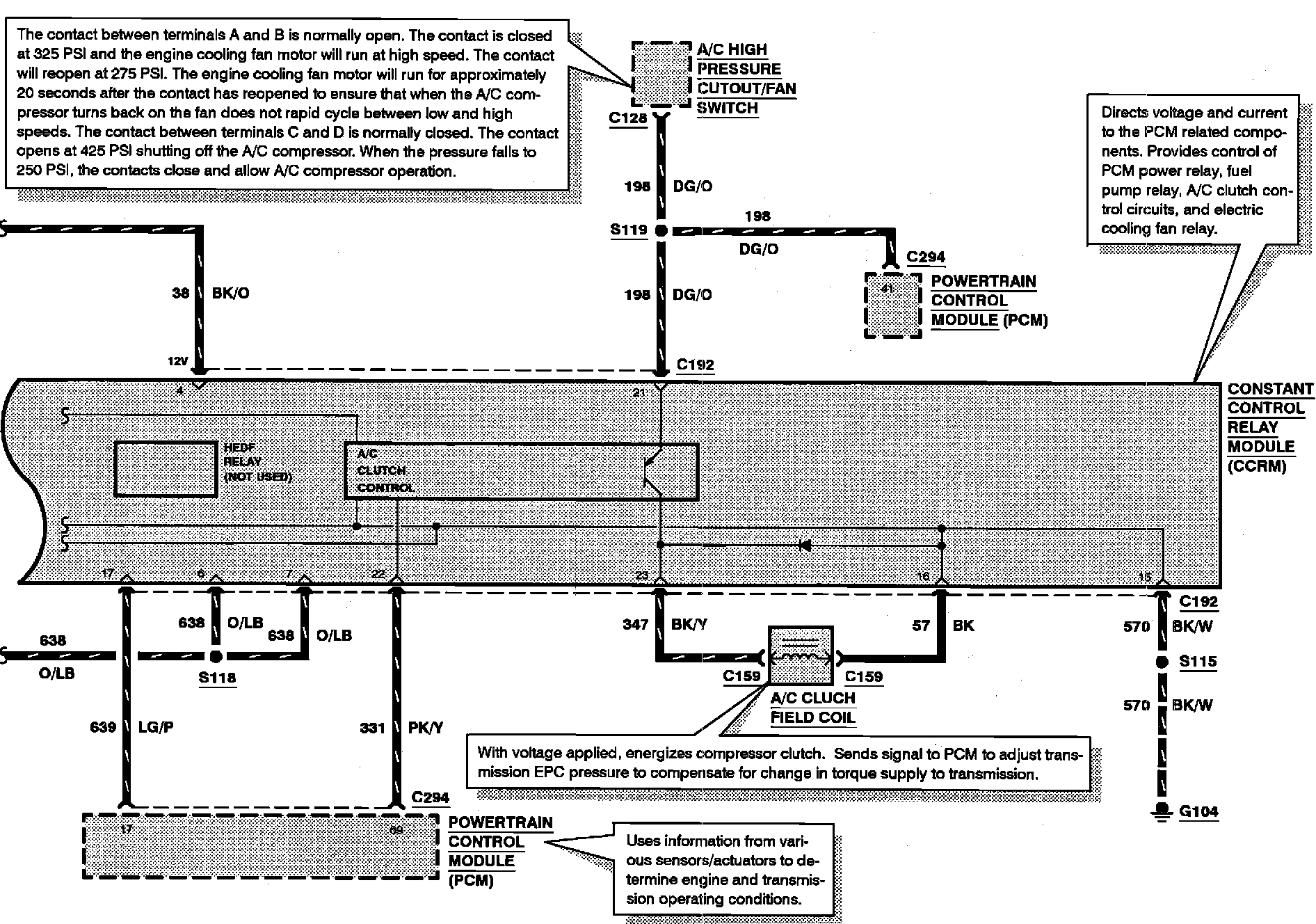

Electronic Engine Control:

A/C CLUTCH FIELD COIL
A/C HIGH PRESSURE CUTOUT/FAN SWITCH
CONSTANT CONTROL RELAY MODULE (CCRM)
POWERTRAIN CONTROL MODULE (PCM)
