Removal

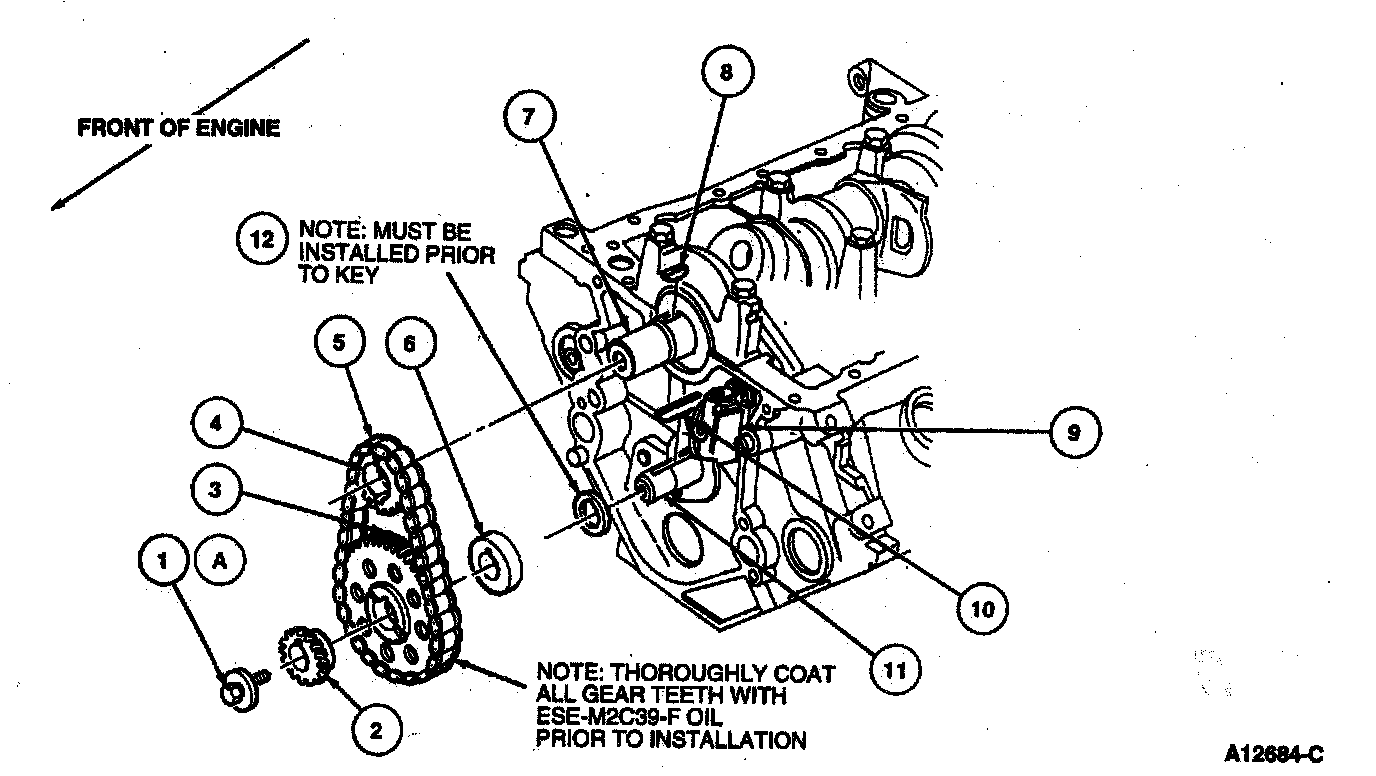

1. Remove engine front cover as outlined. Removal

2. Remove camshaft sprocket retainer bolt and washer from end of the camshaft.

3. Remove distributor drive gear.

NOTE: If crankshaft sprocket is difficult to remove, pry crankshaft sprocket off shaft using a pair of large screwdrivers positioned on both sides of the crankshaft sprocket.

Distributor Gear:

4. Remove camshaft sprocket, crankshaft sprocket and timing chain.

NOTE: The engine front cover contains the oil pump gears and water pump. If a new engine front cover is to be installed, remove the water pump and oil pump gears from the old engine front cover.

5. Remove timing chain vibration damper (three bolts) from front of cylinder block. (This requires pulling back on ratcheting mechanism, then installing pin through hole in bracket to relieve tension).
