Removal and Installation Procedures
Seat Belt Bolt Bit (#50 Torx)
T77L-2100-A
Special Service Tools Desired Removal and Installation 1.

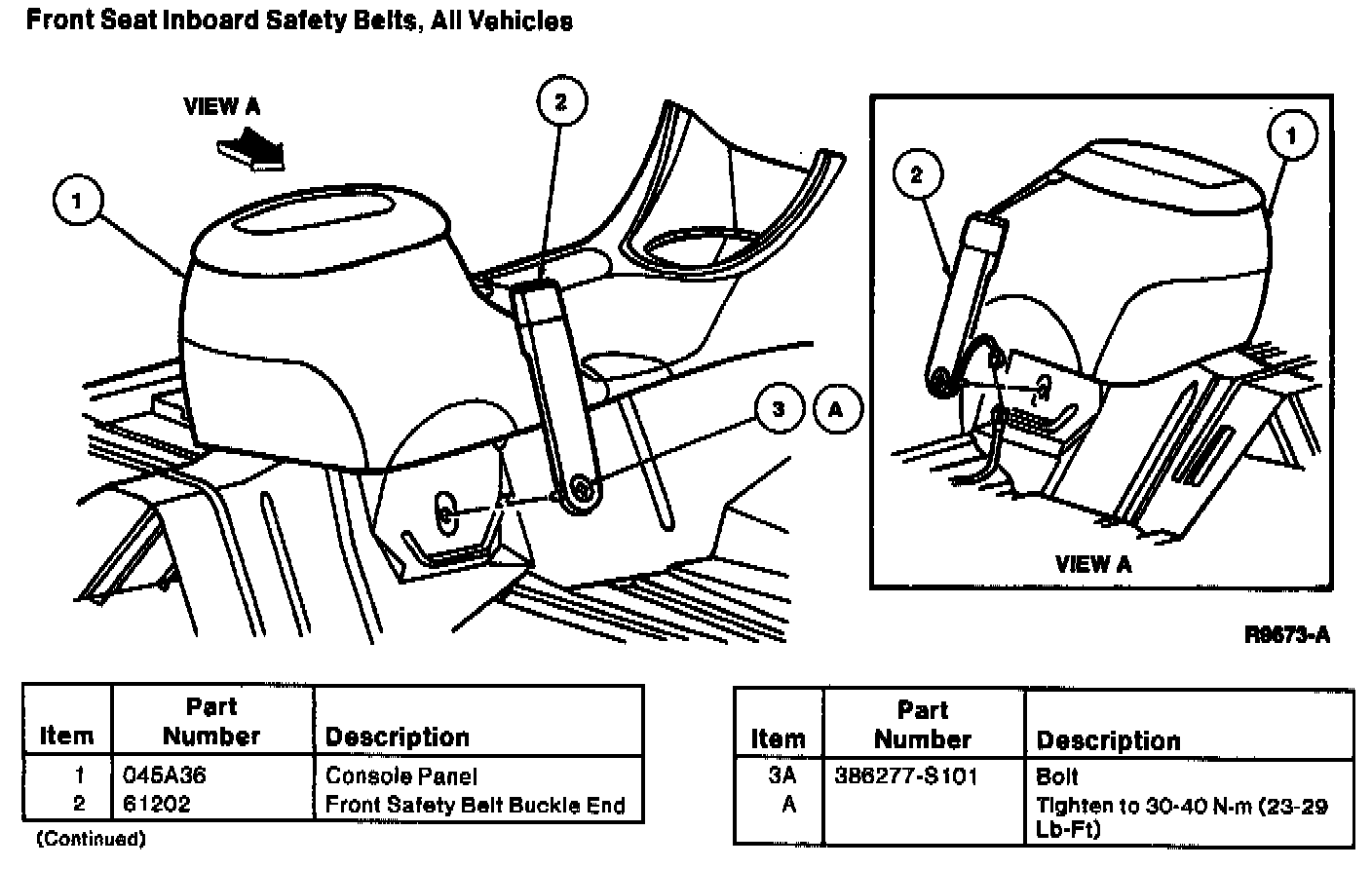

Position front seat forward to access front safety belt buckle end.
2.
Remove anchor retaining bolt. On LH side, disconnect safety belt warning chime connector.
3.
To install, reverse Removal procedure. Tighten anchor bolts to
30-40 N.m (23-29 lb ft).
