Air Injection: Adjustments

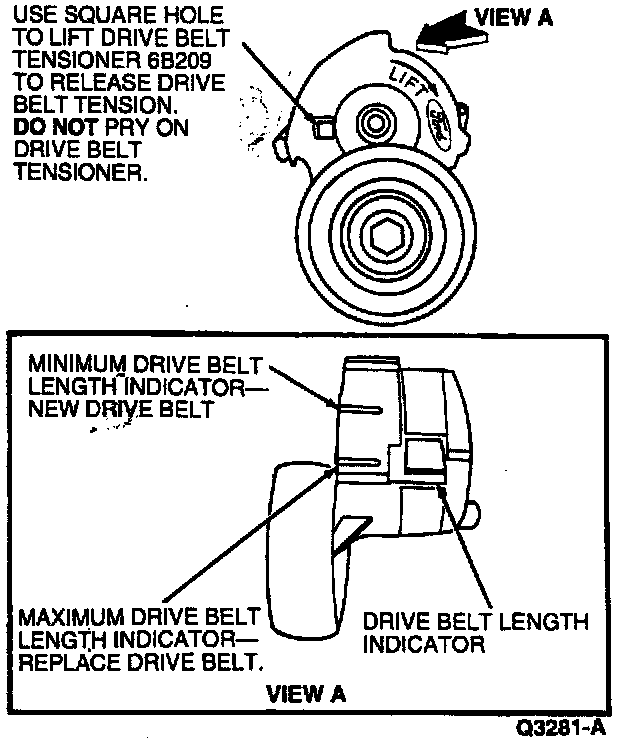

Drive Belt/Tensioner Indicator Marks:

Automatic drive belt tensioners are spring loaded devices which set and maintain the drive belt tension. The drive belt does not require tension adjustment for the life of the drive belt. Automatic drive belt tensioners have belt wear indicator marks. If the drive belt length indicator mark is not above the one percent drive belt strength indicator, the drive belt is worn or an incorrect drive belt has been installed. Replace drive belt as outlined.

NOTE: The indicator mark inspection is done with the engine OFF at 96,000 km (60,000 mile) intervals.
