D6 Check For Shorts In Module Harness Connector

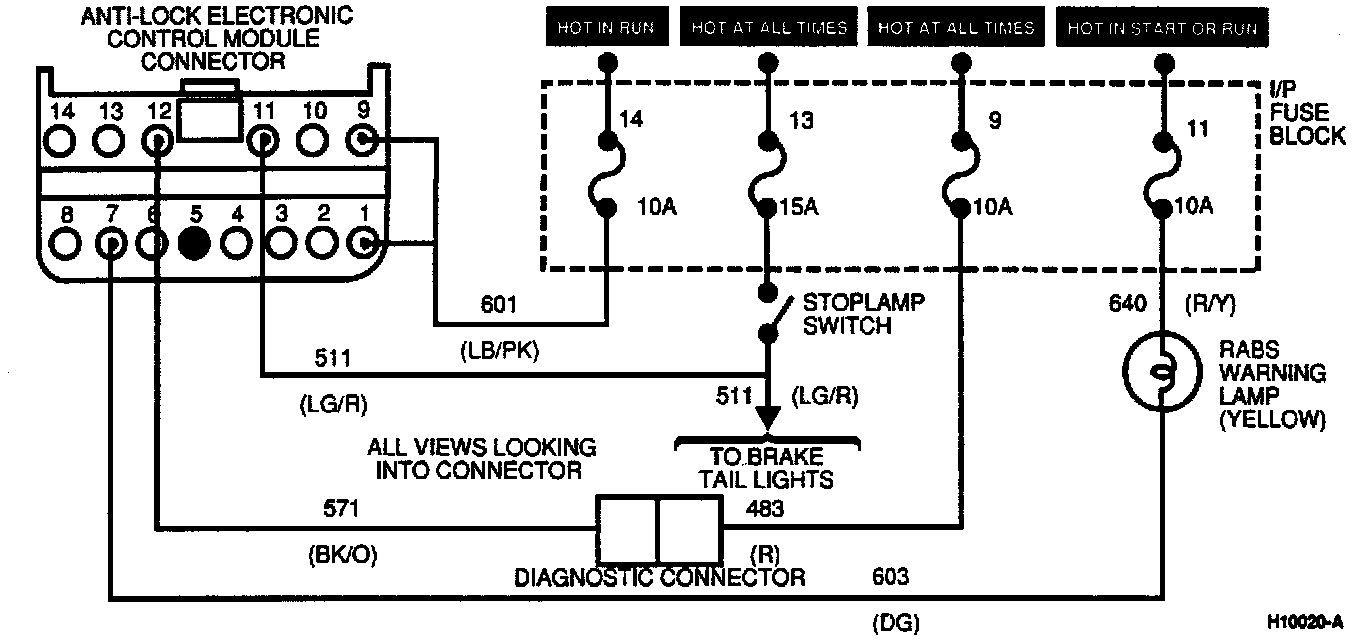

Pinpoint Test Diagram:





- Turn the ignition to the ON position.

- Measure the voltage between RABS harness connector Pin 1 (or Pin 9) and chassis ground.

- Is the REAR ABS light on?

YES -- Check for short to ground in Circuit 603 (DG). reconnect the anti-lock electronic control module. Repeat System Pre-Check. Initial Inspection and Diagnostic Overview

NO -- Leave anti-lock electronic control module disconnected. Go to D7. [1][2]D7 - Check Circuit 571 (BK/O) Continuity
