Engine Controls

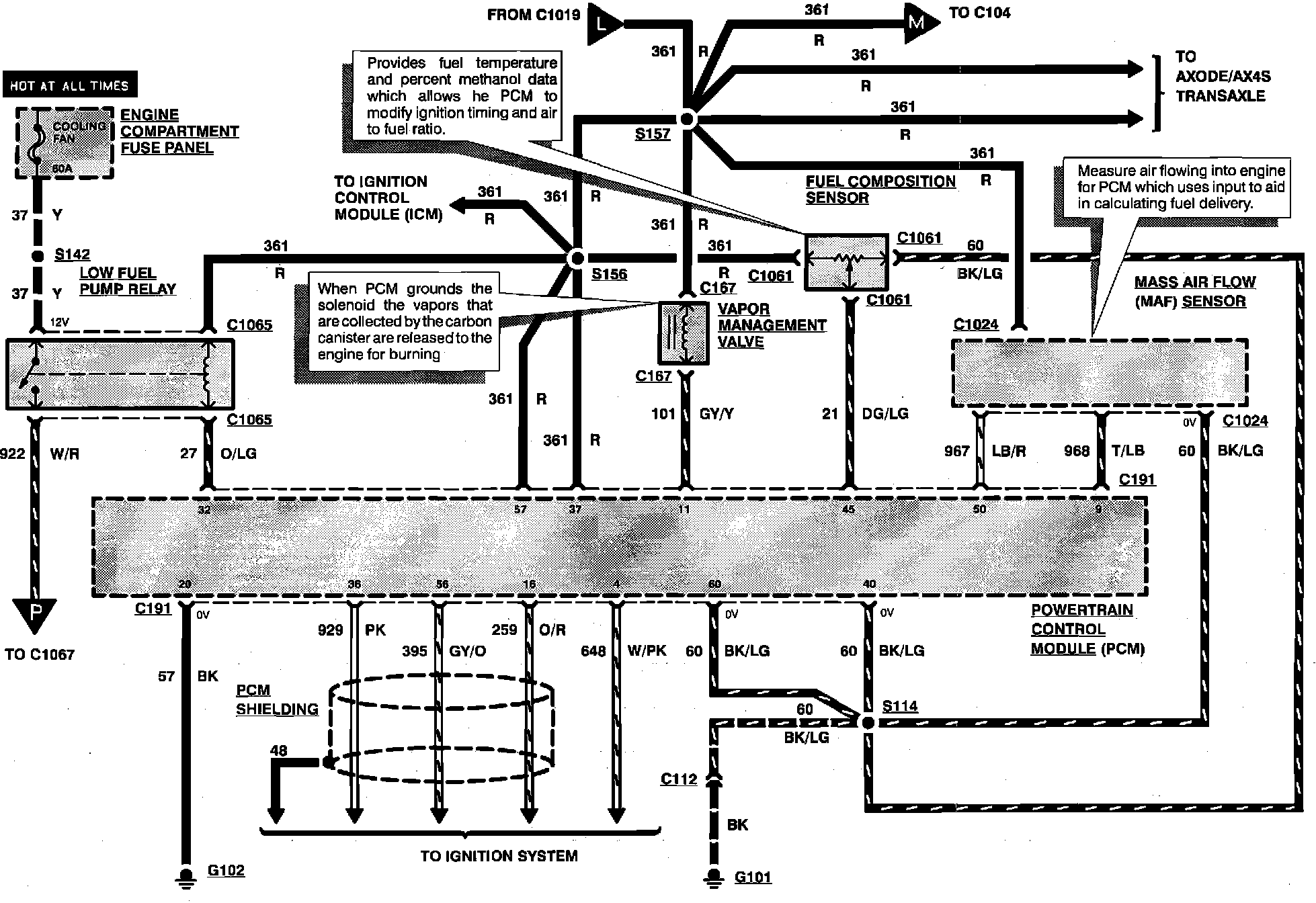

Engine Controls:





ENGINE COMPARTMENT FUSE PANEL
FUEL COMPOSITION SENSOR
LOW FUEL PUMP RELAY
MASS AIR FLOW SENSOR
POWERTRAIN CONTROL MODULE
VAPOR MANAGEMENT VALVE

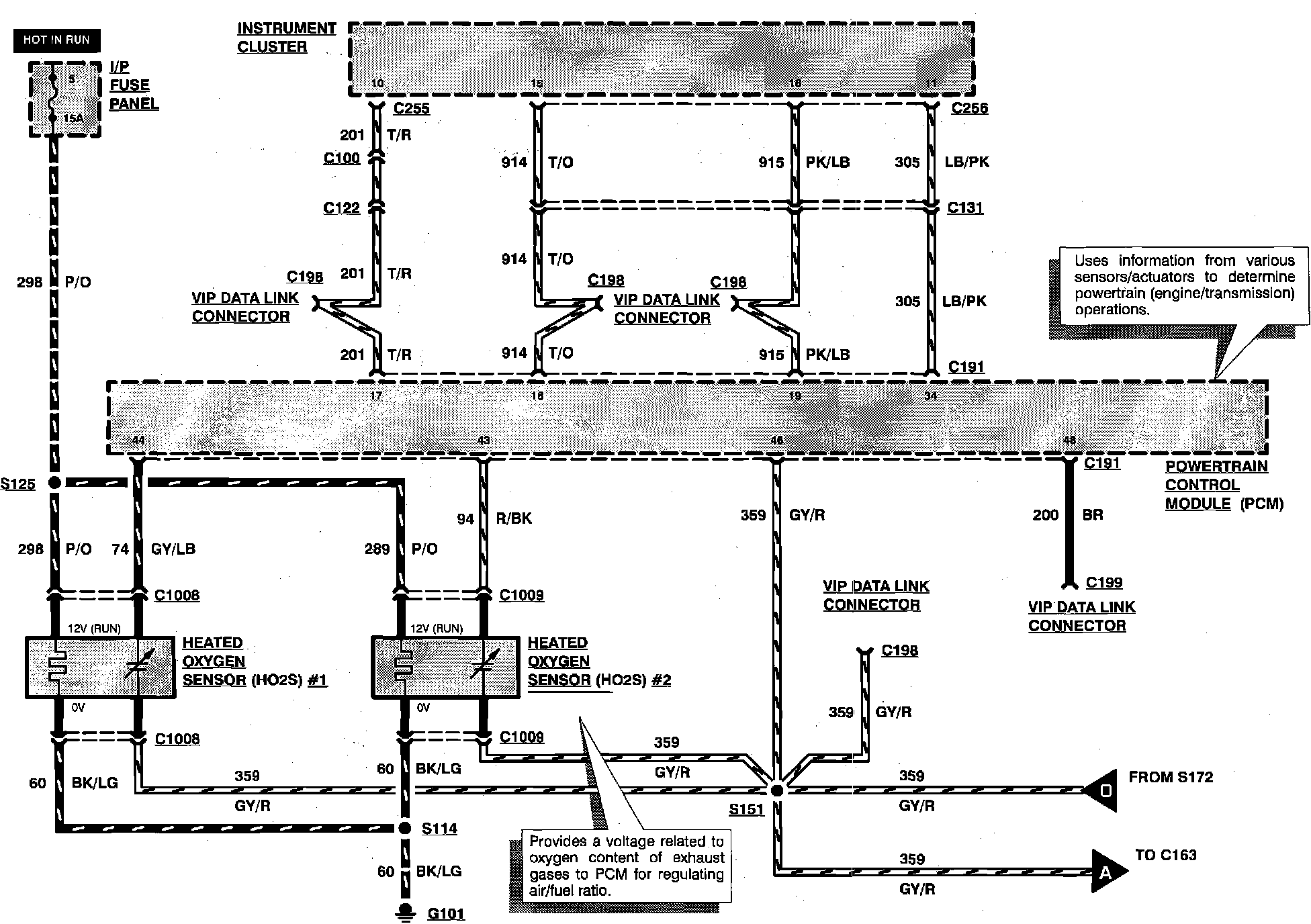

Engine Controls:





HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
INSTRUMENT CLUSTER
INSTRUMENT PANEL FUSE PANEL
POWERTRAIN CONTROL MODULE
VIP DATA LINK CONNECTOR

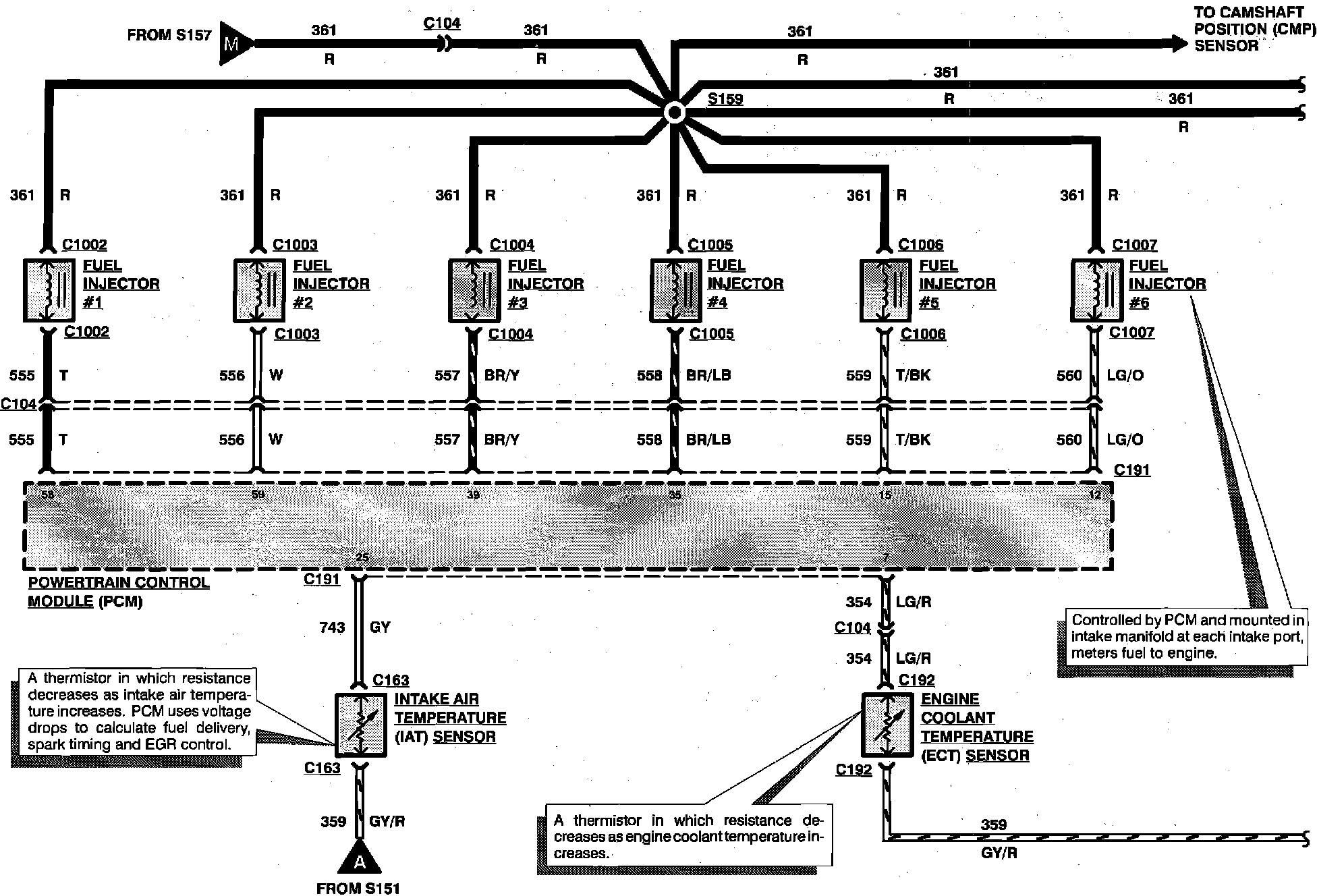

Engine Controls:





ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTORS
INTAKE AIR TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE

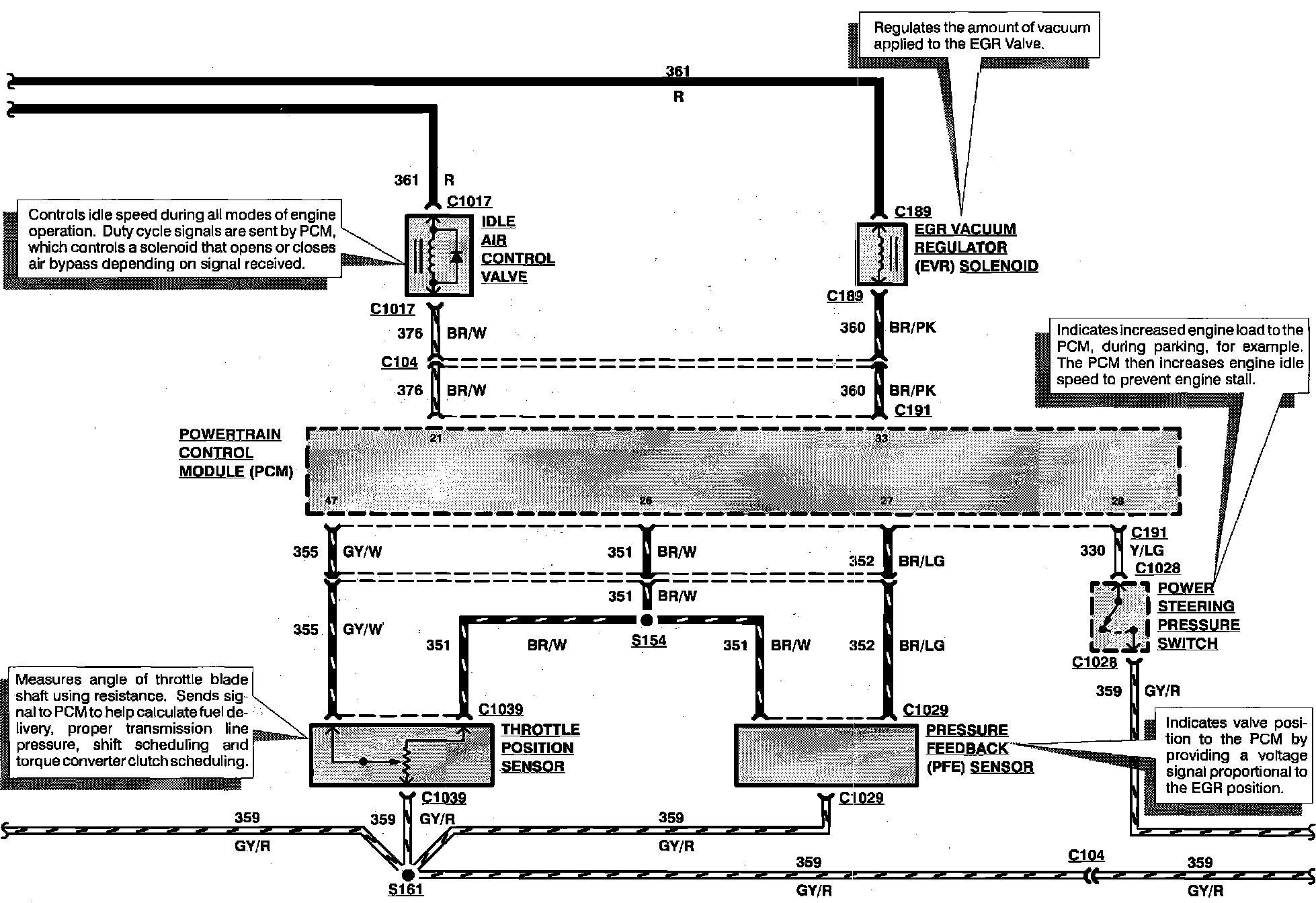

Engine Controls:





EGR VACUUM REGULATOR SOLENOID
IDLE AIR CONTROL VALVE
POWER STEERING PRESSURE SWITCH
POWERTRAIN CONTROL MODULE
PRESSURE FEEDBACK SENSOR
THROTTLE POSITION SENSOR

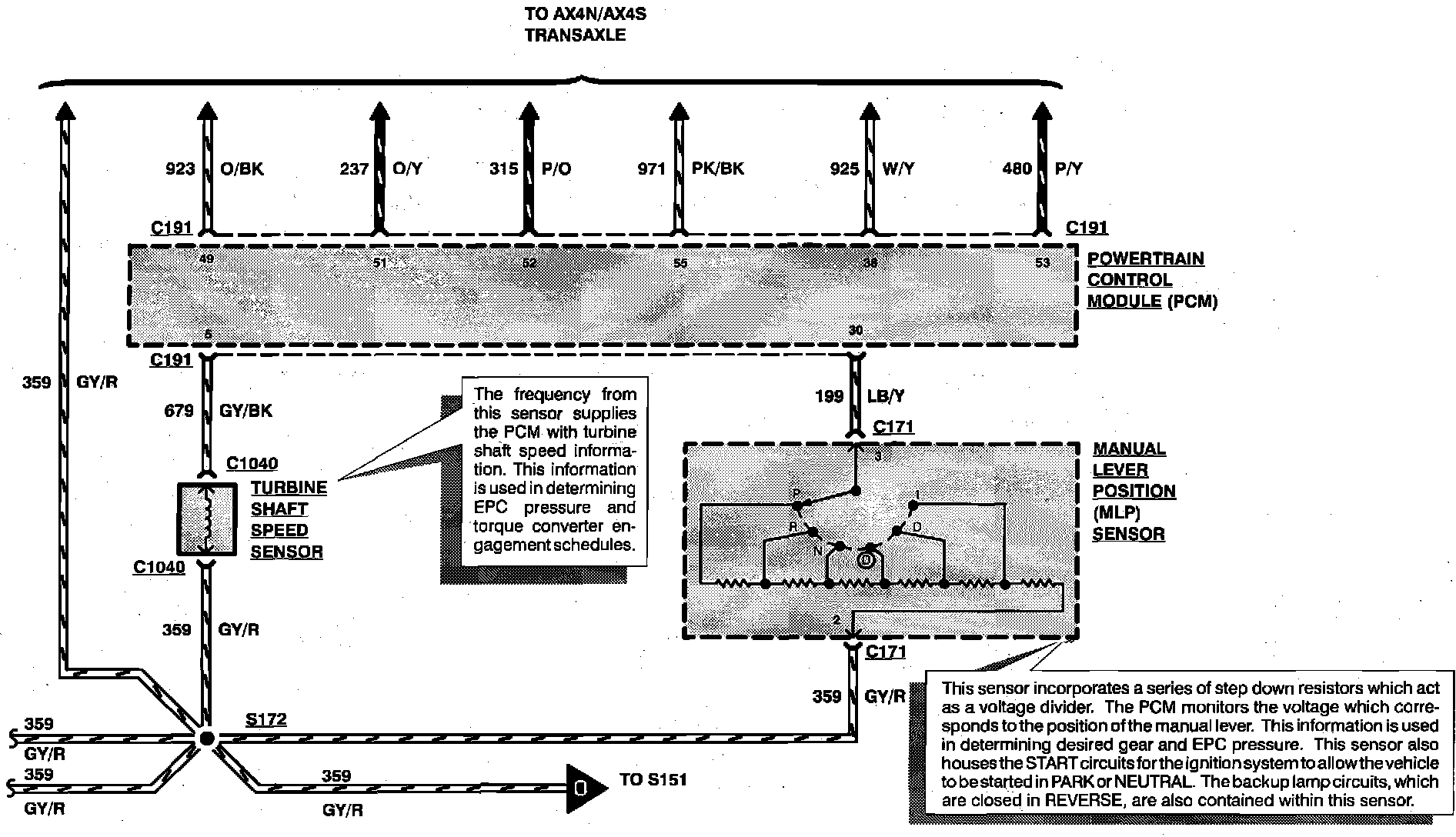

Engine Controls:





MANUAL LEVER POSITION SENSOR
POWERTRAIN CONTROL MODULE
TURBINE SHAFT SPEED SENSOR

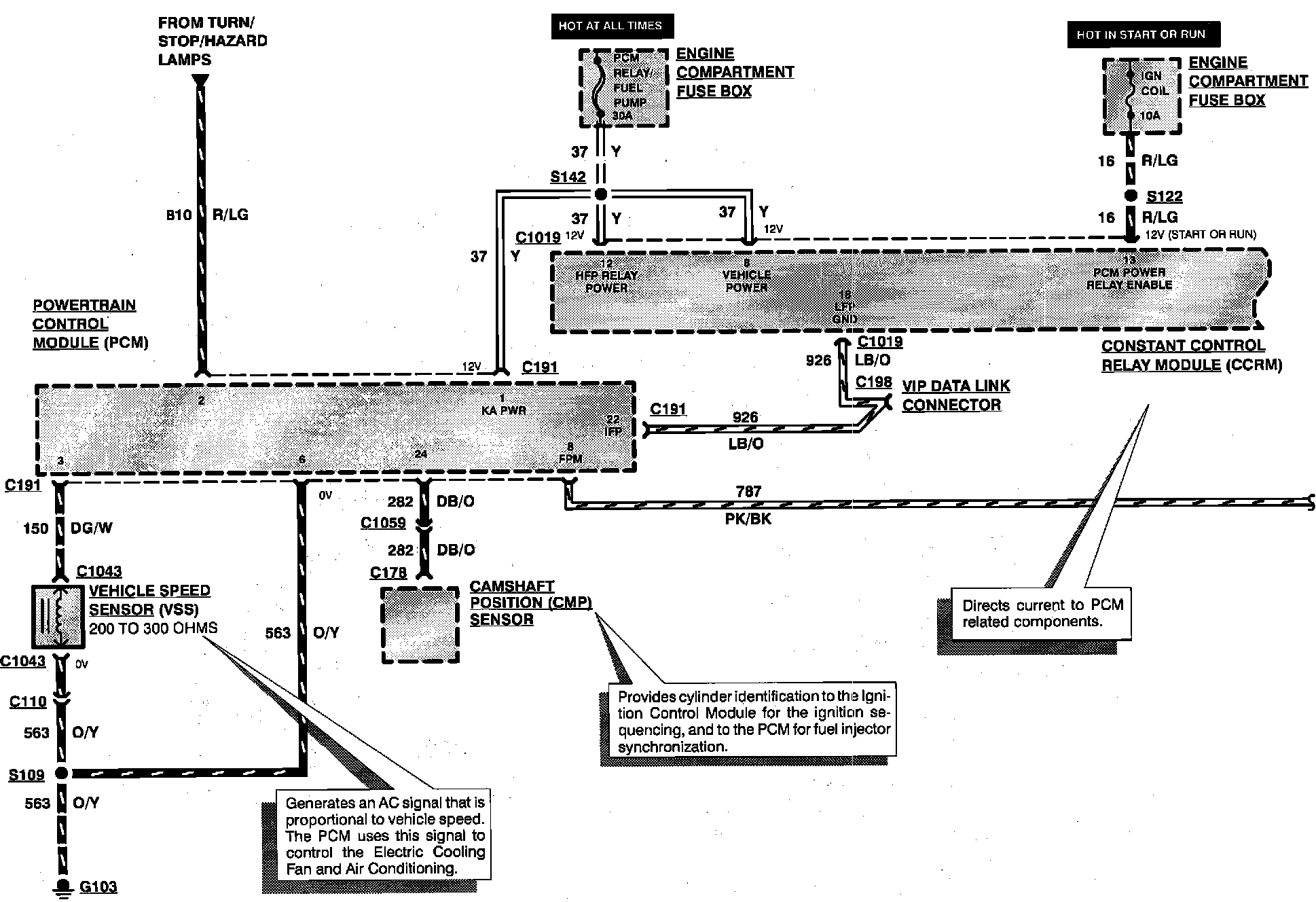

Engine Controls:





CAMSHAFT POSITION SENSOR
CONSTANT CONTROL RELAY MODULE
ENGINE COMPARTMENT FUSE BOX
POWERTRAIN CONTROL MODULE
VEHICLE SPEED SENSOR
VIP DATA LINK CONNECTOR

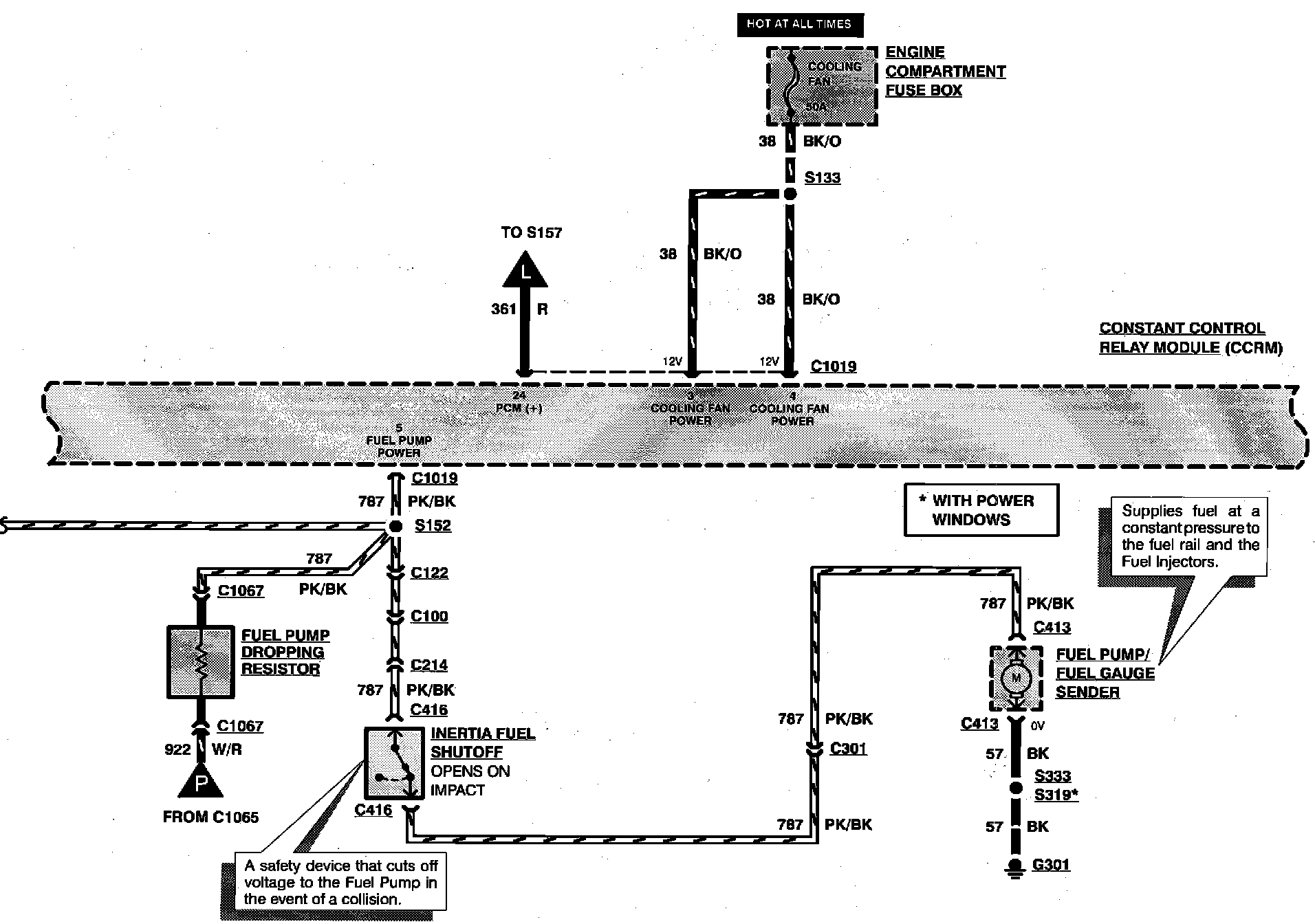

Engine Controls:





CONSTANT CONTROL RELAY MODULE
ENGINE COMPARTMENT FUSE BOX
FUEL PUMP DROPPING RESISTOR
FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUTOFF

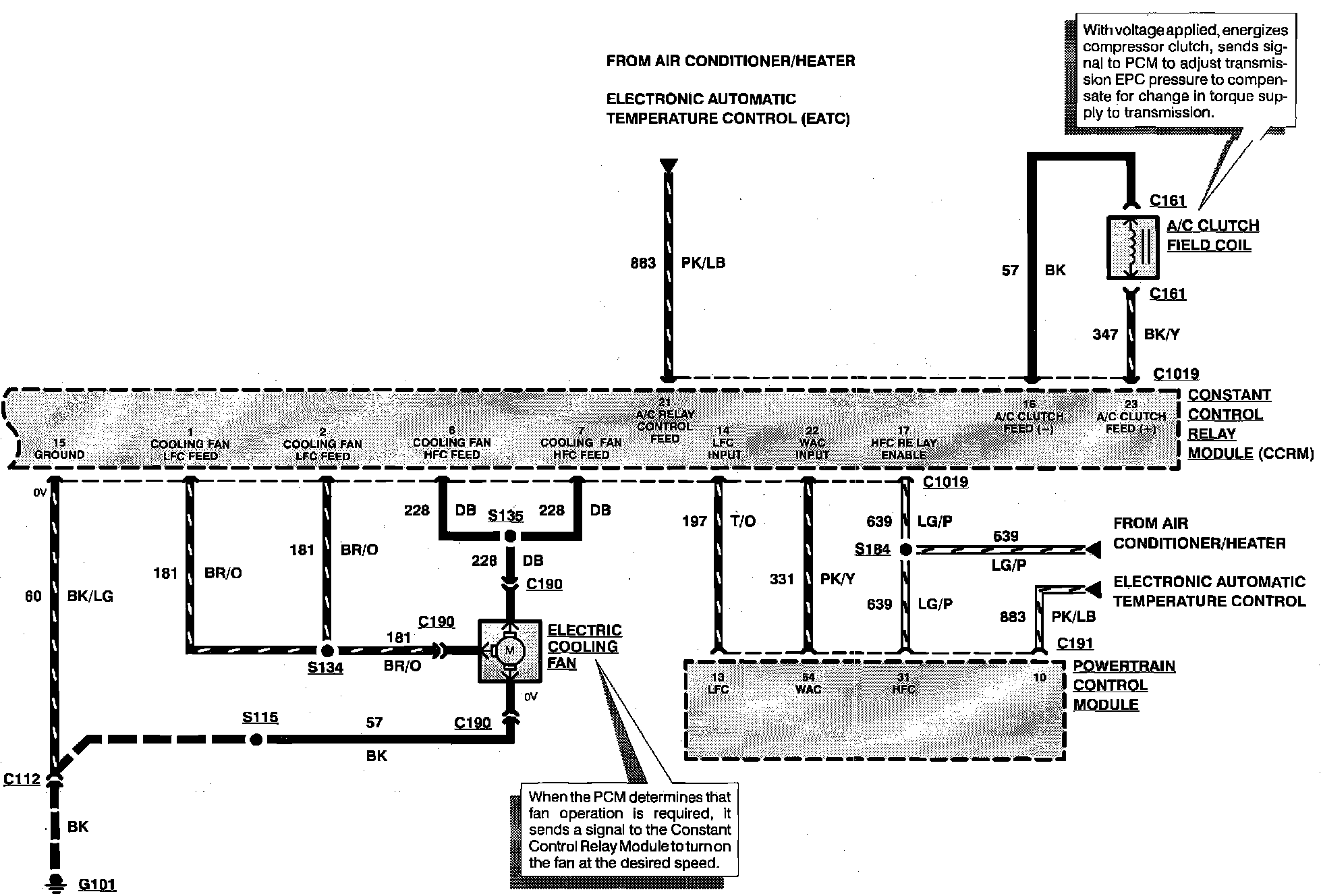

Engine Controls:





A/C CLUTCH FIELD COIL
CONSTANT CONTROL RELAY MODULE
ELECTRIC COOLING FAN
POWERTRAIN CONTROL MODULE
