Air Temperature Sensor ( Ambient / Intake ): Service and Repair

Intake Air Temperature Sensor:

REMOVAL

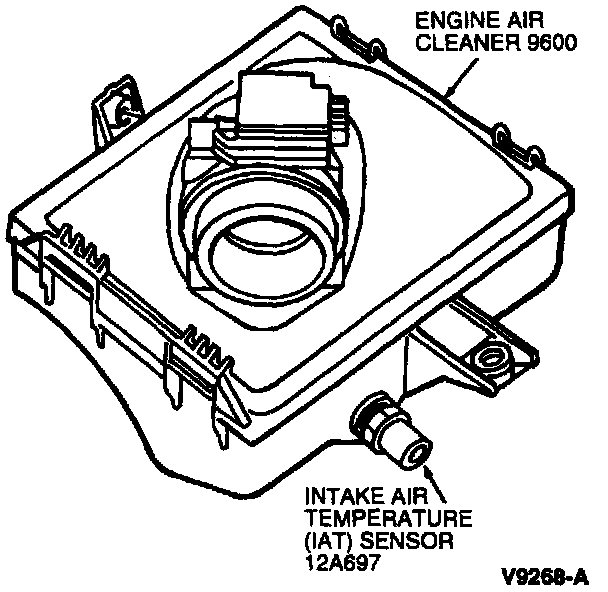

NOTE: The Intake Air Temperature (IAT) sensor is located in the engine air cleaner body. When installing, use care not to damage plastic threads.

1. Disconnect battery ground cable.

2. Disconnect engine control sensor wiring from IAT sensor.

3. Turn IAT sensor 90 degrees counterclockwise and remove from engine air cleaner body.

4. Remove IAT sensor from IAT sensor adapter.

INSTALLATION

To install, reverse removal procedure.

NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the powertrain control module relearns its adaptive strategy. The vehicle may need to be driven 10 miles or more to relearn the adaptive strategy.
