Engine Controls

Engine Controls:

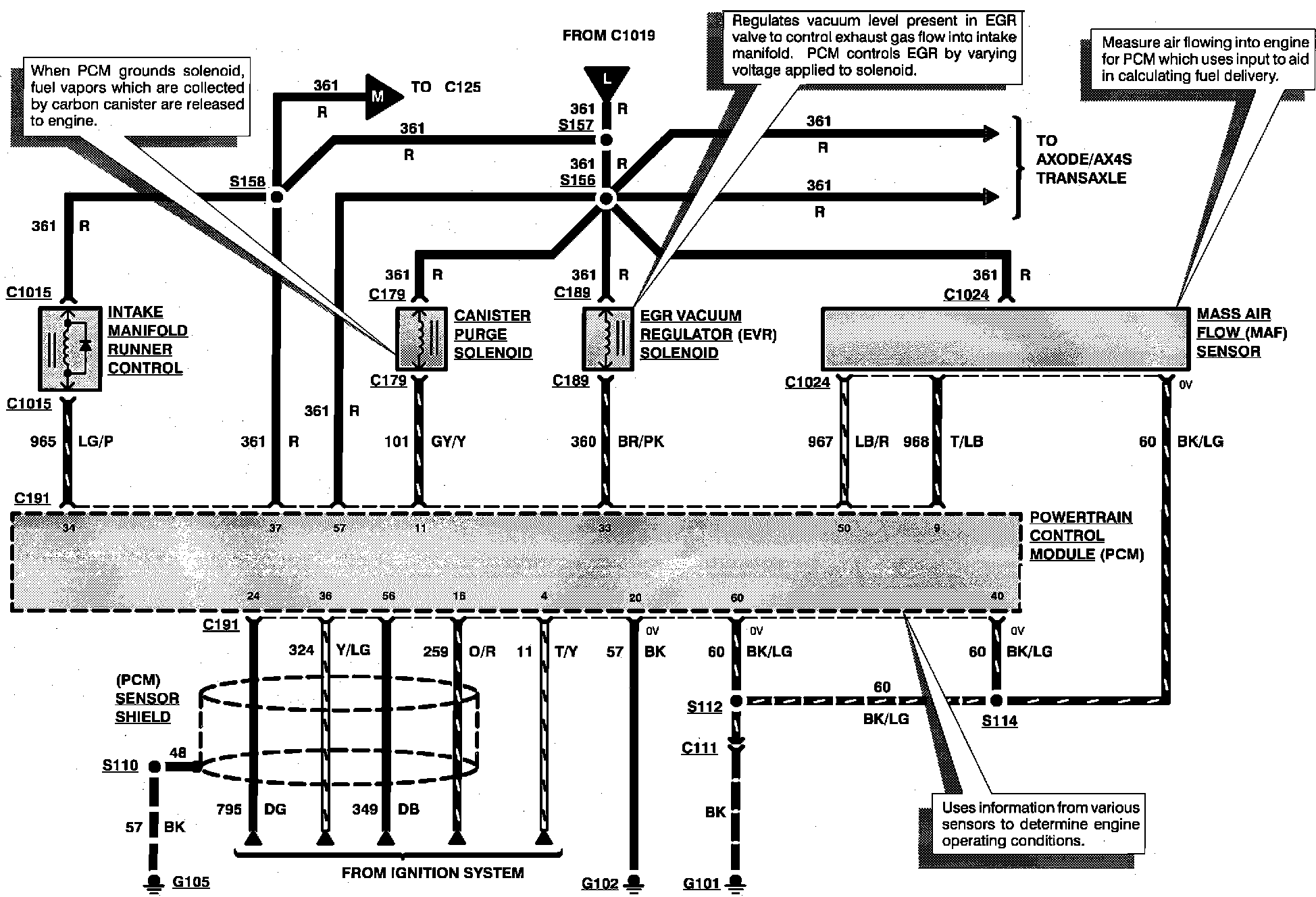

CANISTER PURGE SOLENOID
EGR VACUUM REGULATOR SOLENOID
INTAKE MANIFOLD RUNNER CONTROL
MASS AIR FLOW SENSOR
POWERTRAIN CONTROL MODULE



Engine Controls:

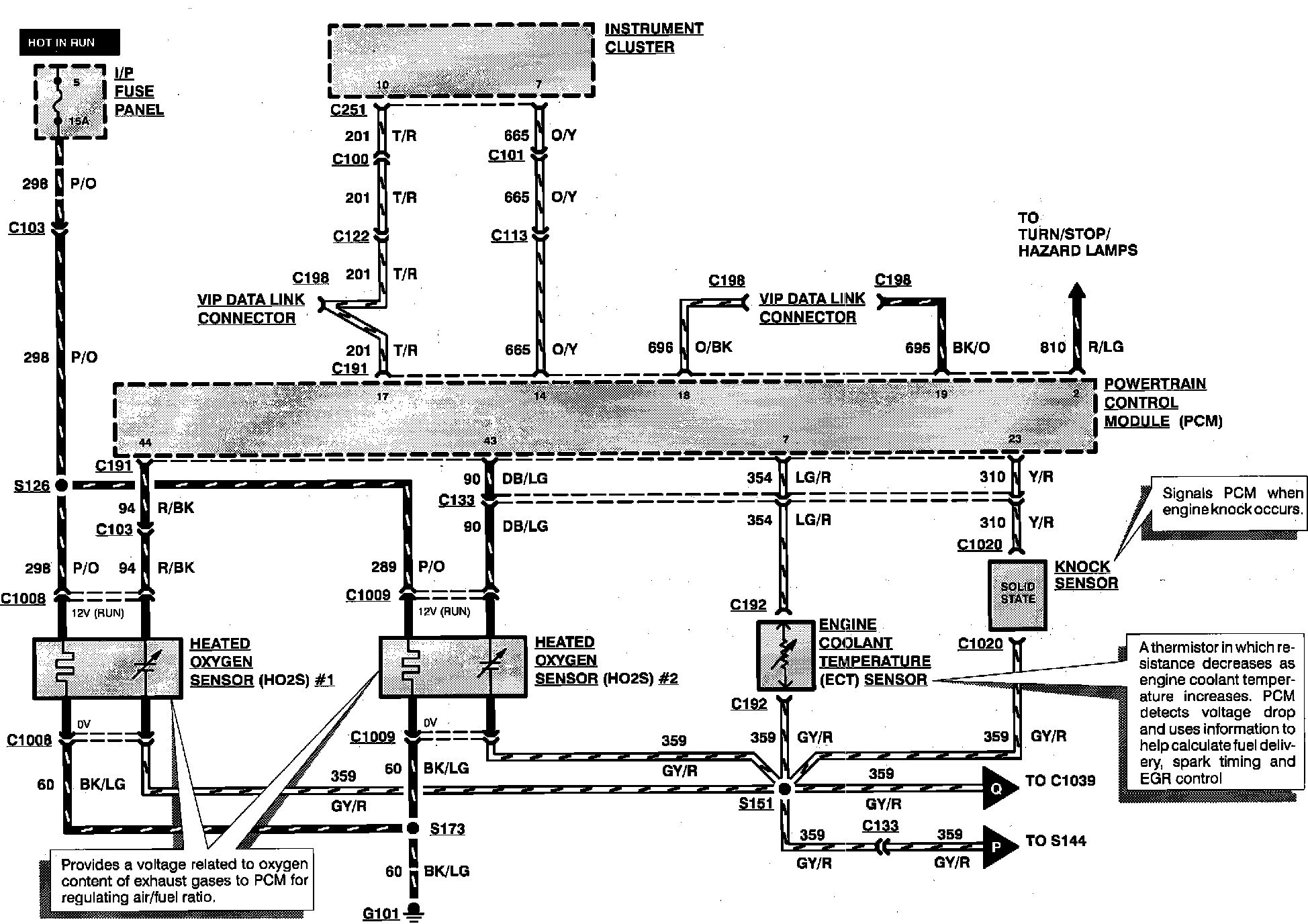

ENGINE COOLANT TEMPERATURE SENSOR
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
INSTRUMENT CLUSTER
KNOCK SENSOR
POWERTRAIN CONTROL MODULE



Engine Controls:

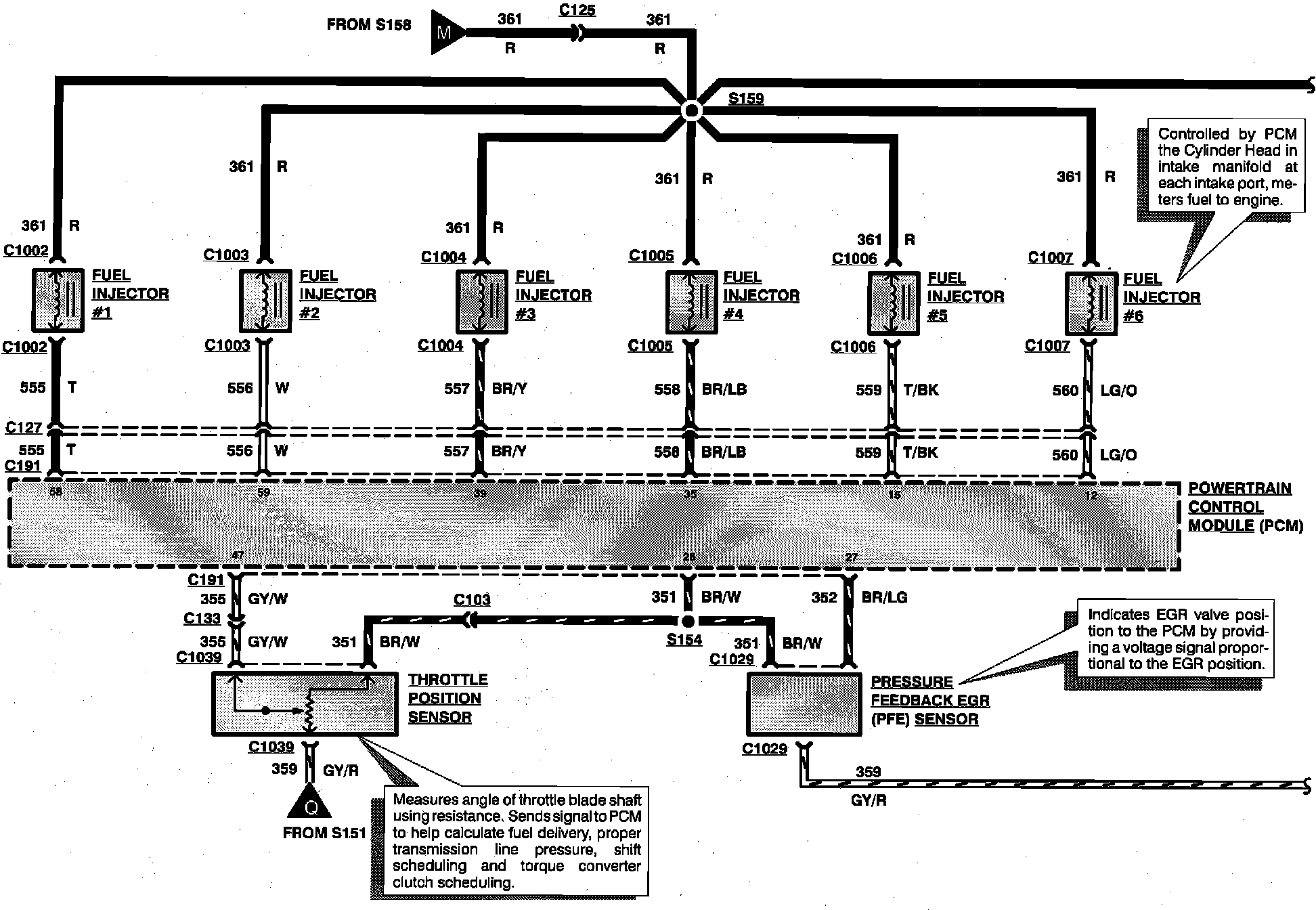

FUEL INJECTORS
POWERTRAIN CONTROL MODULE
PRESSURE FEEDBACK EGR SENSOR
THROTTLE POSITION SENSOR



Engine Controls:

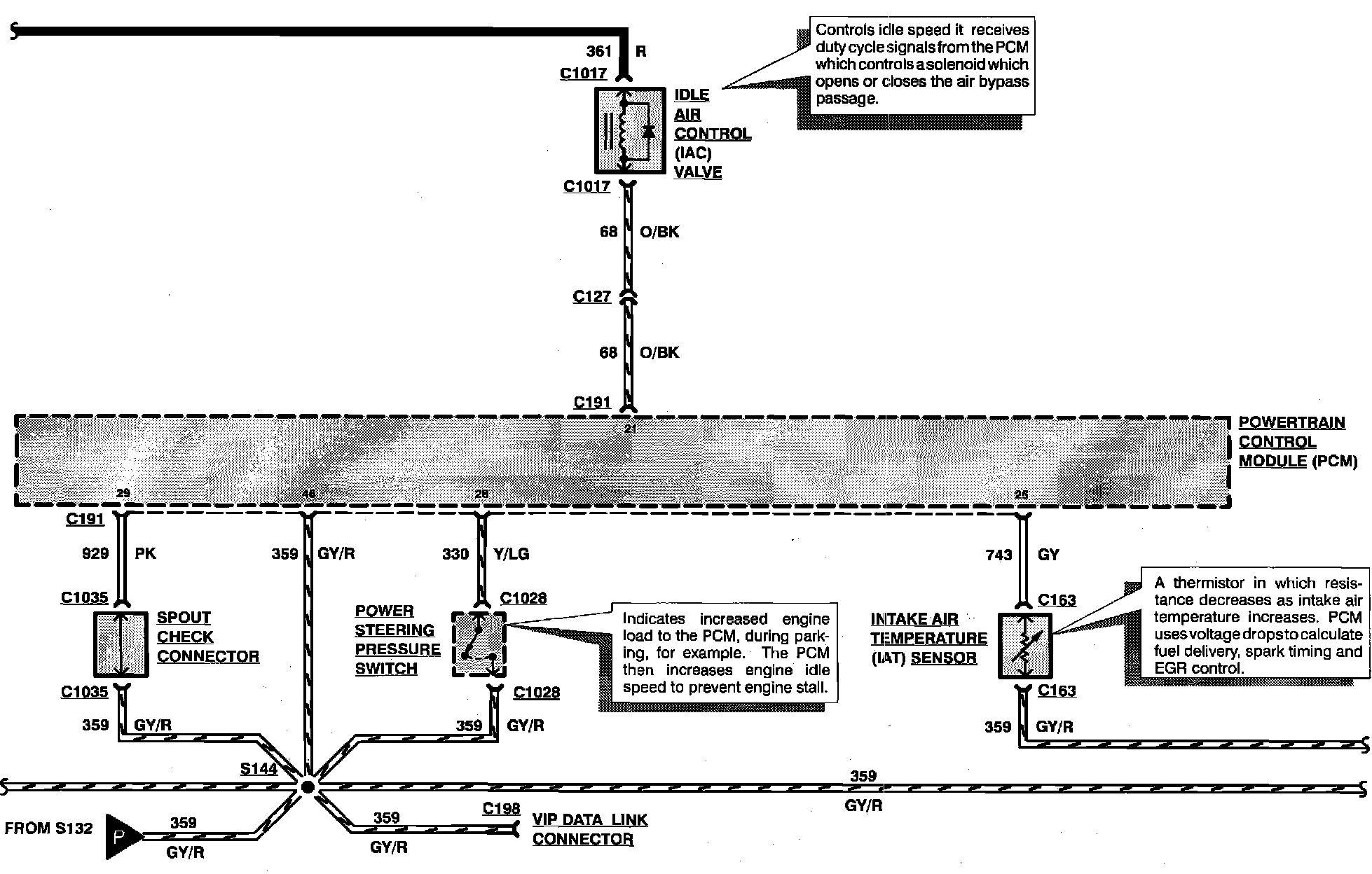

IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE
POWER STEERING PRESSURE SWITCH
SPOUT CHECK CONNECTOR



Engine Controls:

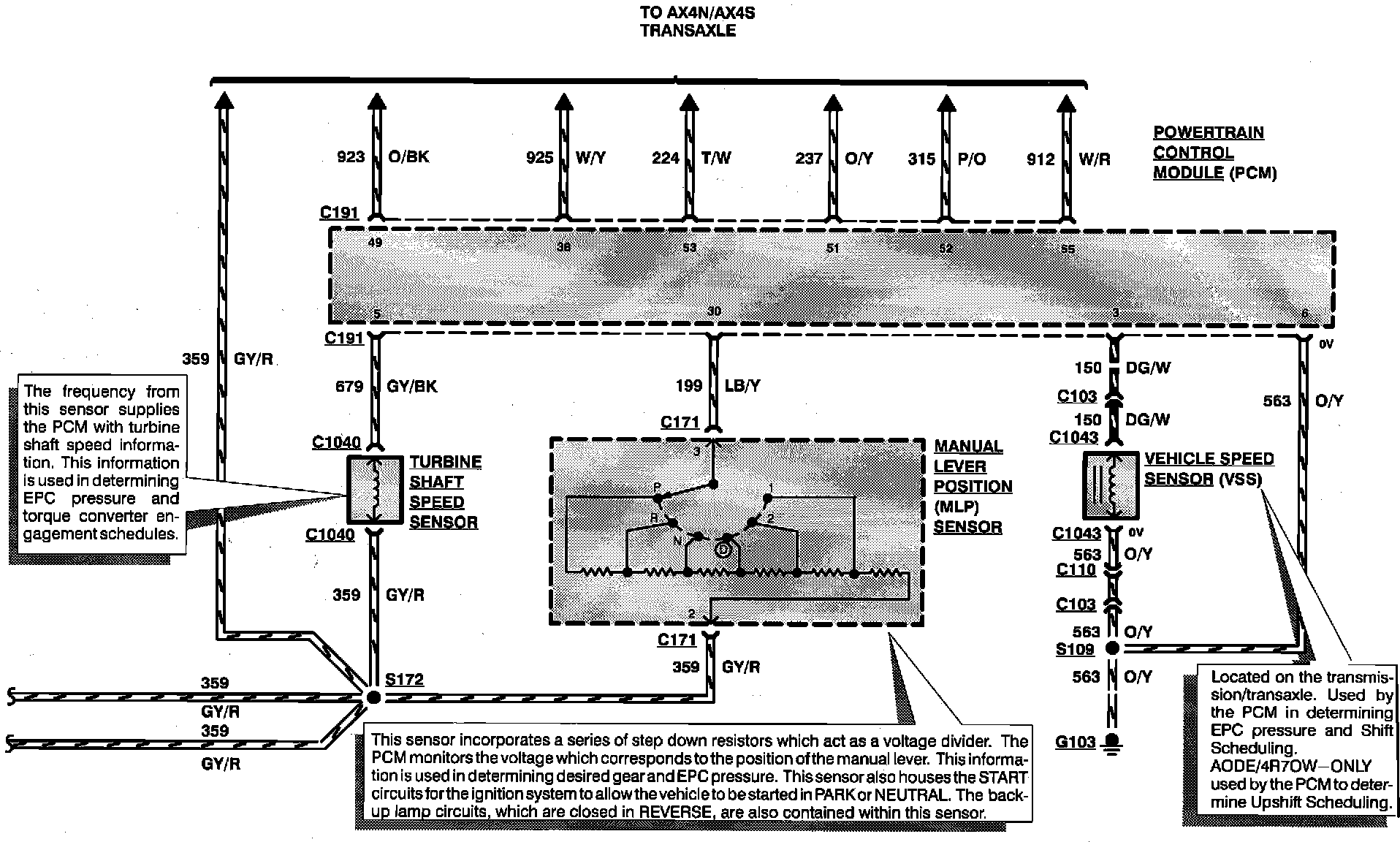

MANUAL LEVER POSITION SENSOR
POWERTRAIN CONTROL MODULE
TURBINE SHAFT SPEED SENSOR
VEHICLE SPEED SENSOR



Engine Controls:

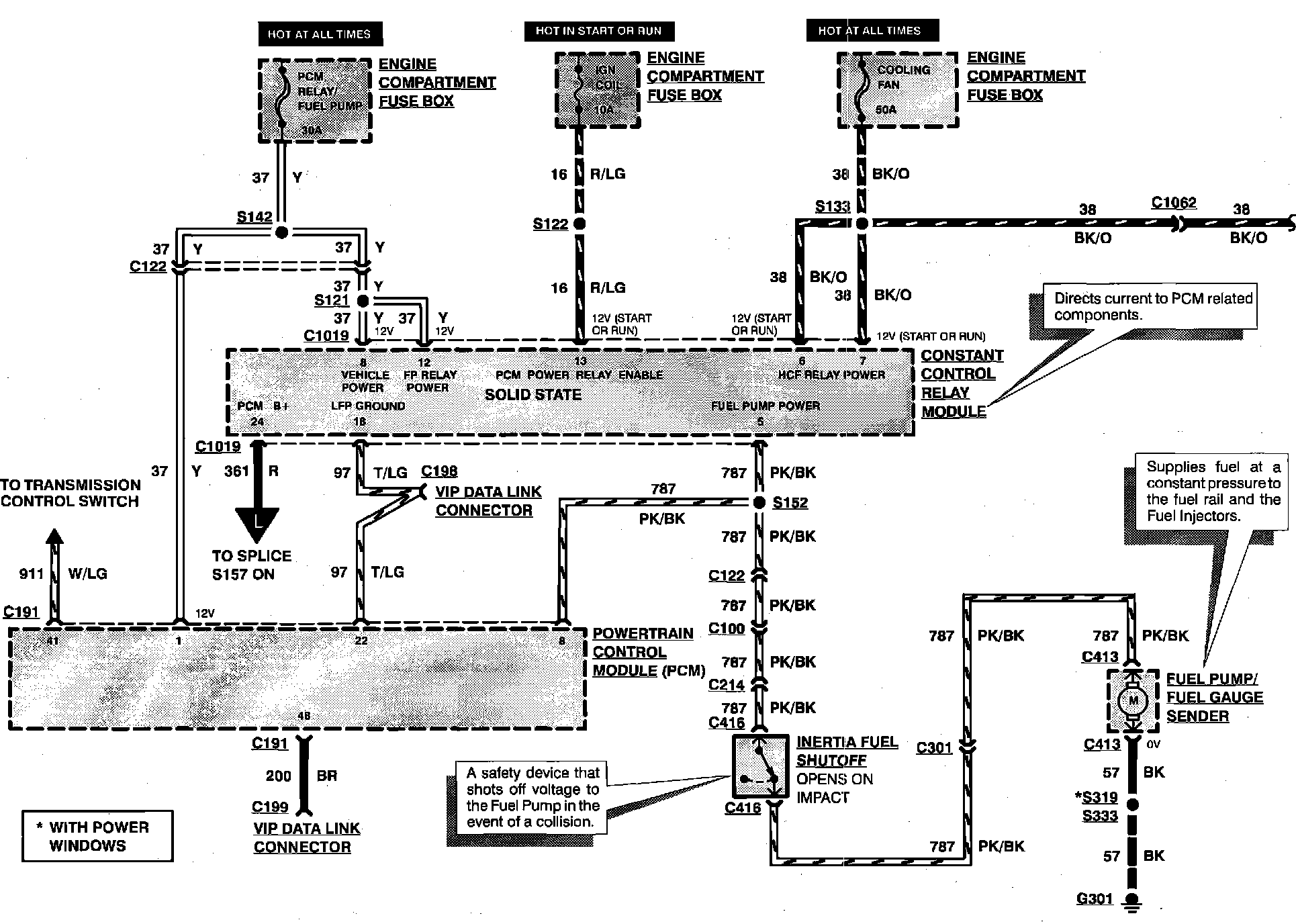

CONSTANT CONTROL RELAY MODULE
ENGINE COMPARTMENT FUSE BOX
FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUTOFF
POWERTRAIN CONTROL MODULE



Engine Controls:

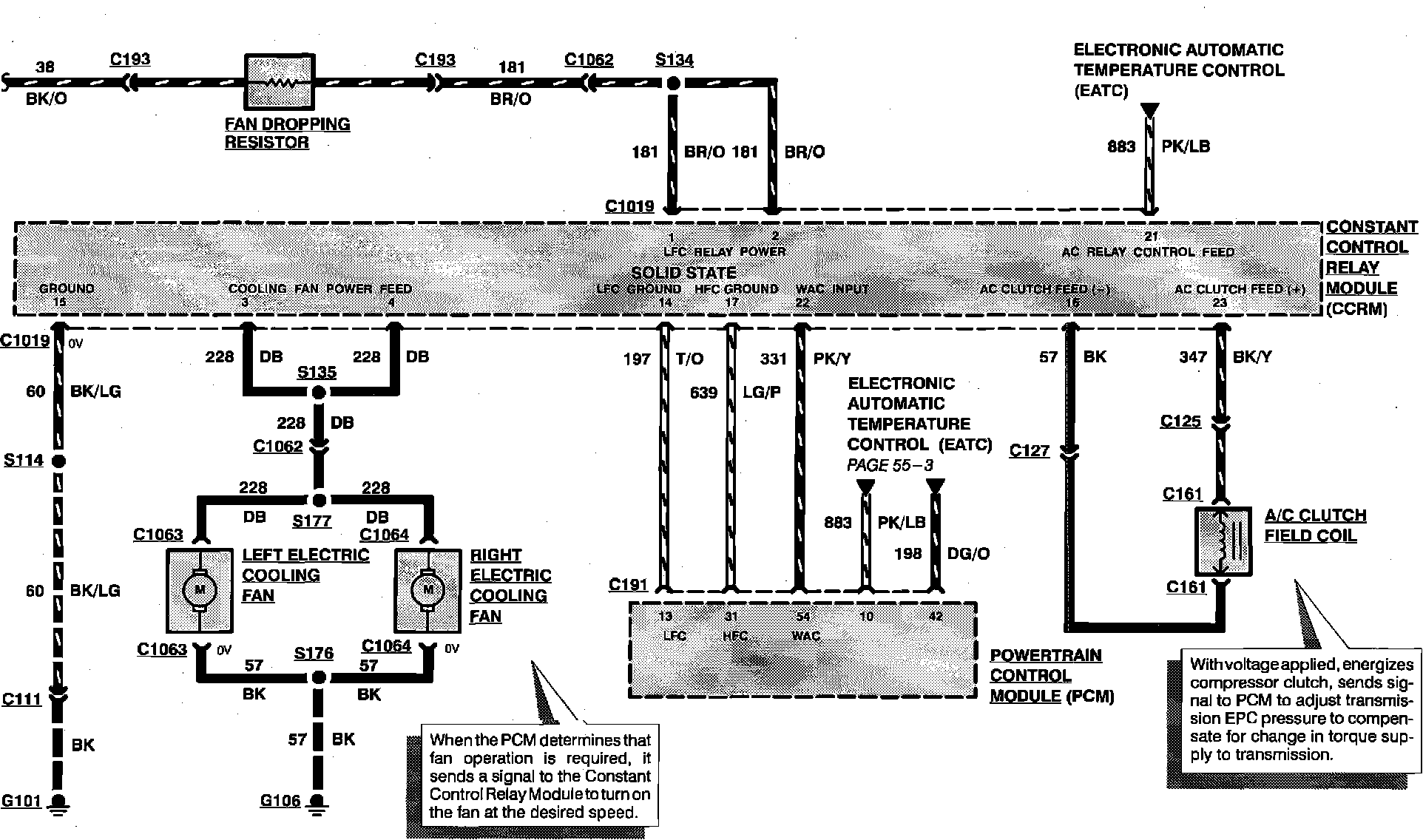

A/C CLUTCH FIELD COIL
CONSTANT CONTROL RELAY MODULE
ELECTRIC COOLING FANS
FAN DROPPING RESISTOR
POWERTRAIN CONTROL MODULE
