Rear

Removal and Installation

Door, Rear:

1. Remove window regulator handle by unsnapping handle cover from base to expose retaining screw. Remove screw, window regulator handle and window regulator handle plate (manual windows).

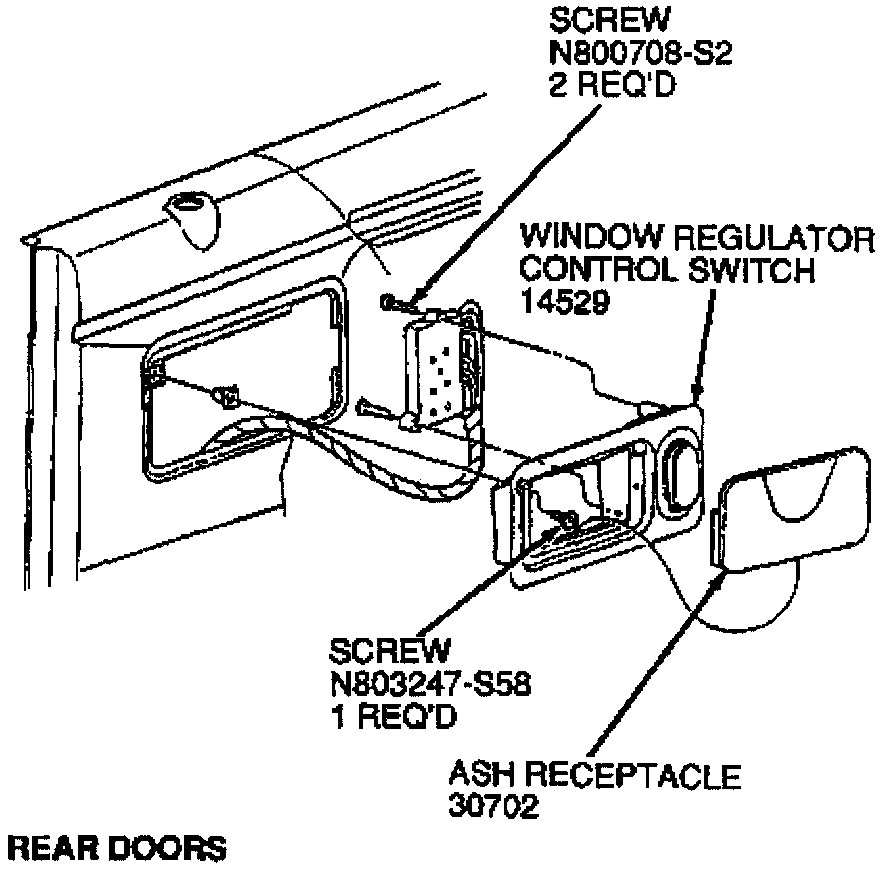

Door, Rear Switch:

2. Remove window regulator control switch or power door lock switch retaining screws. Remove window regulator control switch.
3. Disconnect window regulator safety relay switch wiring from window regulator control switch.

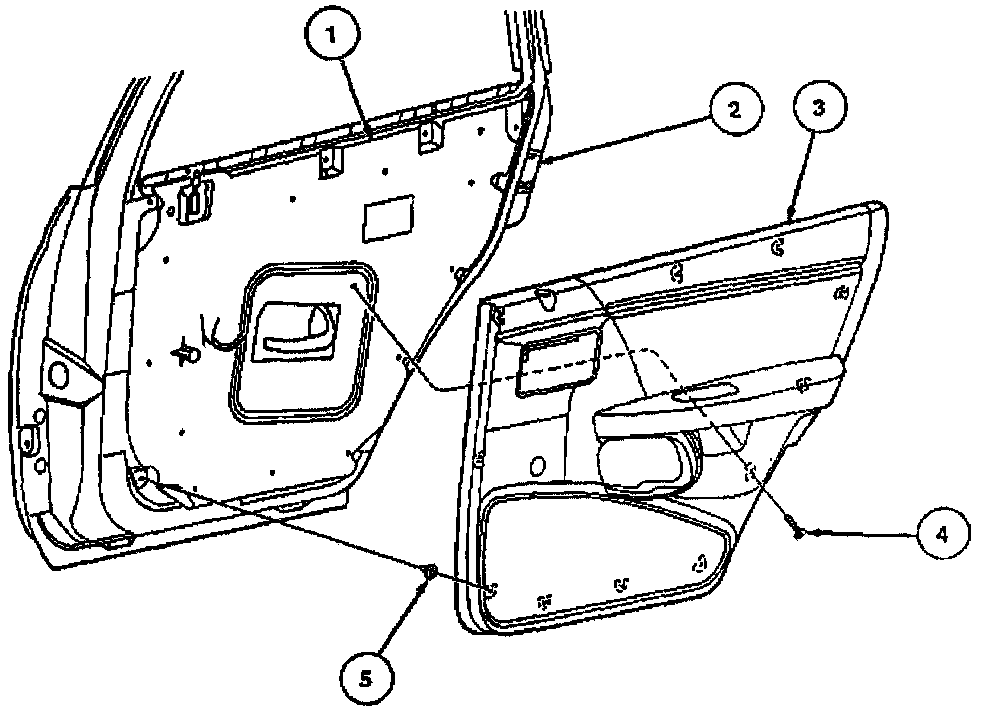

4. Remove screw(s) retaining rear door trim panel to rear door.
5. Using Trim Pad Removing Tool from Rotunda Windshield and Moulding/Trim Removal Kit 107-R0401 or equivalent, pry rear door trim panel retaining push pins from rear door.
6. If rear door trim panel is being replaced, transfer push pins to new rear door trim panel.
7. To install, reverse Removal procedure.
