Cylinder Head Assembly

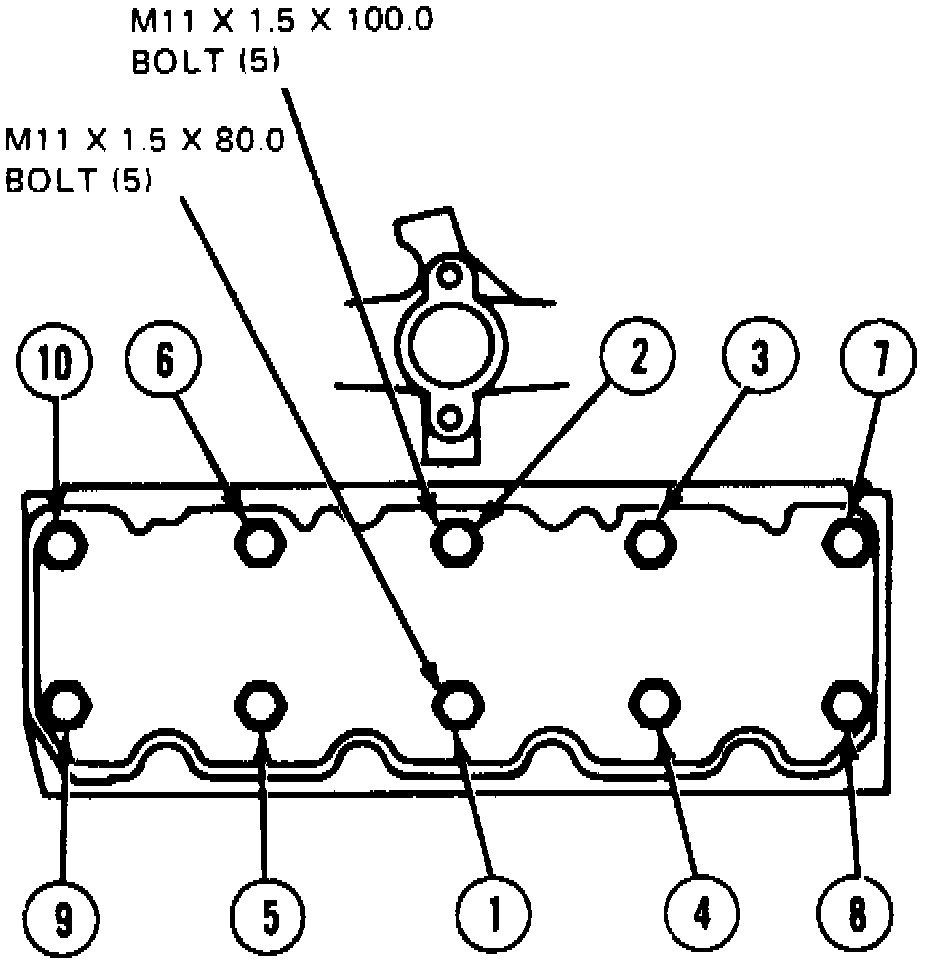

Cylinder Hard Torque SequenceCylinder head bolt tightening sequence:
1.
Tighten all bolts in numerical sequence to
70-80 Nm (52-59 ft-lb.) 2.
Re-tighten all bolts in numerical sequence to
95-103 Nm (70-76 ft-lb.) 3.
In numerical sequence, tighten all bolts
1/4 turn.
