Main Shift Control Shaft

REMOVAL

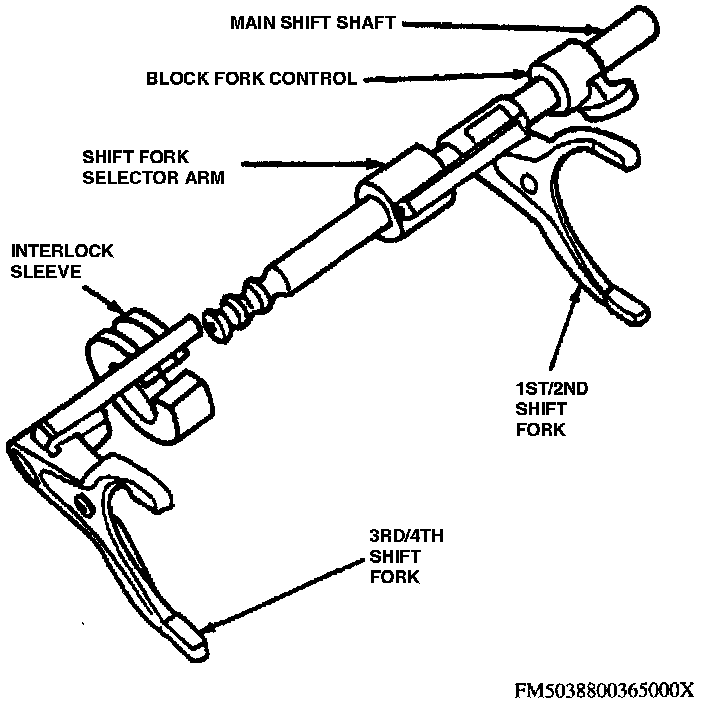

3-4 Shift Fork Removal:

1. Rotate 3-4 shift fork until notch in fork is positioned over interlock sleeve.
2. Rotate 1-2 shift fork until notch in fork is positioned over selector arm finger, then slide third and fourth fork and interlock sleeve off shaft.

1-2 Shift Fork Removal:

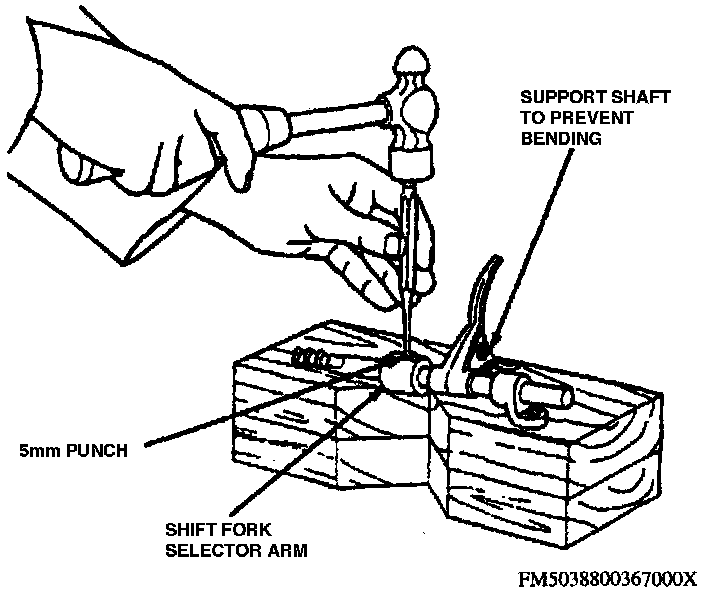

3. Remove selector arm retaining pin using 5 mm punch, then remove selector arm and 1-2 shift fork from shaft.
4. Remove fork control spring pin using 5 mm punch, then remove fork control block from shift control shaft.

INSTALLATION
1. Reverse procedure to install, noting the following:

Selector Arm Installation:

a. Before installing retaining pin, ensure selector arm finger is aligned with oil relief flats on detent end of shift shaft.
