Brake Fluid Level Sensor/Switch: Description and Operation

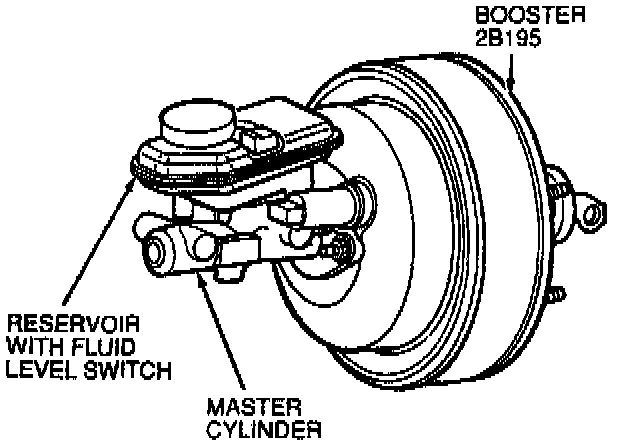

Fig. 2 Master Cylinder Reservoir & Brake Booster:
The master cylinder reservoir, Fig. 2, is a clear translucent, plastic container with three main chambers. An integral fluid level switch is part of the reservoir assembly, with one 3-pin electrical connector. A low pressure hose is attached to the reservoir which feeds brake fluid to the hydraulic control unit reservoir. The reservoir and cap are serviced separately.
