PCV Valve Hose: Service and Repair

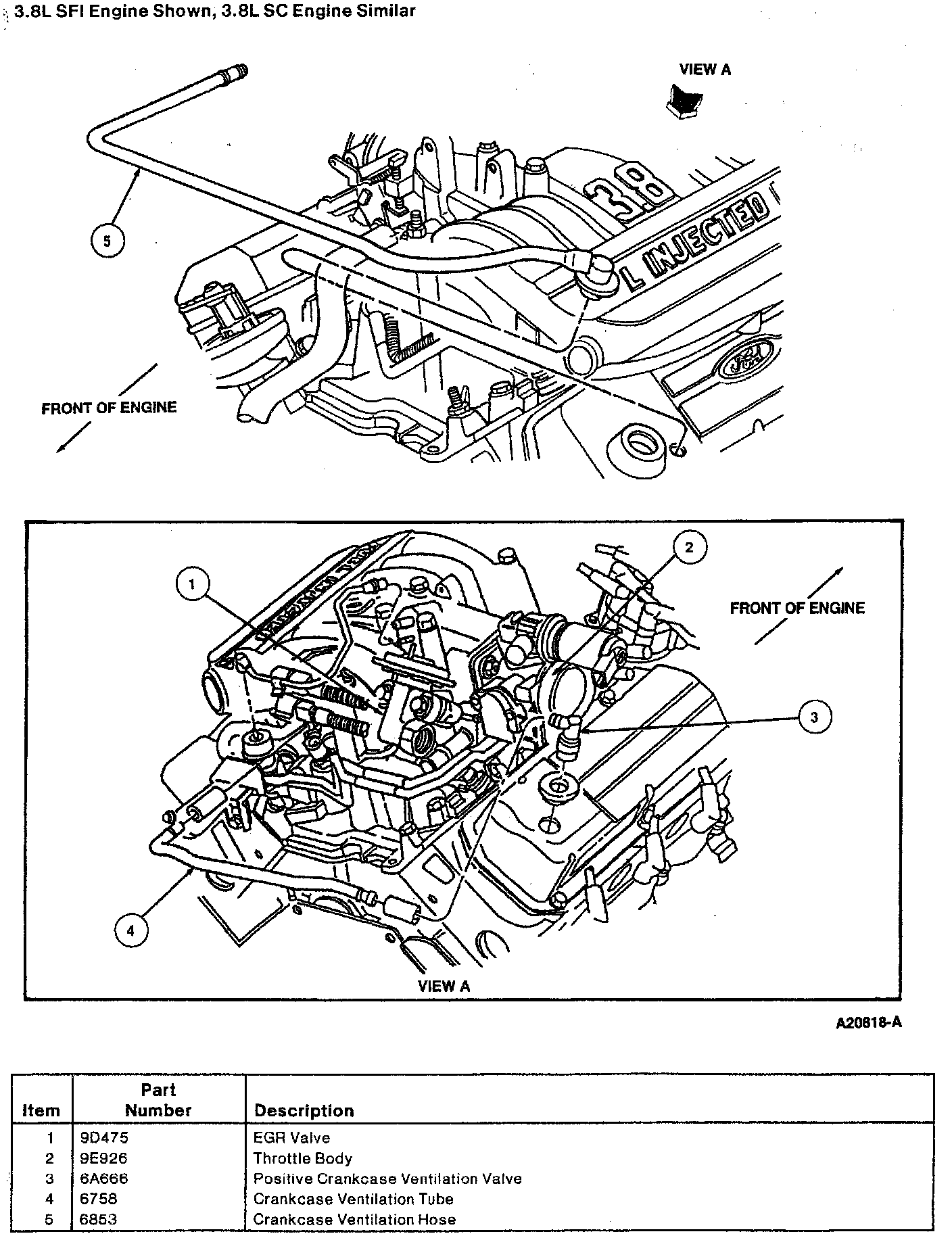

EGR Components:

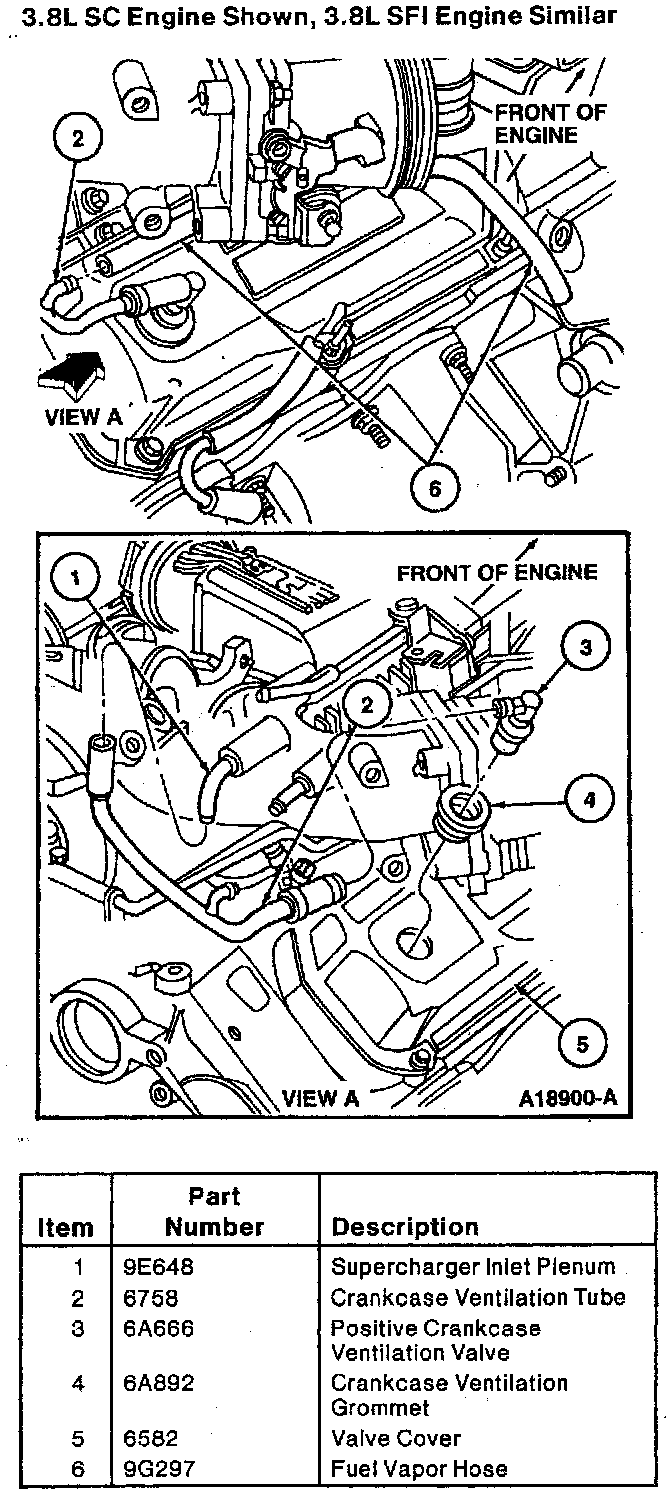

PCV System:
REMOVAL ^
Disconnect crankcase ventilation tube from
Positive Crankcase Ventilation (PCV) valve.
^
Remove the PCV valve from the
PCV crankcase ventilation valve grommet.
^
Inspect PCV valve and crankcase ventilation grommet for deterioration. Replace if necessary.
INSTALLATION ^
To install, reverse removal procedure.
