Wiper Motor: Service and Repair

1. Disconnect battery ground cable.
2. With wipers in PARK position, remove arm and blade assemblies.
3. Remove LH cowl vent screen.

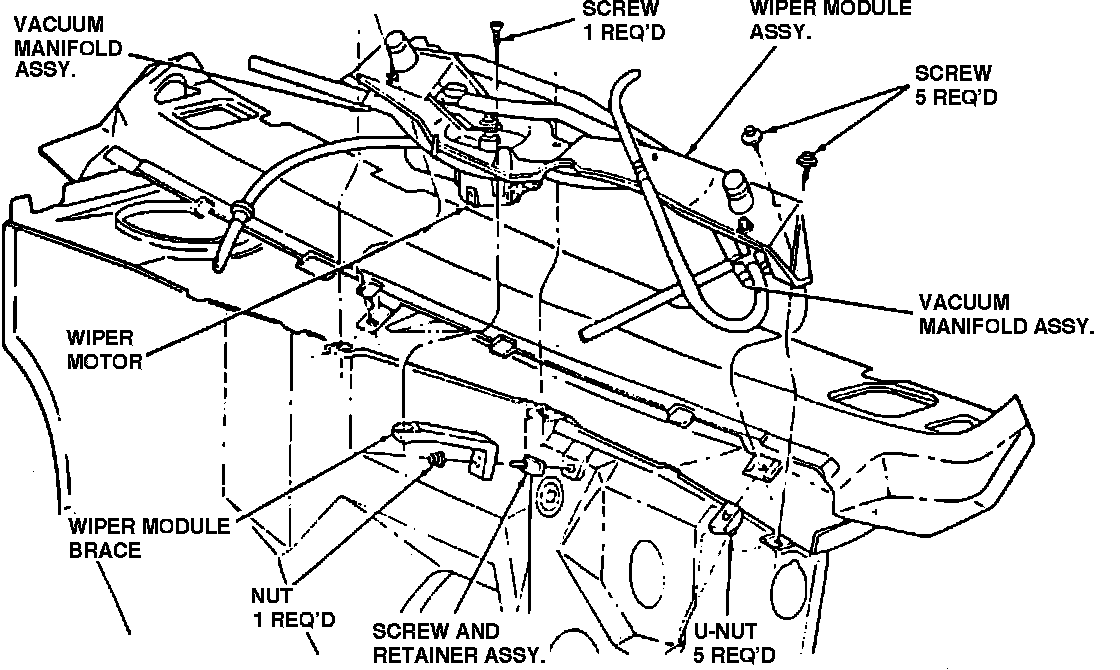

Fig. 6 Wiper Motor Replacement:

4. Remove vacuum manifolds from wiper module.
5. Disconnect wiring connectors, then remove five bolts and one nut from wiper module and remove module.
6. Remove crankpin clip, then disconnect linkage drive arm from motor crank pin.
7. Remove three motor attaching screws, pull motor from opening.
8. Reverse procedure to install, ensuring that wiper motor is in the PARK position prior to installation.
