Engine Controls

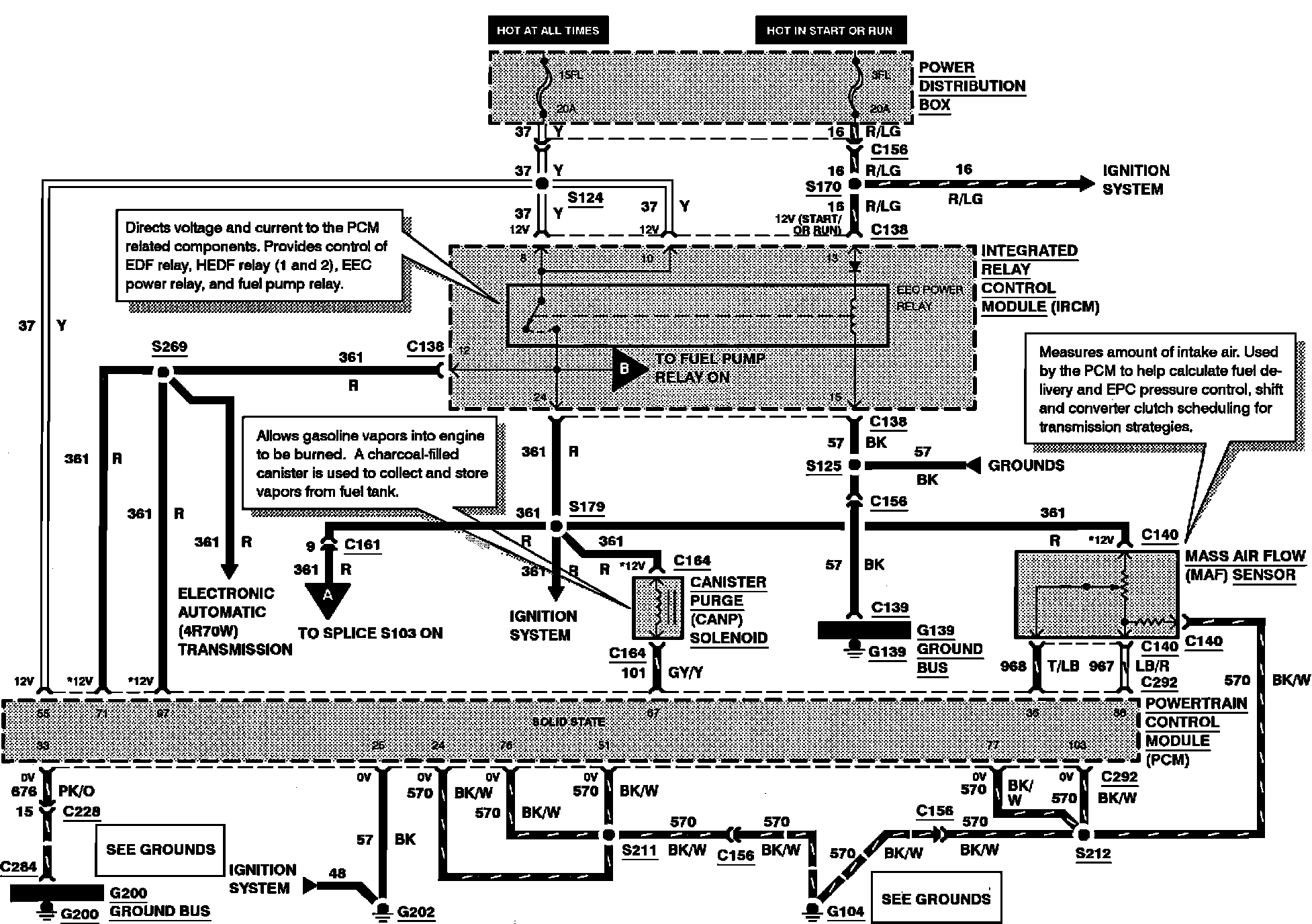

Electronic Engine Control:

CANISTER PURGE (CANP) SOLENOID
EEC POWER RELAY
MASS AIR FLOW (MAF) SENSOR

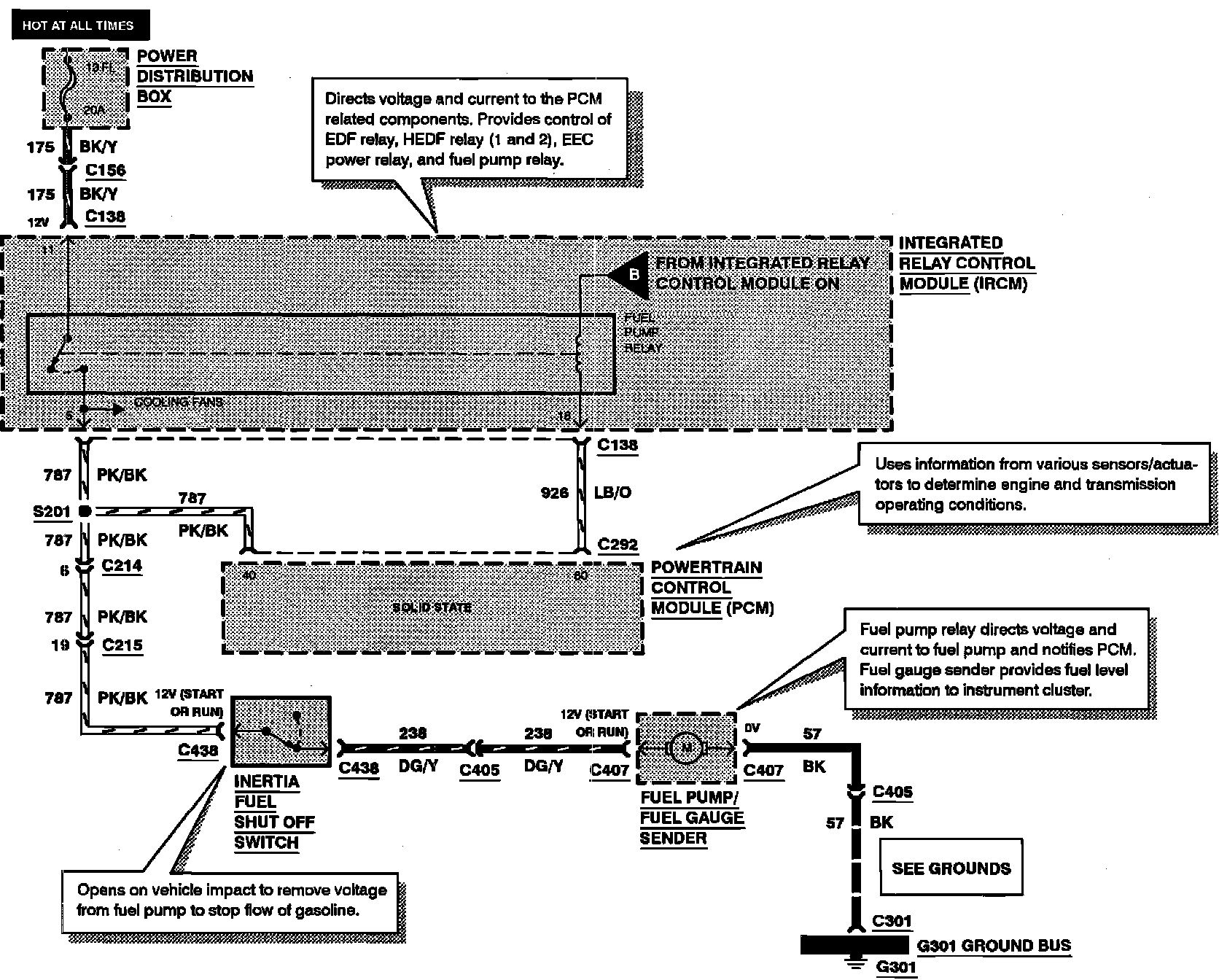

Electronic Engine Control:

FUEL PUMP/FUEL GAUGE SENDER
FUEL PUMP RELAY
INERTIA FUEL SHUTOFF SWITCH

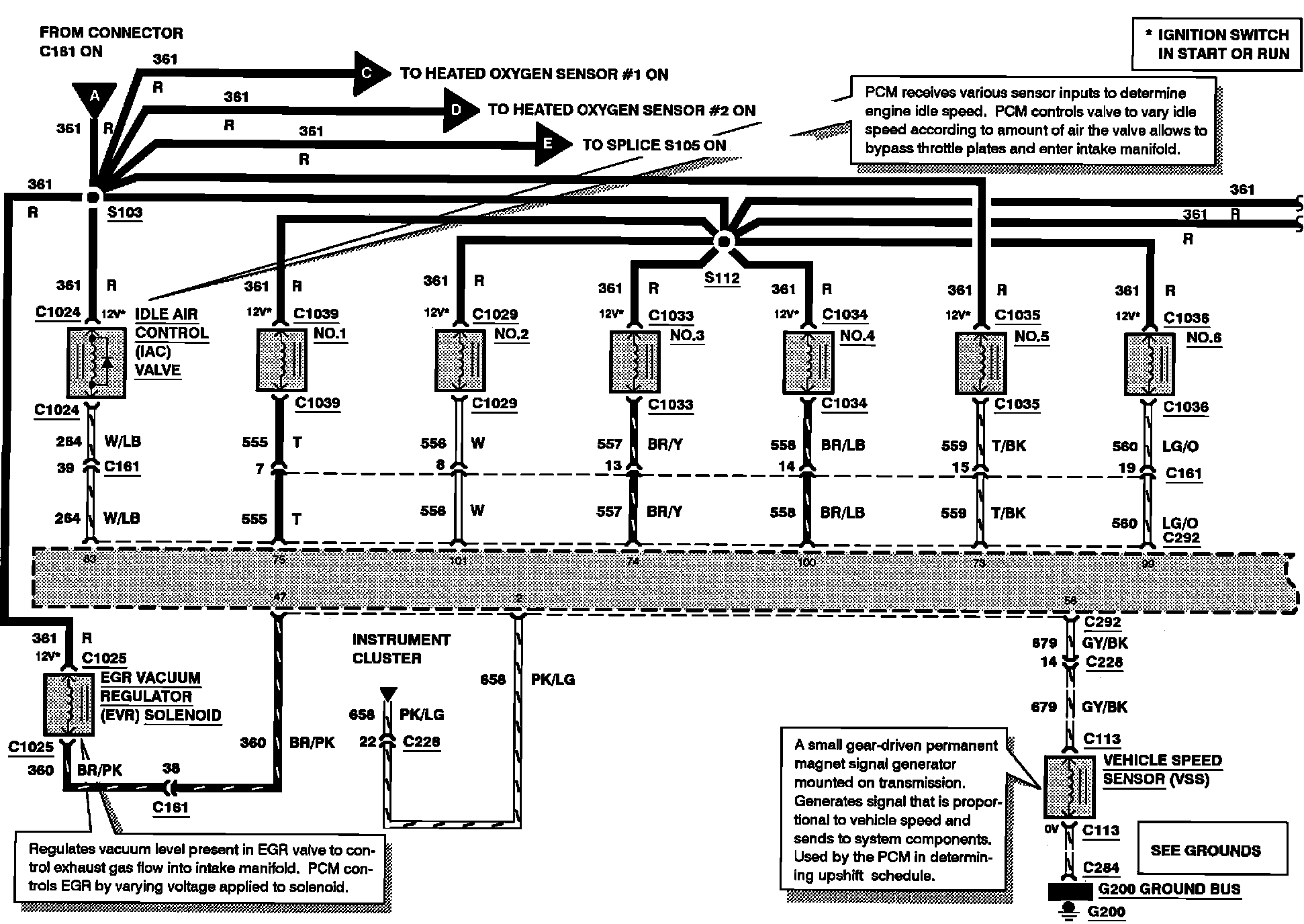

Electronic Engine Control:

EGR VACUUM REGULATOR (EVR) SOLENOID
FUEL INJECTORS
IDLE AIR CONTROL (IAC) VALVE
VEHICLE SPEED SENSOR (VSS)

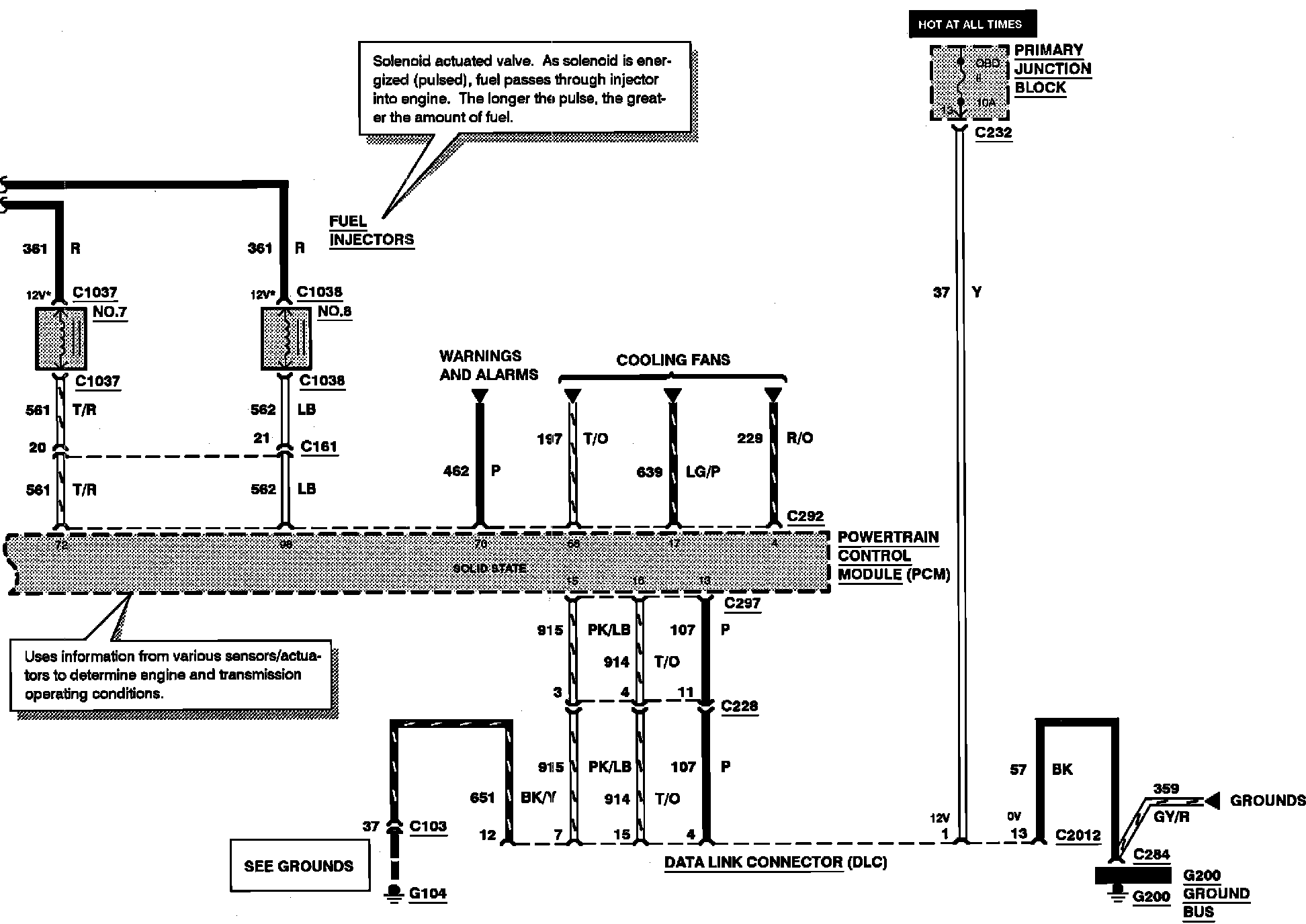

Electronic Engine Control:

FUEL INJECTORS

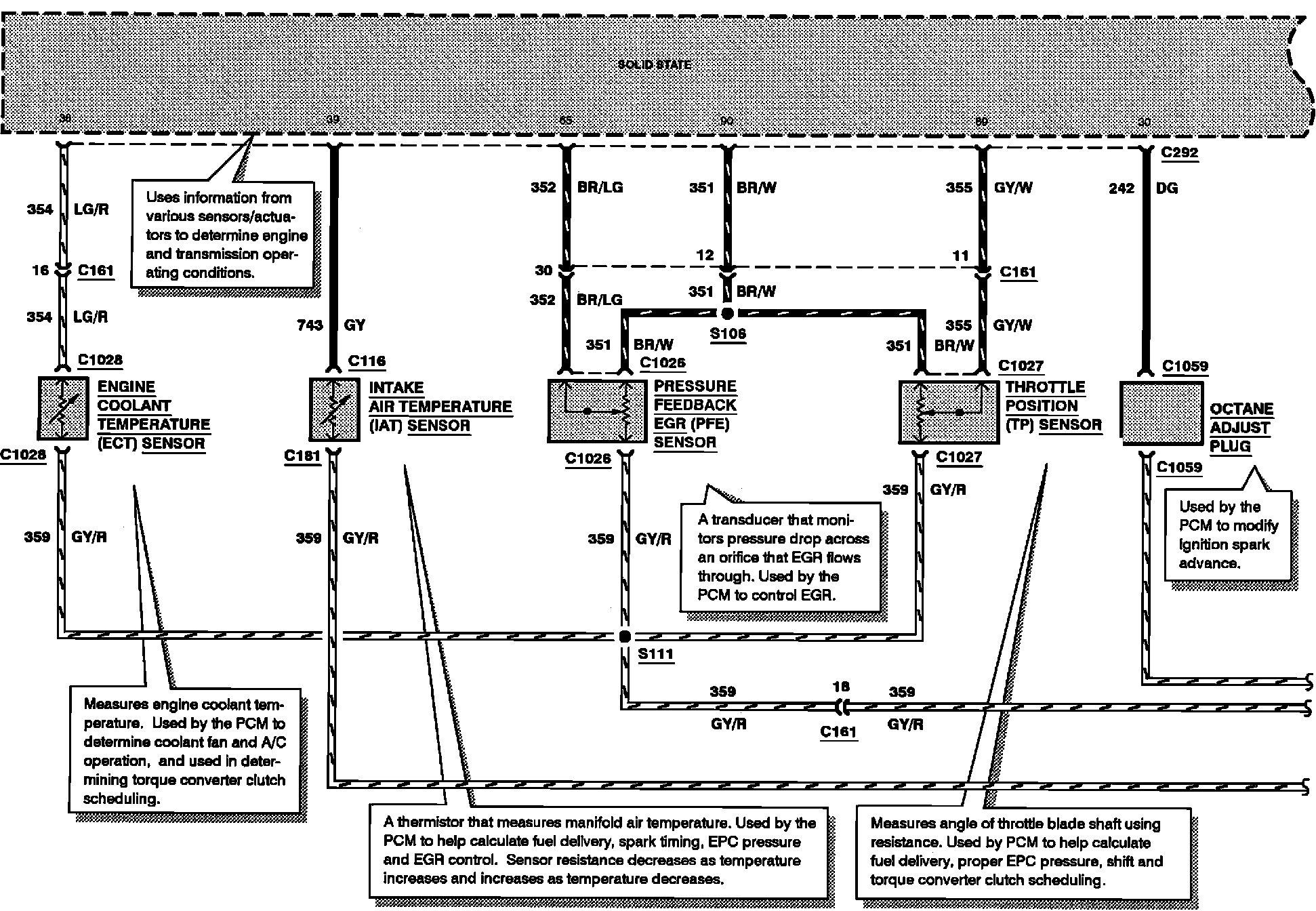

Electronic Engine Control:

ENGINE COOLANT TEMPERATURE (ECT) SENSOR
INTAKE AIR TEMPERATURE (IAT) SENSOR
PRESSURE FEEDBACK EGR (PFE) SENSOR
THROTTLE POSITION (TP) SENSOR
OCTANE ADJUST PLUG

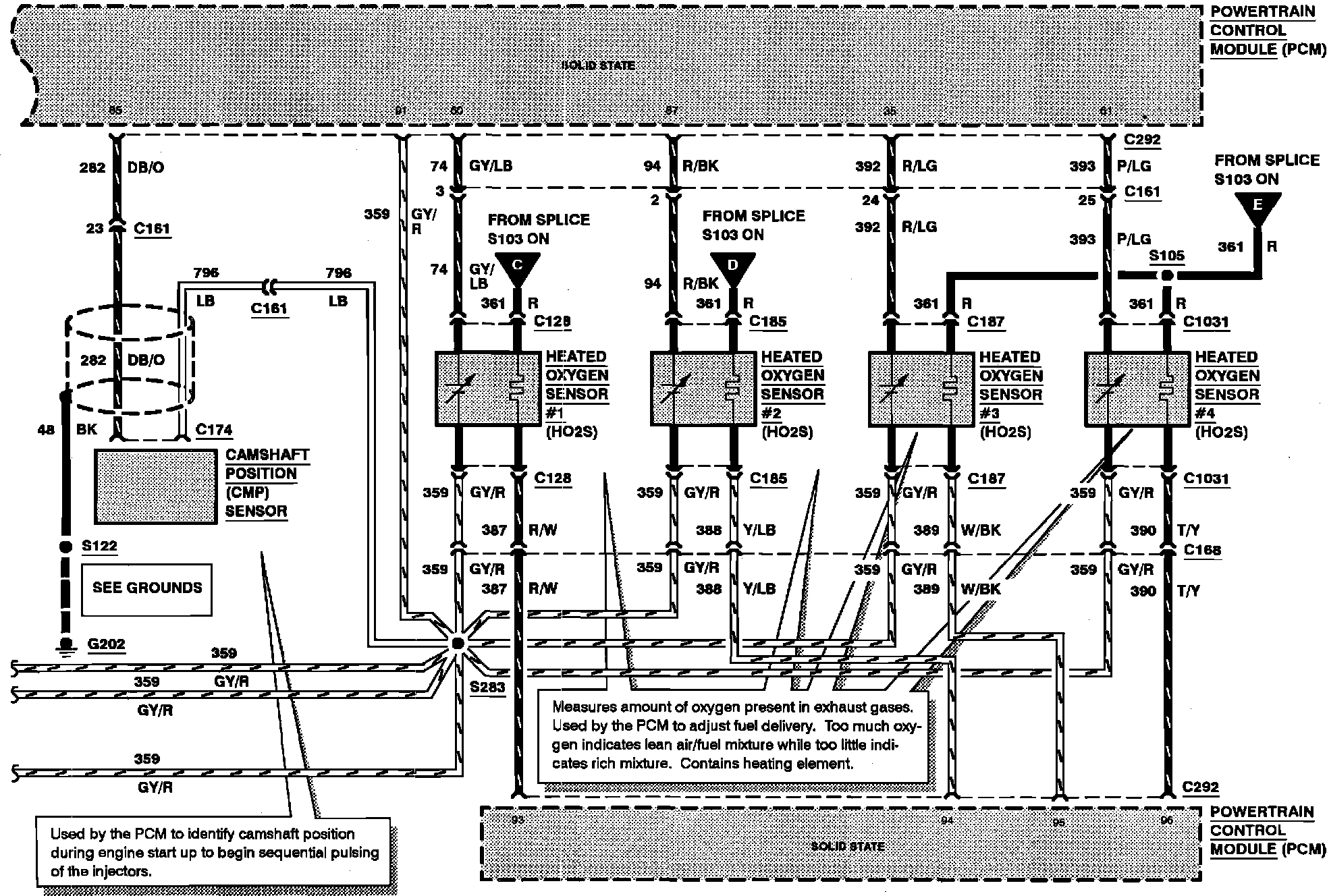

Electronic Engine Control:

CAMSHAFT POSITION (CMP) SENSOR
HEATED OXYGEN SENSOR (HO2S) #1
HEATED OXYGEN SENSOR (HO2S) #2
HEATED OXYGEN SENSOR (HO2S) #3
HEATED OXYGEN SENSOR (HO2S) #4

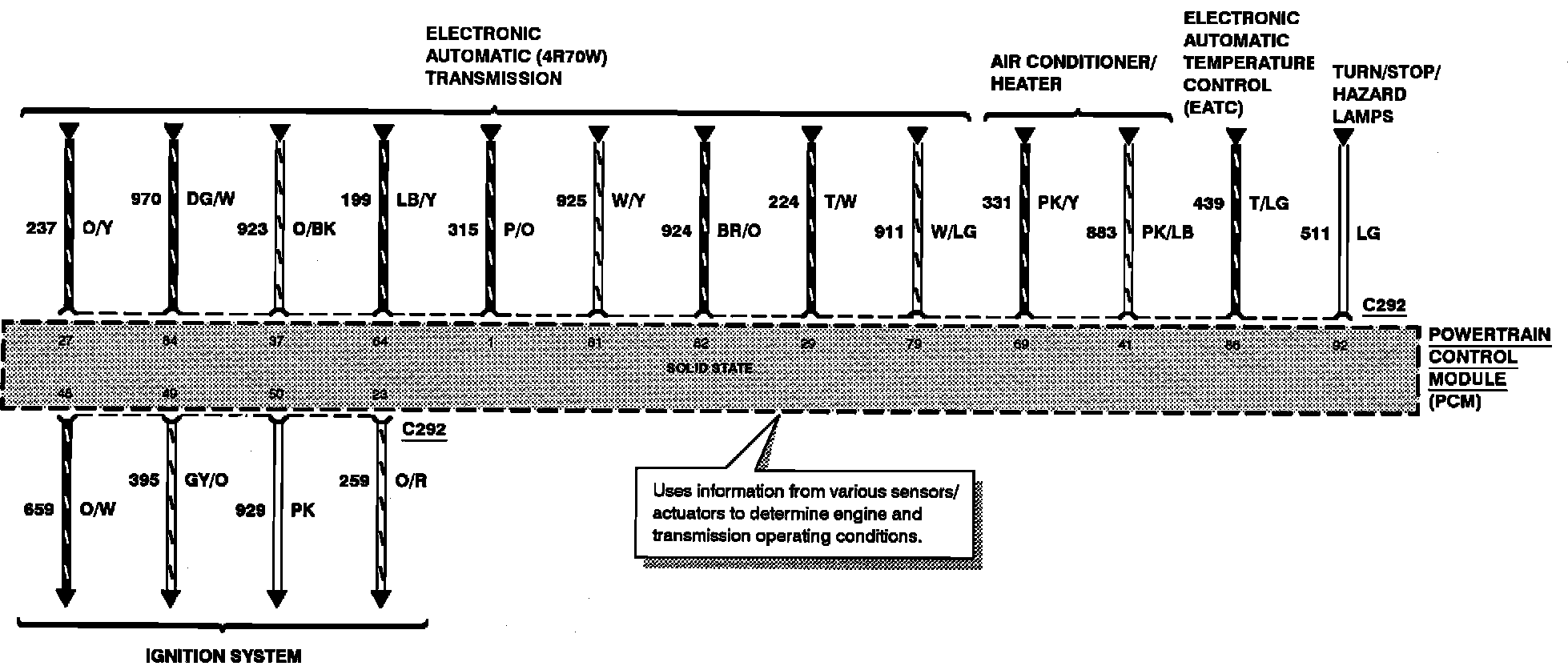

Electronic Engine Control:

POWERTRAIN CONTROL MODULE
