Electronic Brake Control Module: Service and Repair
1.
Remove hydraulic control unit.
2.
Disconnect 28-pin connector from Anti-Lock Brake System
(ABS) control module.

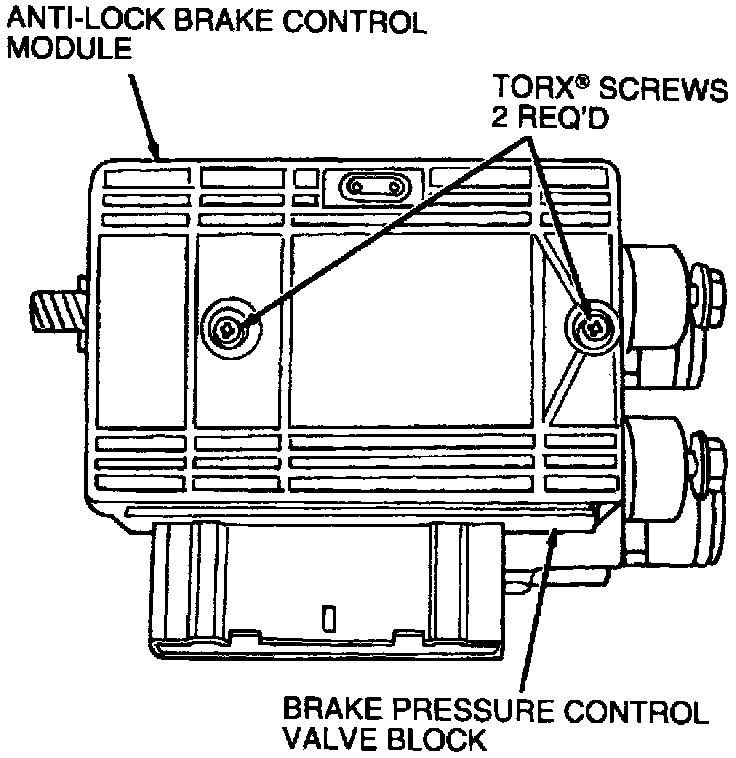

Fig. 116 ABS Control Module Replacement:
3.
Remove two Torx
(r) screws and disconnect two pin connector.
4.
Slide ABS control module off brake pressure control valve block.
5.
Reverse procedure to install. Tighten Torx
(r) screws to
18 in lb.
