Fuse Block: Application and ID
Fuses and Circuit BreakersLocation and Values
The following circuit protection charts give the location and values of all the circuits containing fuses or circuit breakers.

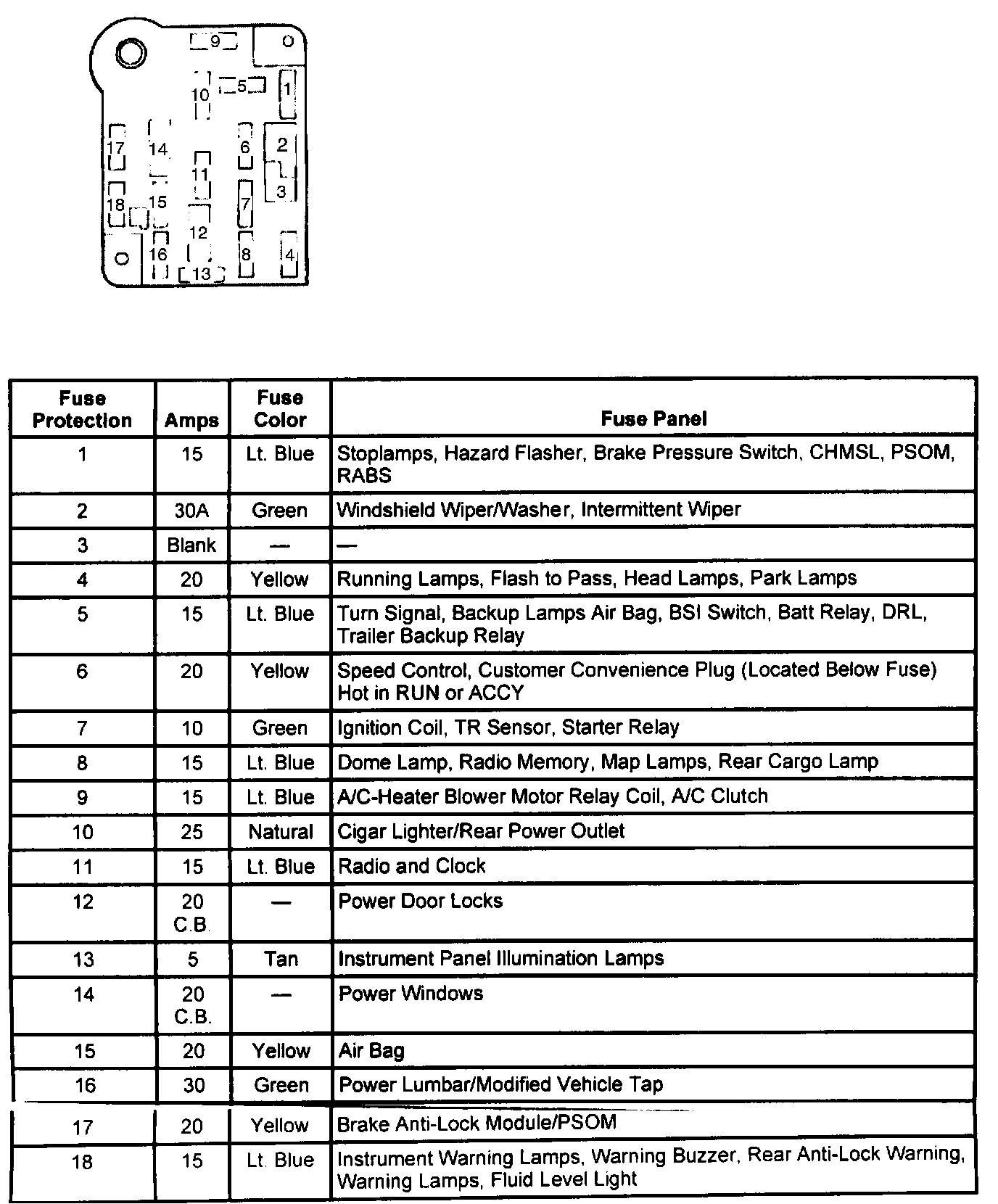

Conventional Chassis

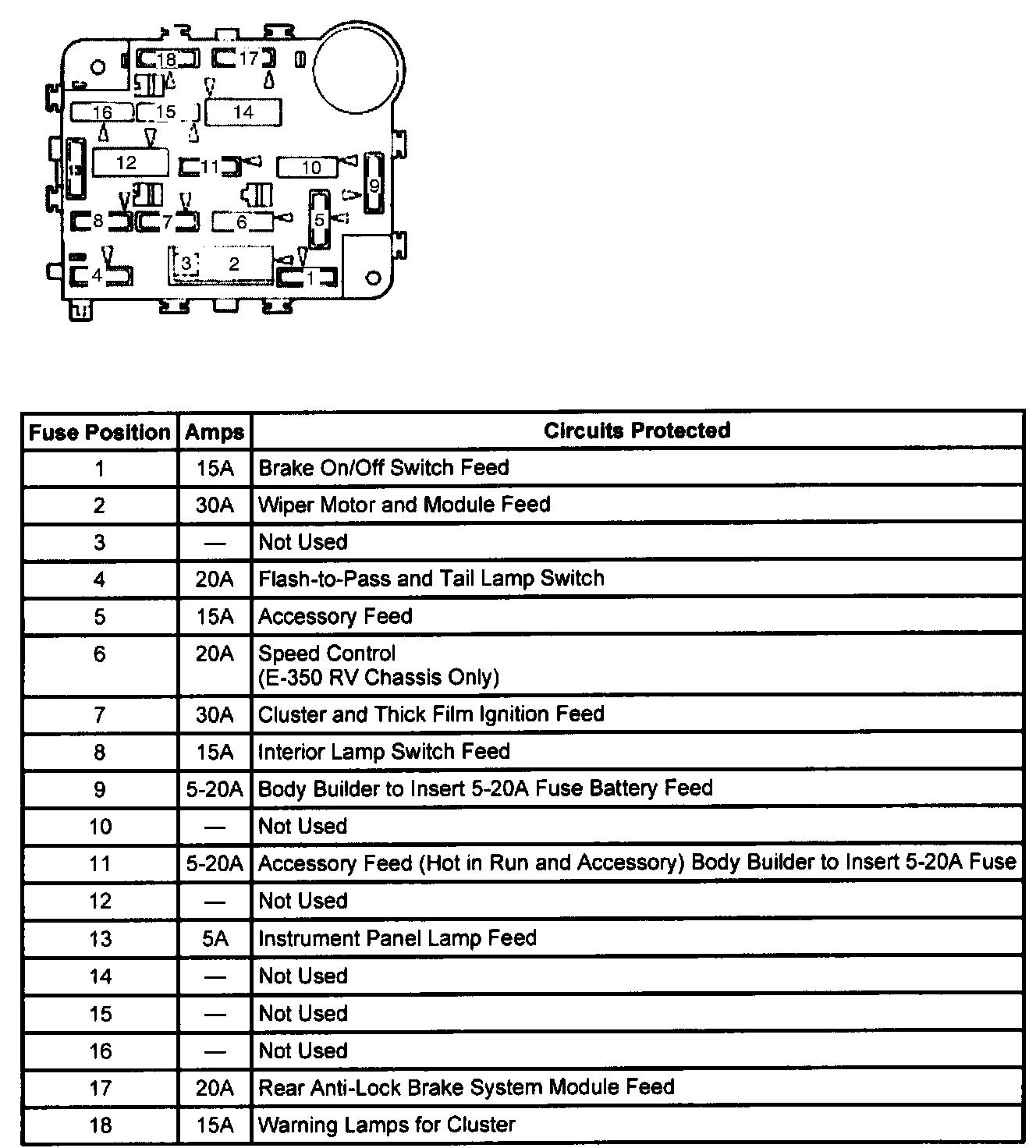

Fuse Panel, E-250 Commercial Chassis and E-350 RV Chassis
