Test Notes






You should enter this pinpoint test only when directed here.

This pinpoint test is not intended to diagnose components interior to the transmission. This pinpoint test is intended to diagnose only the following:

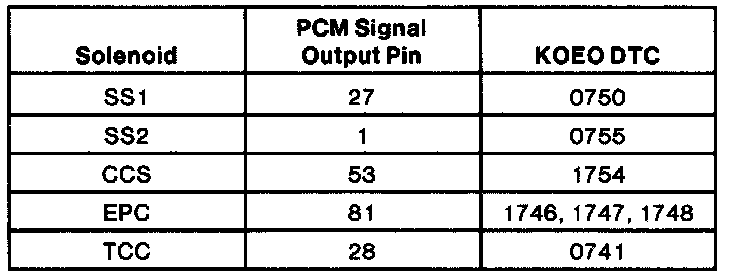

- Harness circuits: Torque Converter Clutch (TCC), Coast Clutch Solenoid (CCS), Electronic Pressure Control (EPC), Shift Solenoids 1 & 2 (SS1, SS2), Vehicle Power (VPWR)
- Powertrain Control Module (PCM)
