Component Tests and General Diagnostics
1.
Disconnect
glow plug/injector harness connectors from the valve cover gasket.
Glow Plug Testing:
2.

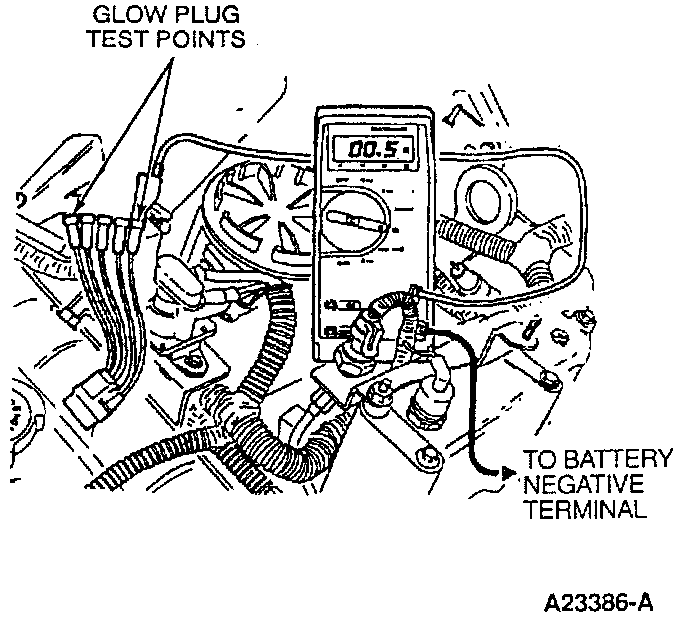

With the pigtail installed, measure
glow plug resistance to battery negative terminal.
3.
A resistance measurement of
0.1 - 6 ohms indicates a good
glow plug.
