Engine Views

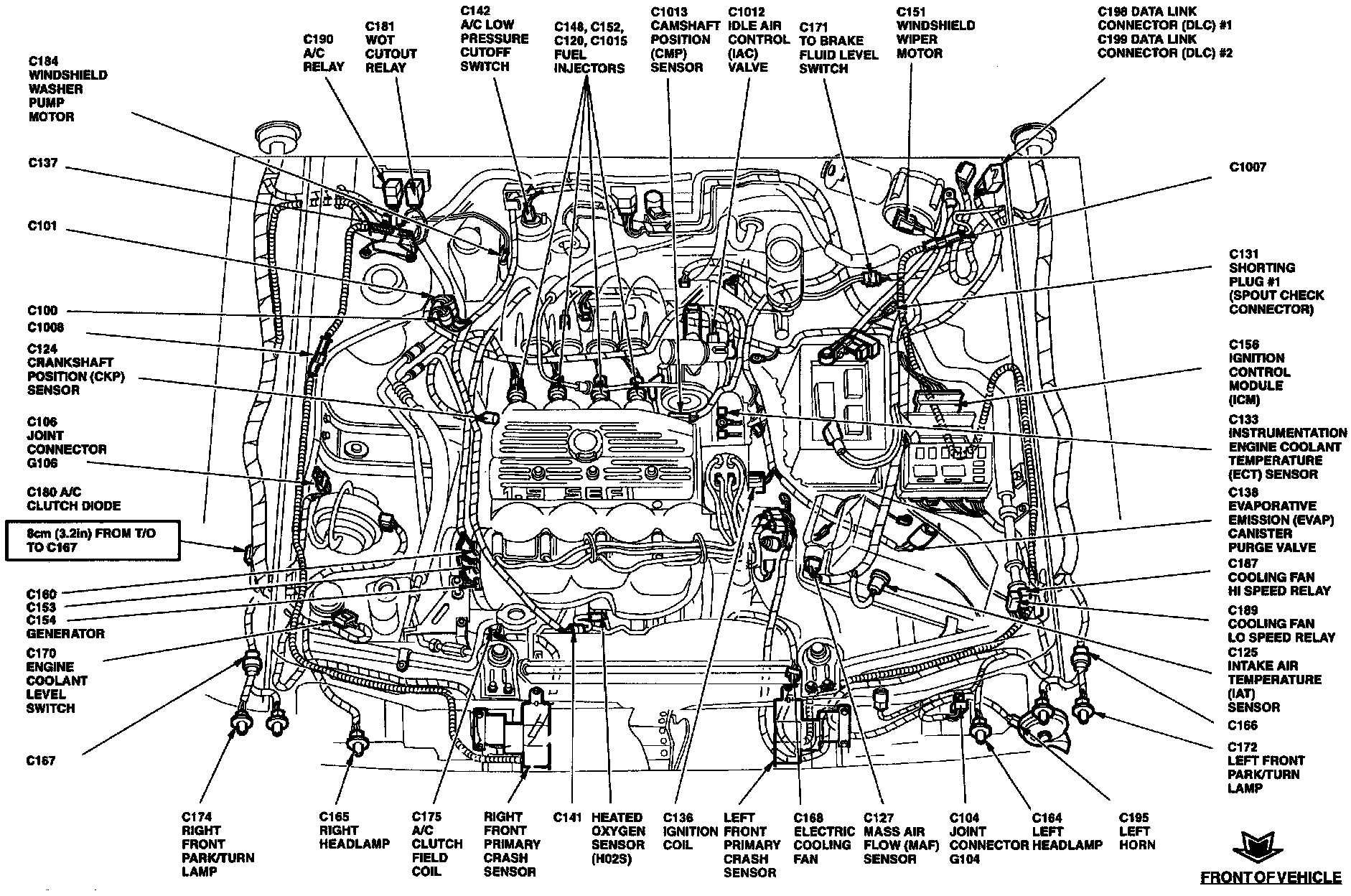

Engine View:

A/C CLUTCH DIODE
A/C CLUTCH FIELD COIL
A/C LOW PRESSURE CUTOFF SWITCH
A/C RELAY
BRAKE FLUID LEVEL SWITCH
CAMSHAFT POSITION SENSOR
COOLING FAN HIGH SPEED RELAY
COOLING FAN LOW SPEED RELAY
CRANKSHAFT POSITION SENSOR
DATA LINK CONNECTOR #1
DATA LINK CONNECTOR #2
ELECTRIC COOLING FAN
ENGINE COOLANT LEVEL SWITCH
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL INJECTORS
GENERATOR
HEATED OXYGEN SENSOR
IDLE AIR CONTROL VALVE
IGNITION COIL
IGNITION CONTROL MODULE
INSTRUMENTATION ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
JOINT CONNECTOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT PRIMARY CRASH SENSOR
LEFT HEADLAMP
LEFT HORN
MASS AIR FLOW SENSOR
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT PRIMARY CRASH SENSOR
RIGHT HEADLAMP
SHORTING PLUG #1 (SPOUT CHECK CONNECTOR)
WIDE OPEN THROTTLE CUTOUT RELAY
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

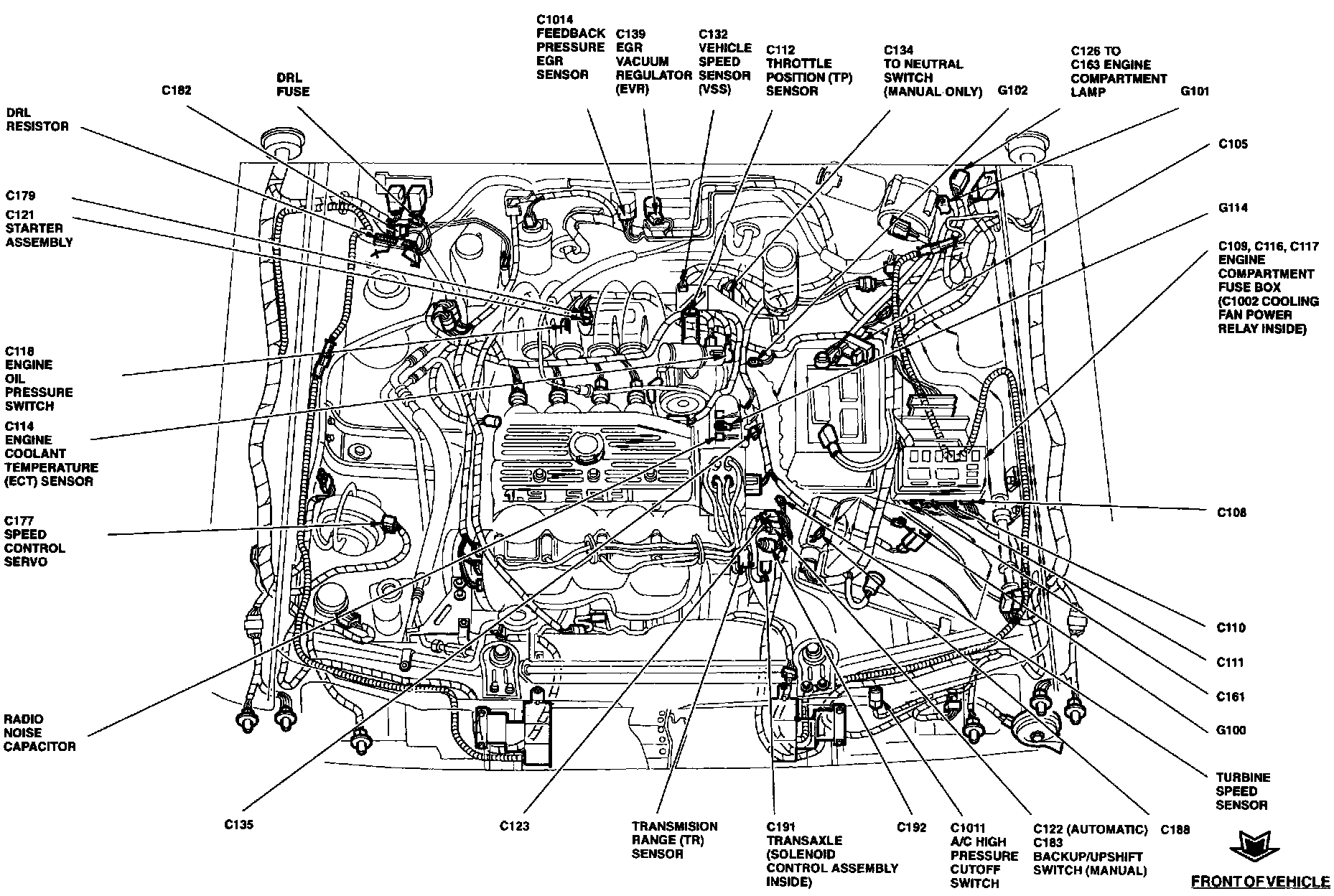

Engine View:

A/C HIGH PRESSURE CUTOFF SWITCH
BACKUP/UPSHIFT SWITCH
COOLING FAN POWER RELAY
DAYTIME RUNNING LAMPS FUSE
DAYTIME RUNNING LAMPS RESISTOR
EGR VACUUM REGULATOR
ENGINE COMPARTMENT FUSE BOX
ENGINE COMPARTMENT LAMP
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL PRESSURE SWITCH
FEEDBACK PRESSURE EGR SENSOR
NEUTRAL SWITCH
RADIO NOISE CAPACITOR
SPEED CONTROL SERVO
STARTER ASSEMBLY
THROTTLE POSITION SENSOR
TRANSAXLE (SOLENOID CONTROL ASSEMBLY INSIDE)
TRANSMISSION RANGE SENSOR
TURBINE SPEED SENSOR
VEHICLE SPEED SENSOR
