Engine Controls

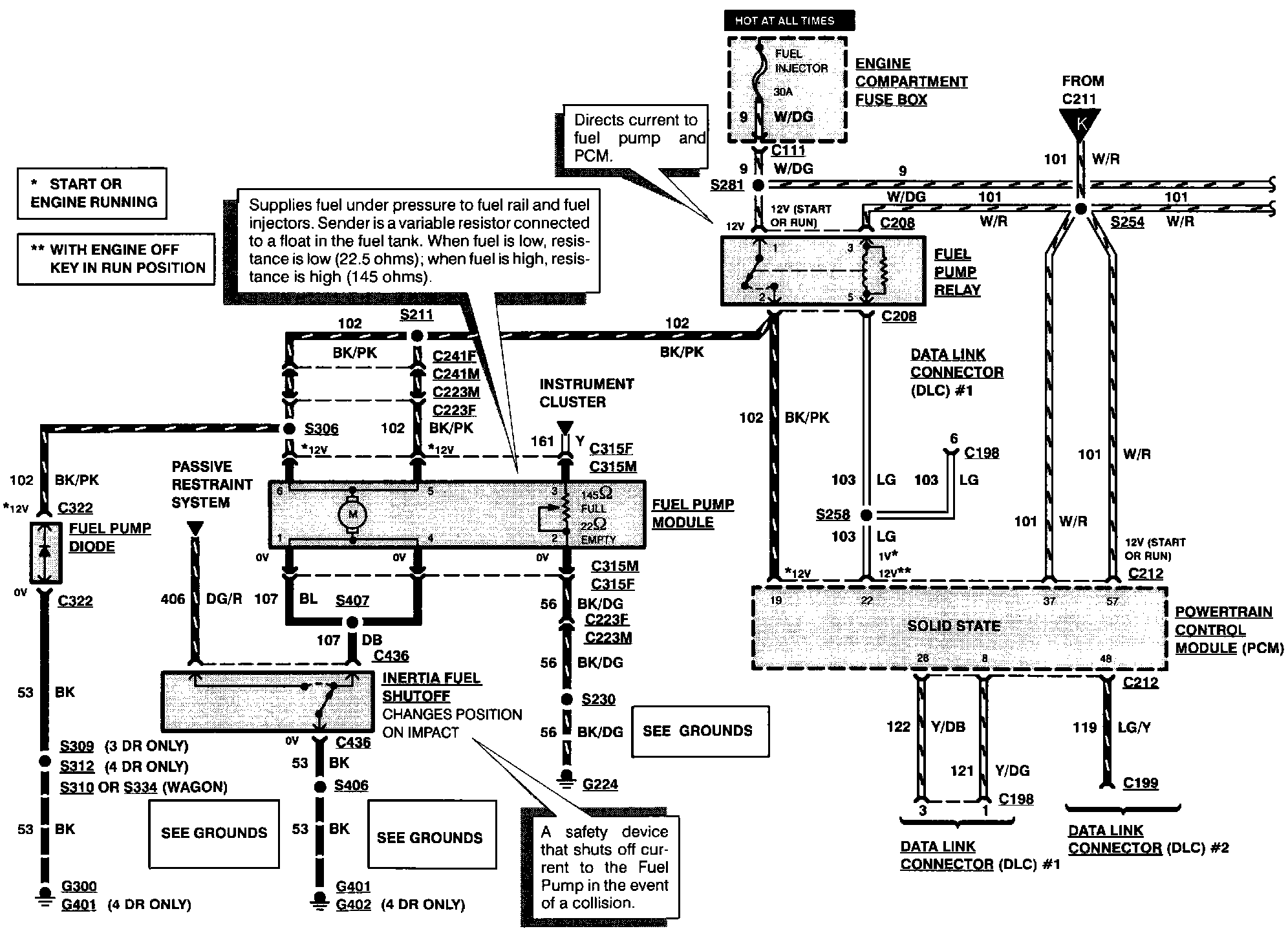

Engine Controls (Part 1 Of 6):

FUEL PUMP DIODE
FUEL PUMP MODULE
FUEL PUMP RELAY
INERTIA FUEL SHUTOFF

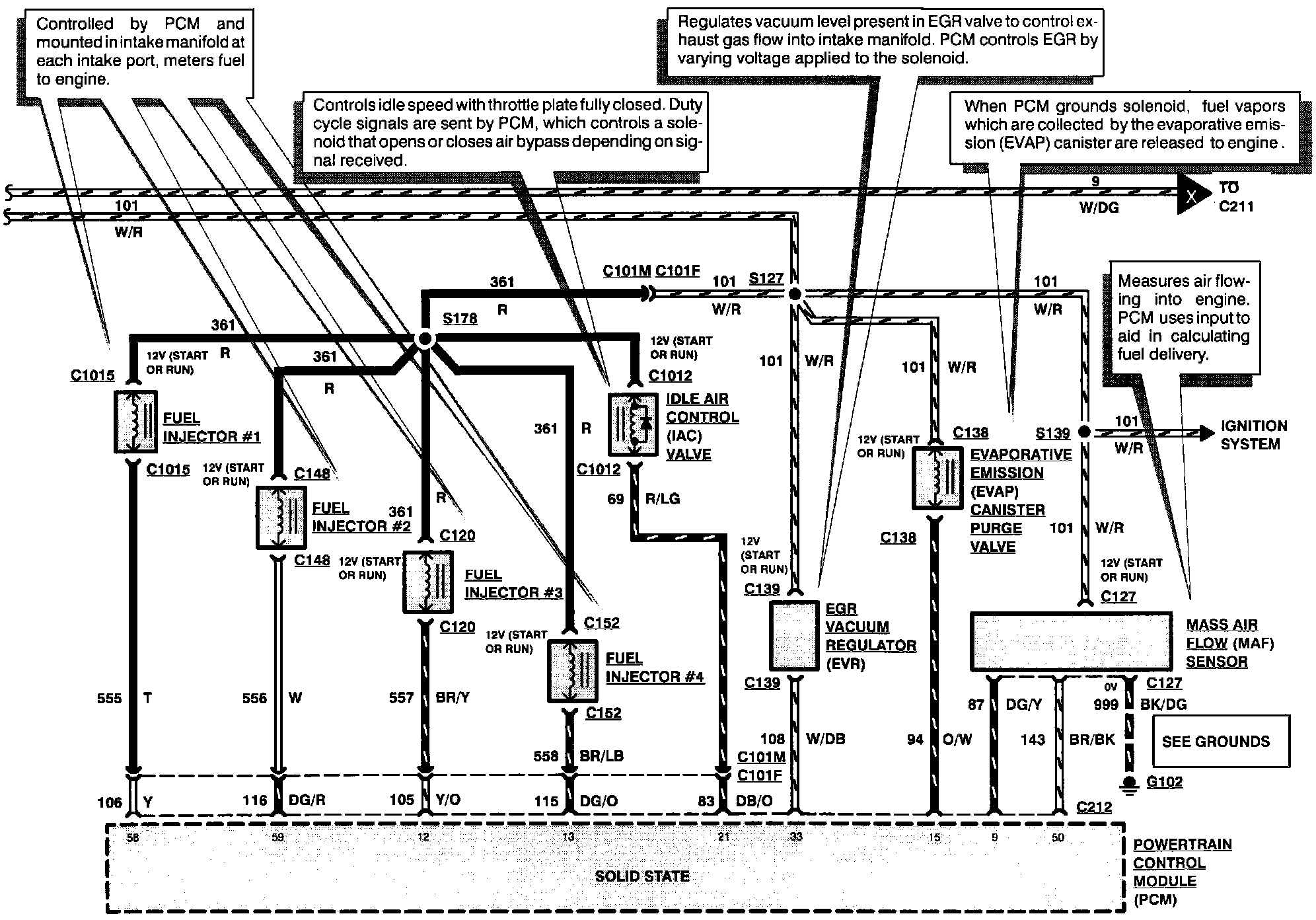

Engine Controls (Part 2 Of 6):

EVAPORATIVE EMISSION CANISTER PURGE VALVE
EGR VACUUM REGULATOR
FUEL INJECTORS
IDLE AIR CONTROL VALVE
MASS AIR FLOW SENSOR

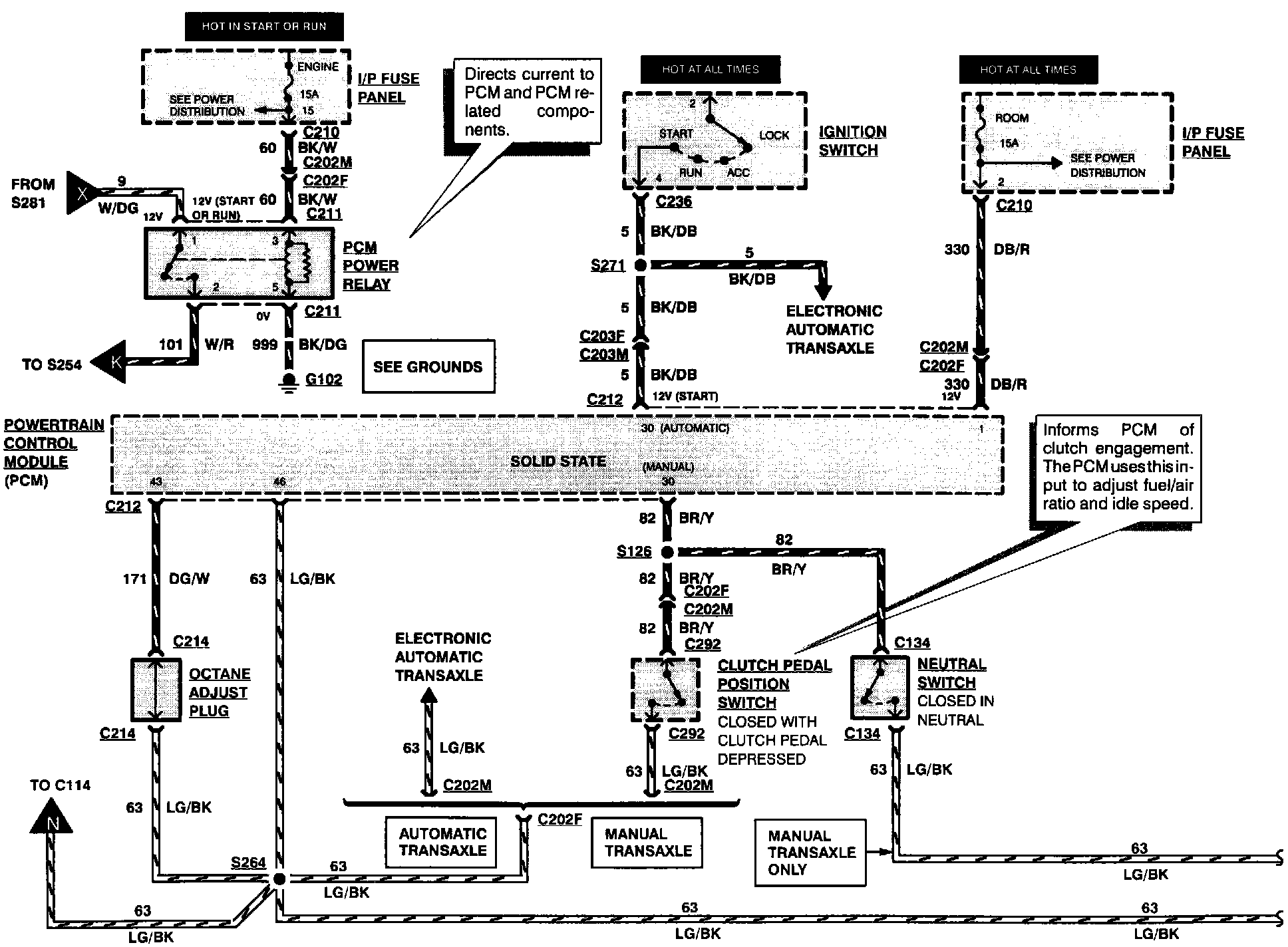

Engine Controls (Part 3 Of 6):

PCM POWER RELAY
NEUTRAL SWITCH
OCTANE ADJUST PLUG

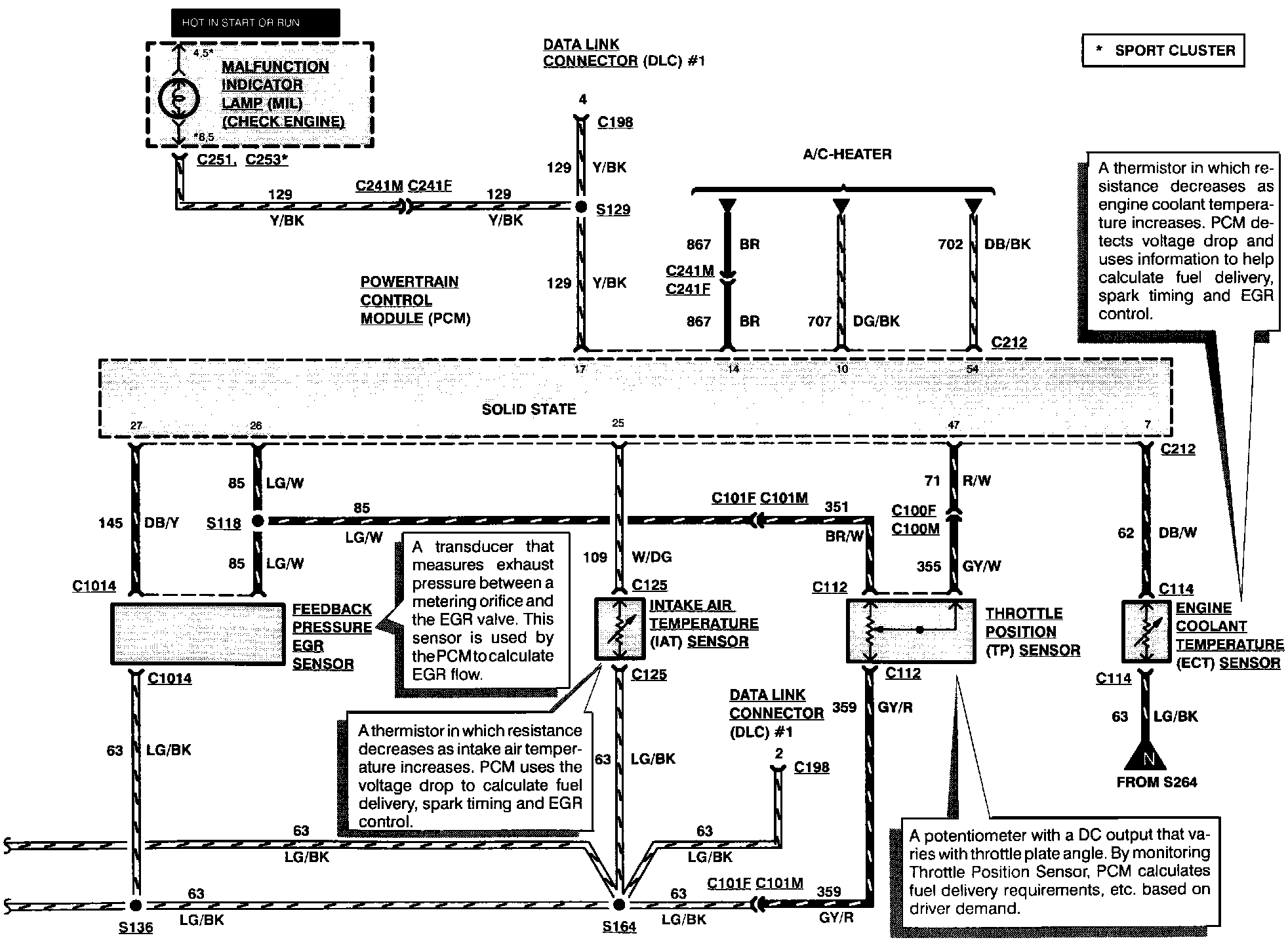

Engine Controls (Part 4 Of 6):

ENGINE COOLANT TEMPERATURE SENSOR
FEEDBACK PRESSURE EGR SENSOR
INTAKE AIR TEMPERATURE SENSOR
MALFUNCTION INDICATOR LAMP
THROTTLE POSITION SENSOR

Engine Controls (part 5 Of 6):

CAMSHAFT POSITION SENSOR
HEATED OXYGEN SENSOR
UPSHIFT INDICATOR

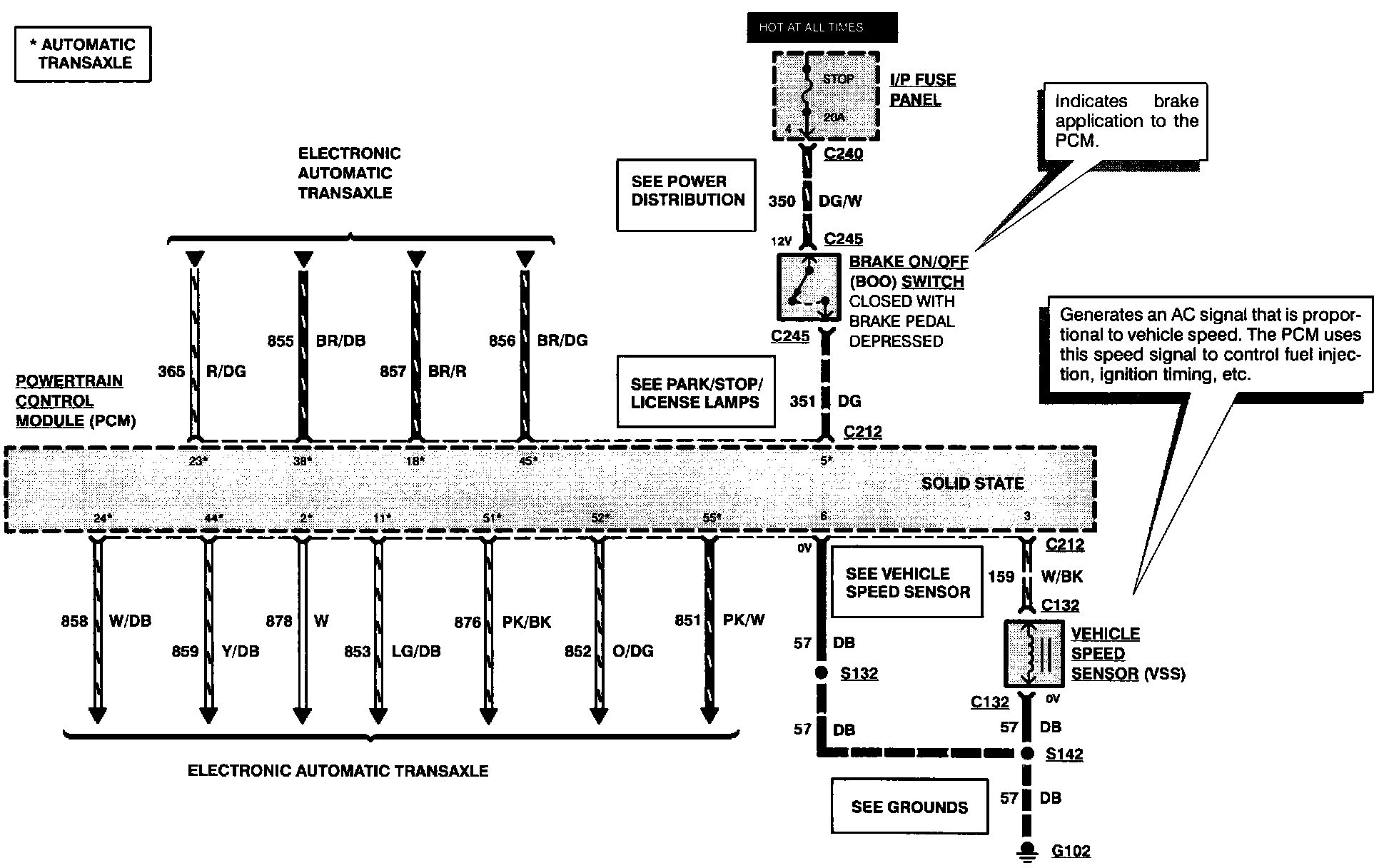

Engine Controls (Part 6 Of 6):

BRAKE ON/OFF SWITCH
VEHICLE SPEED SENSOR
