Engine Controls

FUEL PUMP
FUEL GAUGE SENDER
FUEL TANK SELECTOR SWITCH

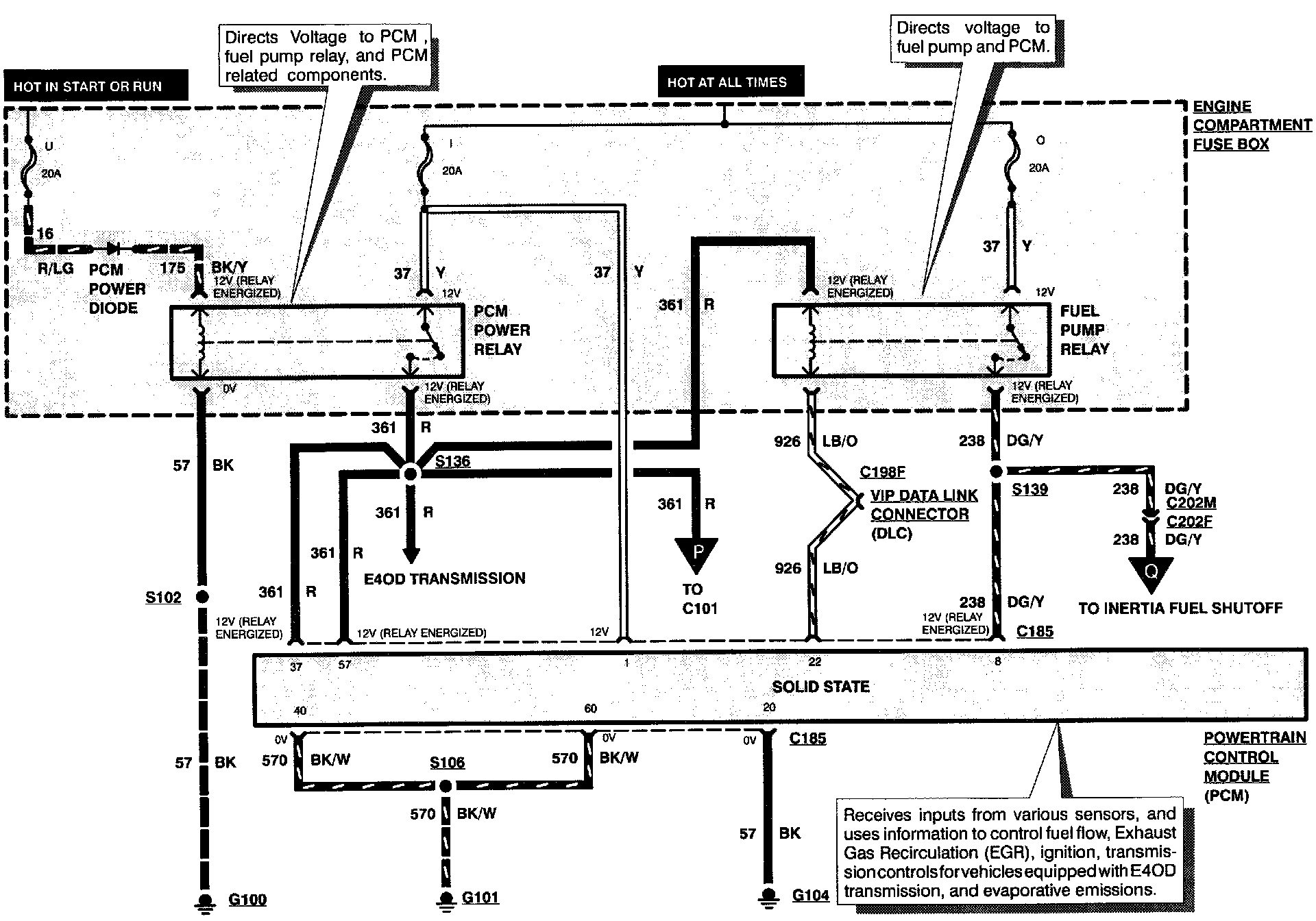

Engine Controls (Part 1 Of 6):

FUEL PUMP RELAY
PCM POWER DIODE
PCM POWER RELAY

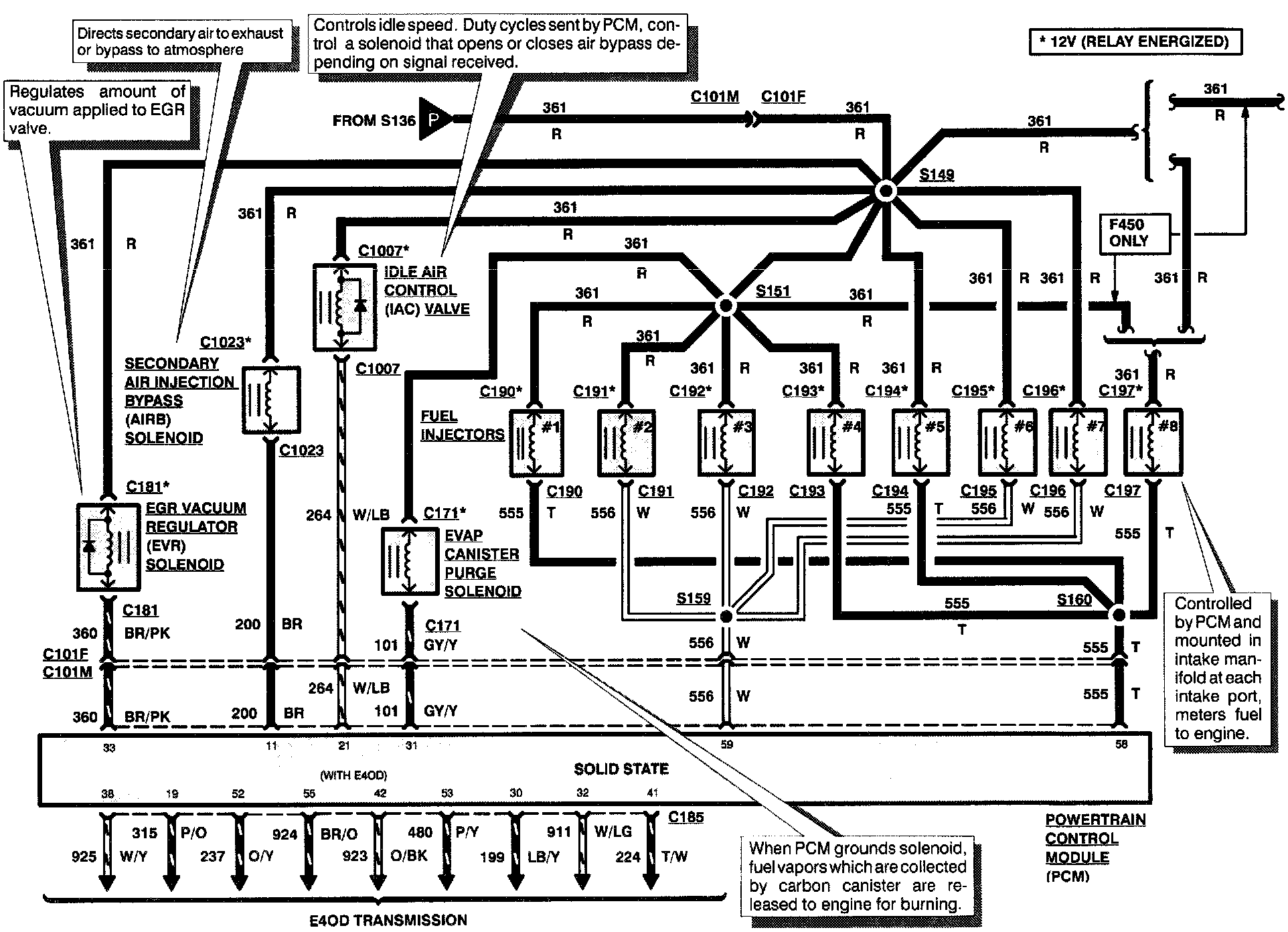

Engine Controls (Part 2 Of 6):

EGR VACUUM REGULATOR SOLENOID
EVAP CANISTER PURGE SOLENOID
FUEL INJECTORS
IDLE AIR CONTROL VALVE
SECONDARY AIR INJECTION BYPASS SOLENOID

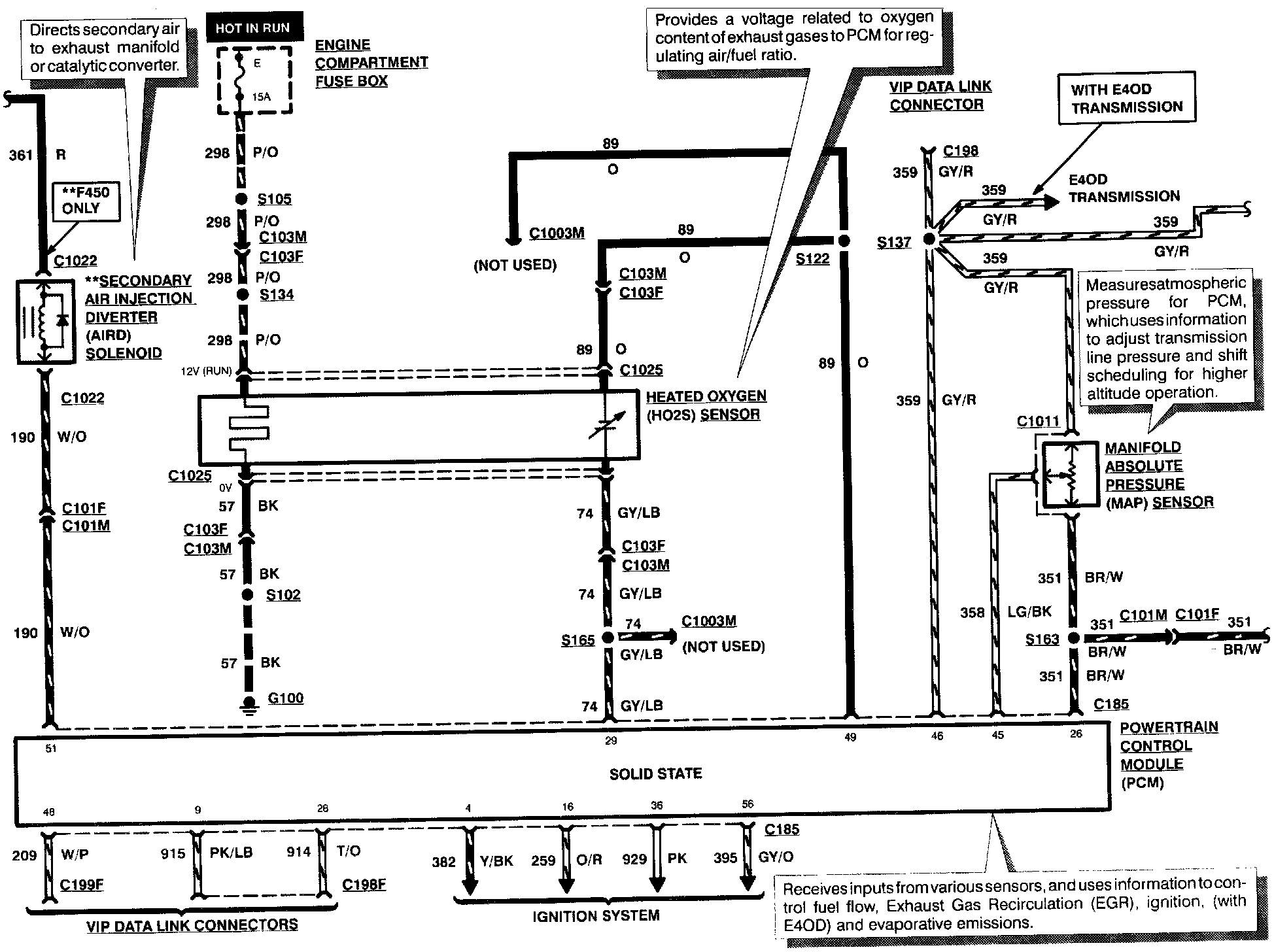

Engine Controls (Part 3 Of 6):

HEATED OXYGEN SENSOR
MANIFOLD ABSOLUTE PRESSURE SENSOR
SECONDARY AIR INJECTION DIVERTER SOLENOID

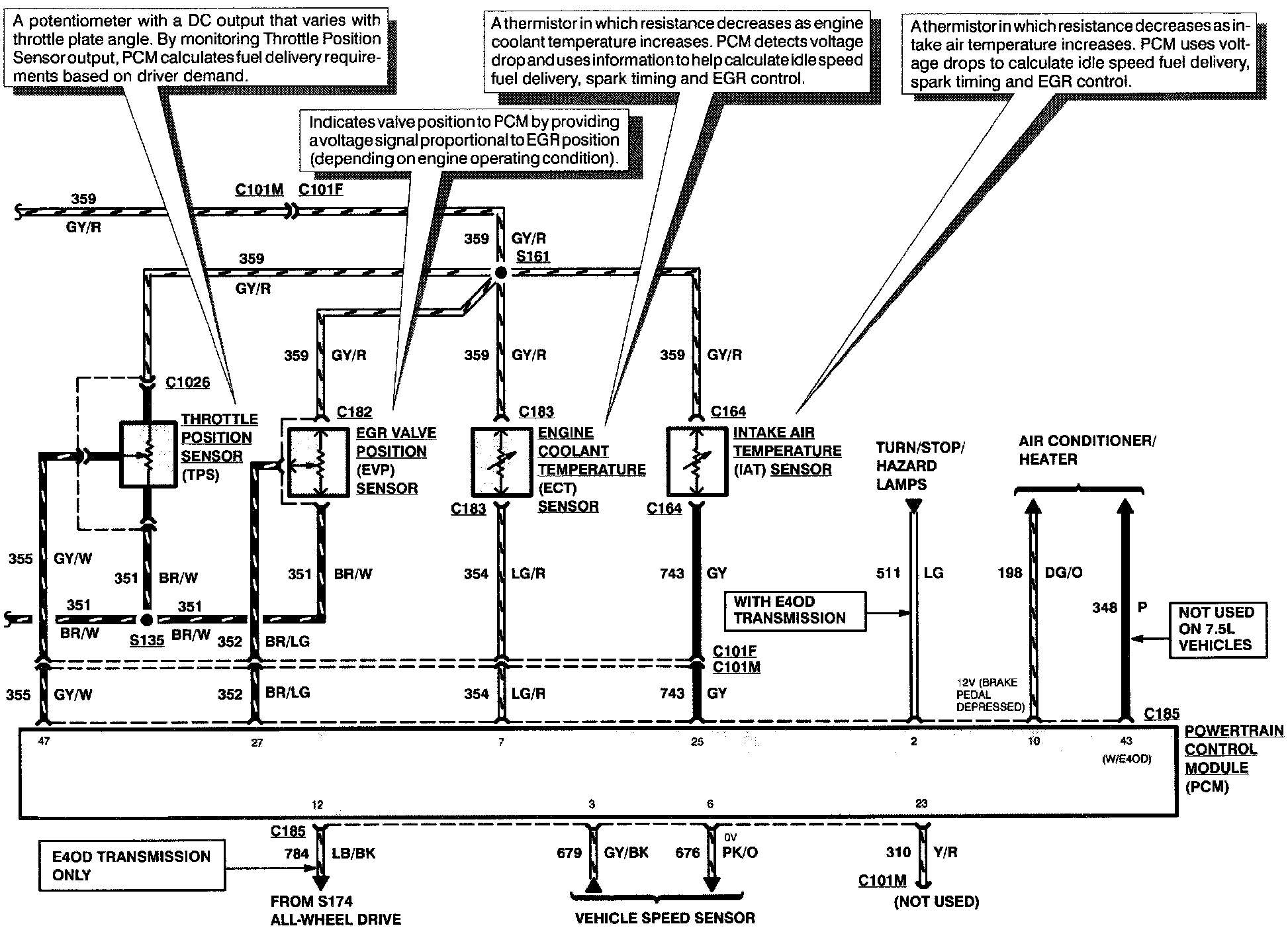

Engine Controls (Part 4 Of 6):

EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
THROTTLE POSITION SENSOR

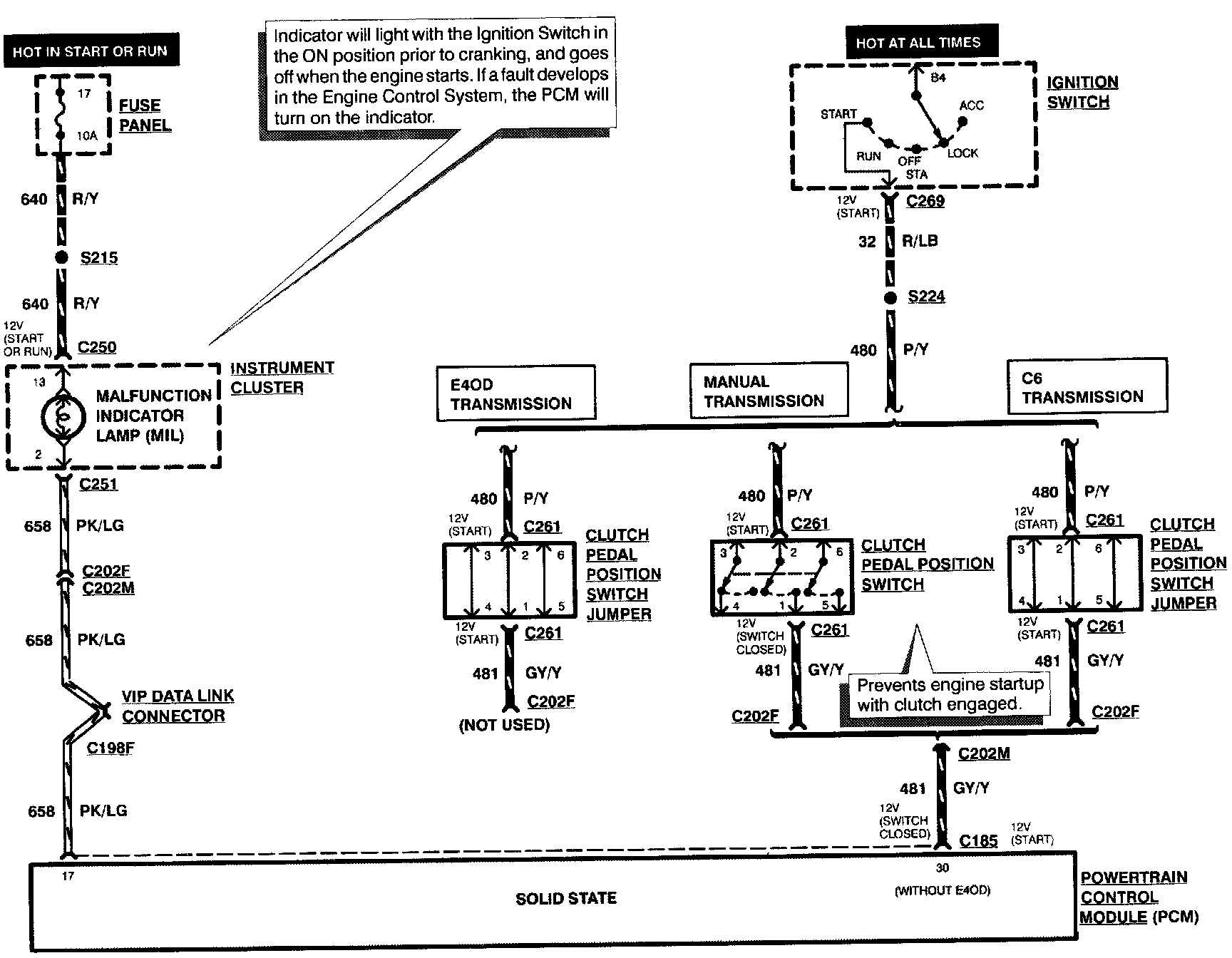

Engine Controls (Part 5 Of 6):

CLUTCH PEDAL POSITION SWITCH
CLUTCH PEDAL POSITION SWITCH JUMPER
MALFUNCTION INDICATOR LAMP

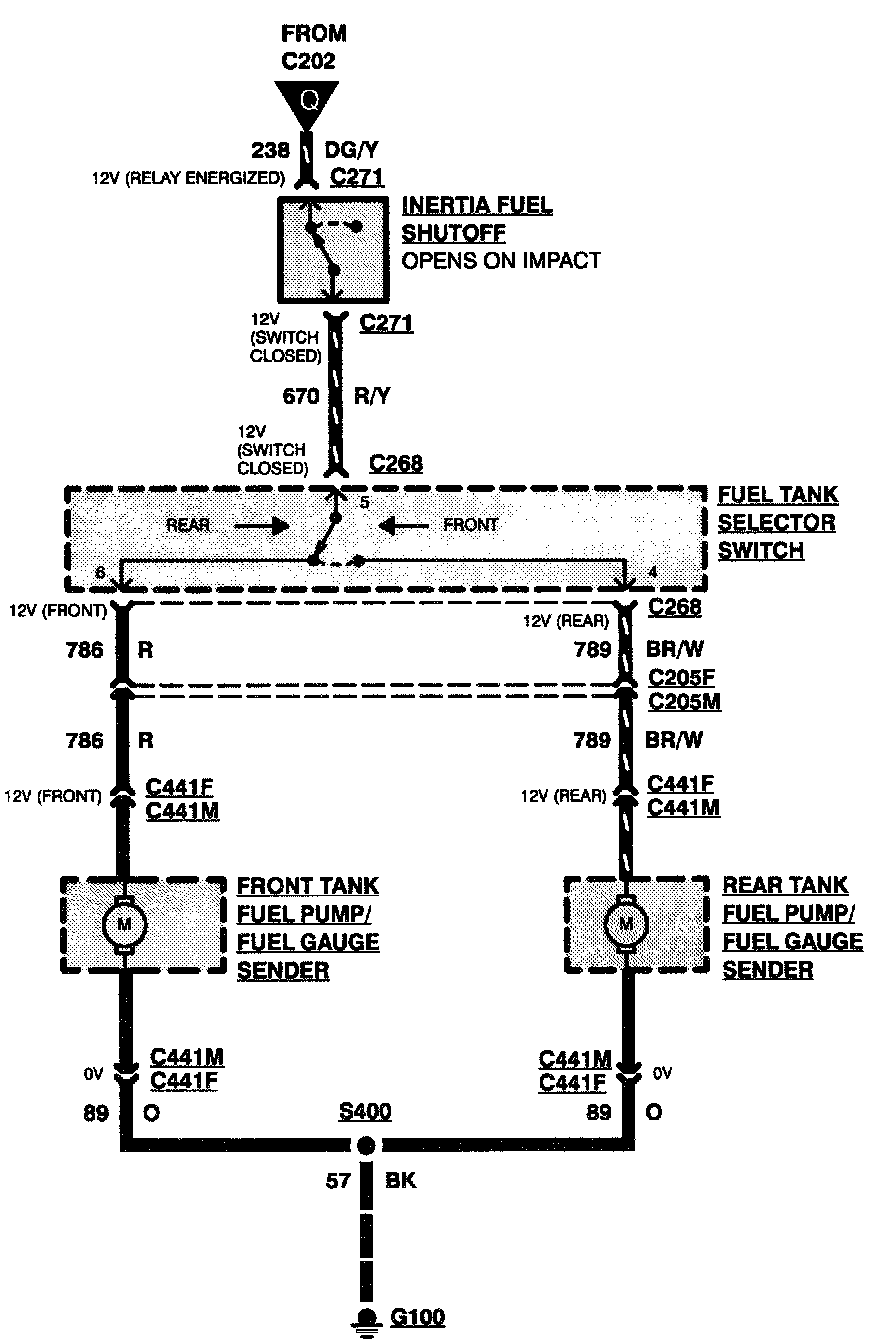

Engine Controls (Part 6 Of 6):

INERTIA FUEL SHUTOFF
