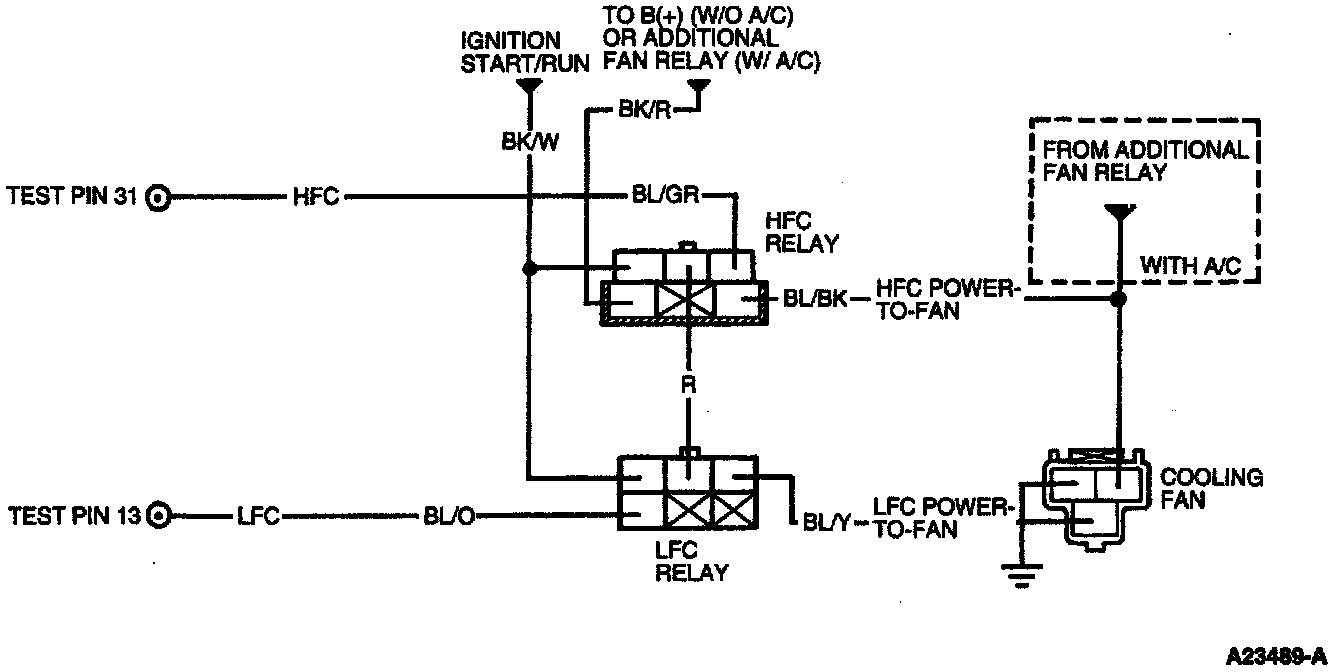

KF - Testing Schematic

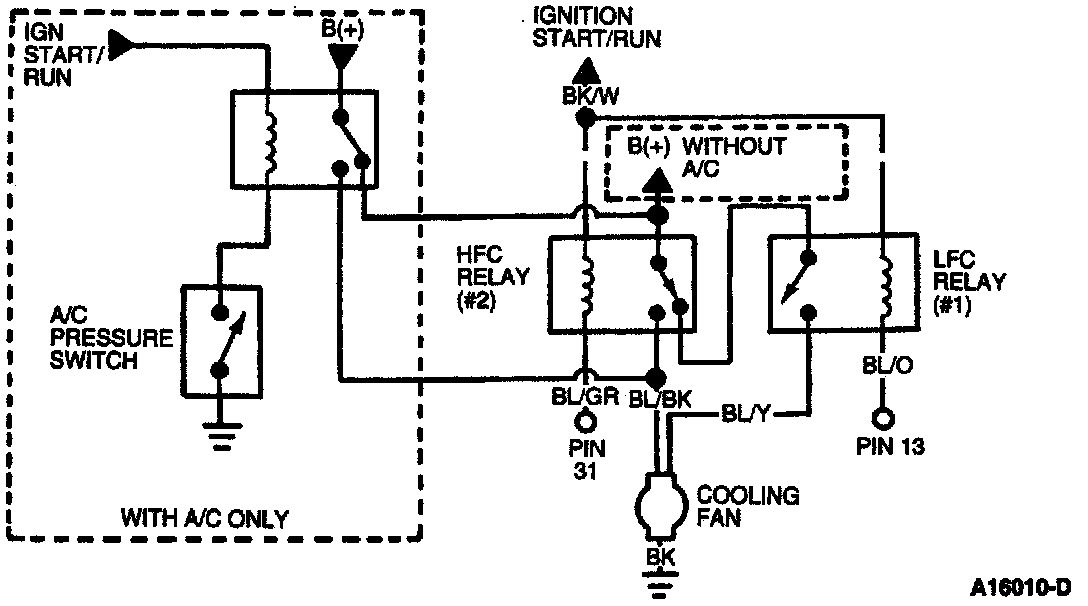

Fan Control Diagram:
BOTH FANS OFF LFC Pin 13
OFF
HFC Pin 31
OFF
LOW SPEED FAN ON LFC Pin 13
ON
HFC Pin 31
OFF
HIGH SPEED FAN ON LFC pin 13
OFF
HFC pin 31
ON
** Or ACPSW medium pressure contacts closed.
NOTE: "ON" indicates the
Powertrain Control Module is grounding the circuit.
