EGR Control Solenoid: Service and Repair

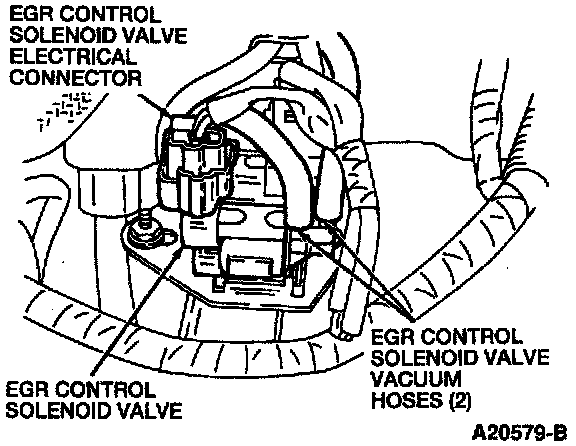

EGR Valve Control Solenoid:
REMOVAL ^
Disconnect the battery ground cable.
^
Raise and support the vehicle.
^
Disconnect the two vacuum hoses.
^
Disconnect the EGR control solenoid valve electrical connector.
^
Slide the EGR control solenoid valve off the mounting bracket.
INSTALLATION ^
To install, reverse the removal procedure.
